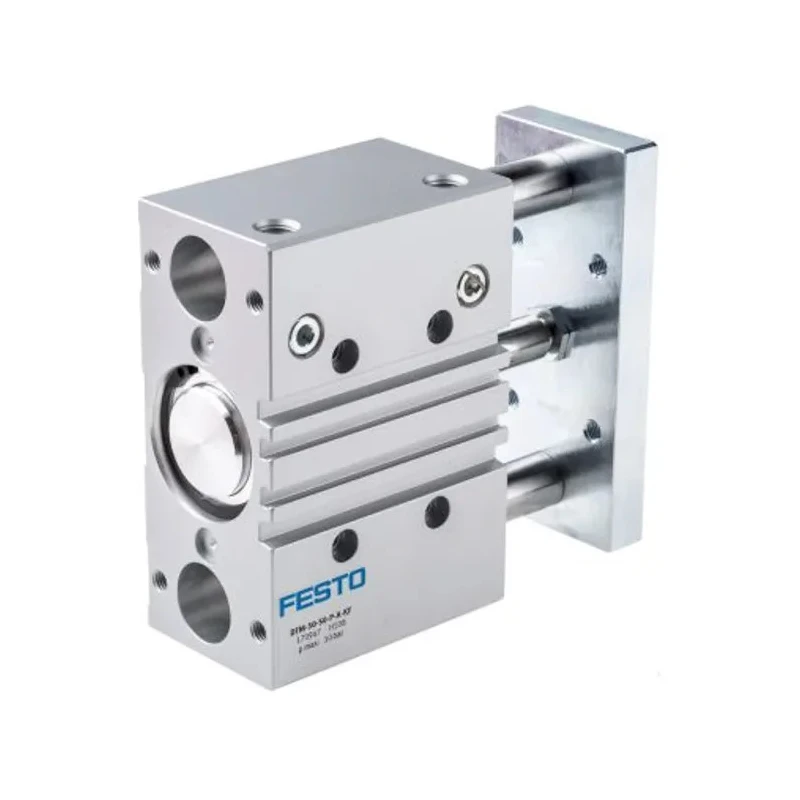

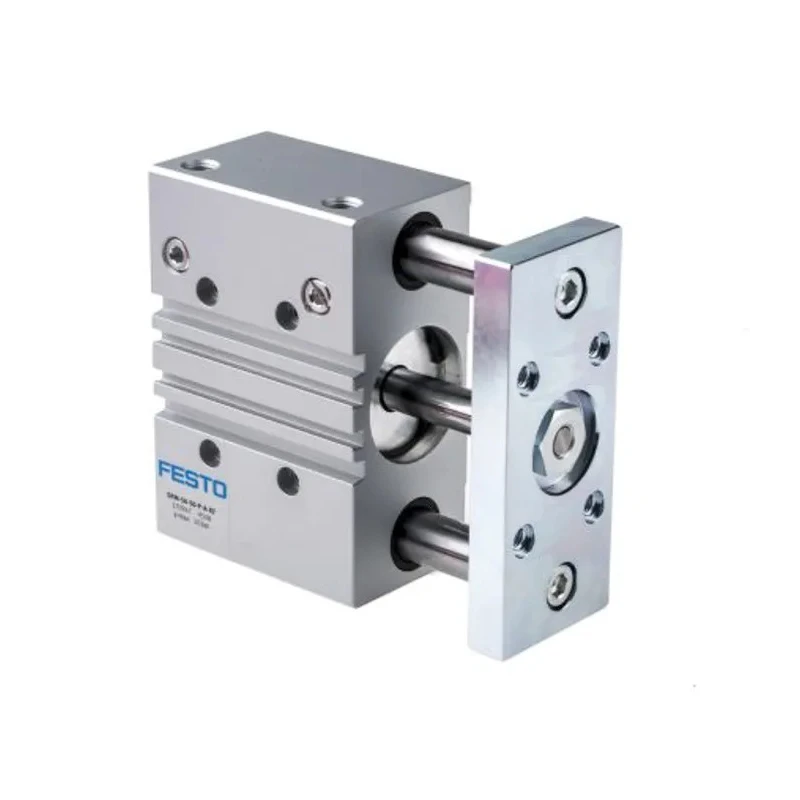

Festo Pneumatic Guided Cylinder 50mm Bore, DFM Series, 160mm Stroke, Double Acting, Through Hole Mount DFM-50-160-P-A-KF

Festo DFM-50-160-P-A-KF is a precision pneumatic guided cylinder with a 50mm bore and 160mm stroke length. This double acting cylinder integrates the drive and guide unit in a single aluminium housing, designed for demanding pneumatic applications requiring high load capacity and resistance to torque and lateral external forces. Its compact and stiff design includes guide rods with recirculating ball bearings for smooth and accurate guided motion, making it ideal for applications such as clamping, lifting, stopping, and material handling in industrial, manufacturing, and automation settings.

The cylinder features elastomer cushioning plates that minimize noise during operation and extend service life. With flexible air supply ports positioned on both the top and side, it allows easy and adaptable mounting. The sturdy construction uses materials including polyurethane, nitrile rubber (NBR), high alloy stainless steel, wrought aluminium alloy, and tempered steel, ensuring maintenance-free reliability and durability across a working temperature range from -5°C to 60°C.

Designed with integrated slots for proximity sensors, this guided cylinder supports precise linear motion measurement, critical for automation and control systems. The through hole mount type enhances installation flexibility. Operating under a maximum pressure of 10 bar and a maximum piston speed of 0.8 mm/s, it meets stringent quality and safety standards including ISO 1179-1, ISO 228-1, and RoHS compliance.

Manufactured in Germany, this pneumatic guided cylinder from Festo promises consistent performance and robustness required in fluid power and mechanical engineering applications. It effectively manages loads up to 150 kg, providing reliable clamping, lifting, and stopping capabilities.

Designed for pneumatic torque load applications with integrated ball bearing guides. Robust aluminium construction resists torque and lateral forces. Noise-reducing elastomer cushioning plates. Flexible mounting with ports on top and side.

Maintenance-free and wear resistant materials. Suitable for industrial automation and material handling. Integrated sensor slots for precise position sensing. Complies with international ISO and RoHS standards. Operating temperature from -5°C to 60°C, max pressure 10 bar.
