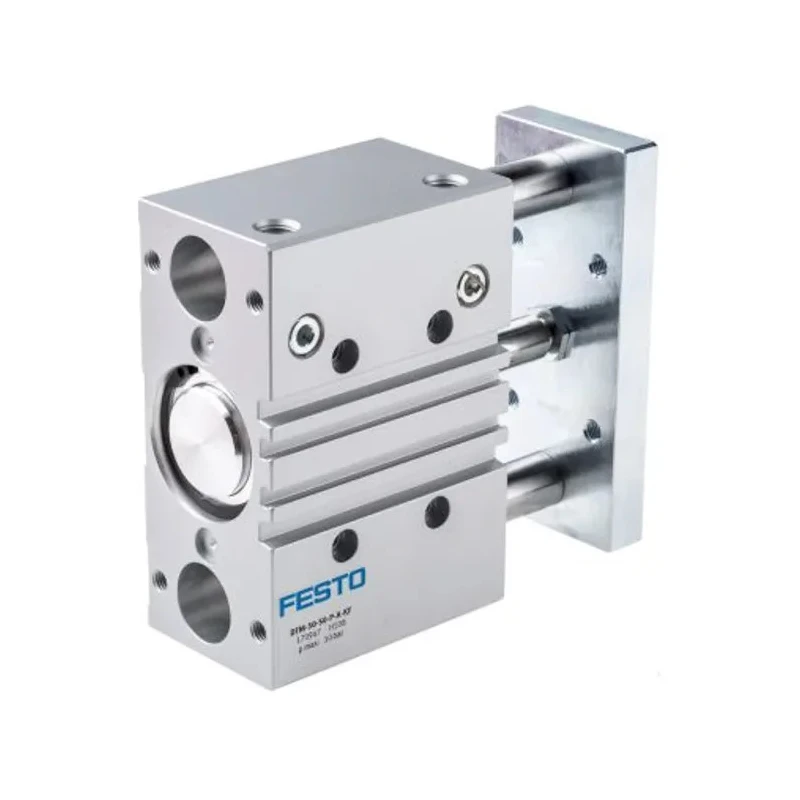

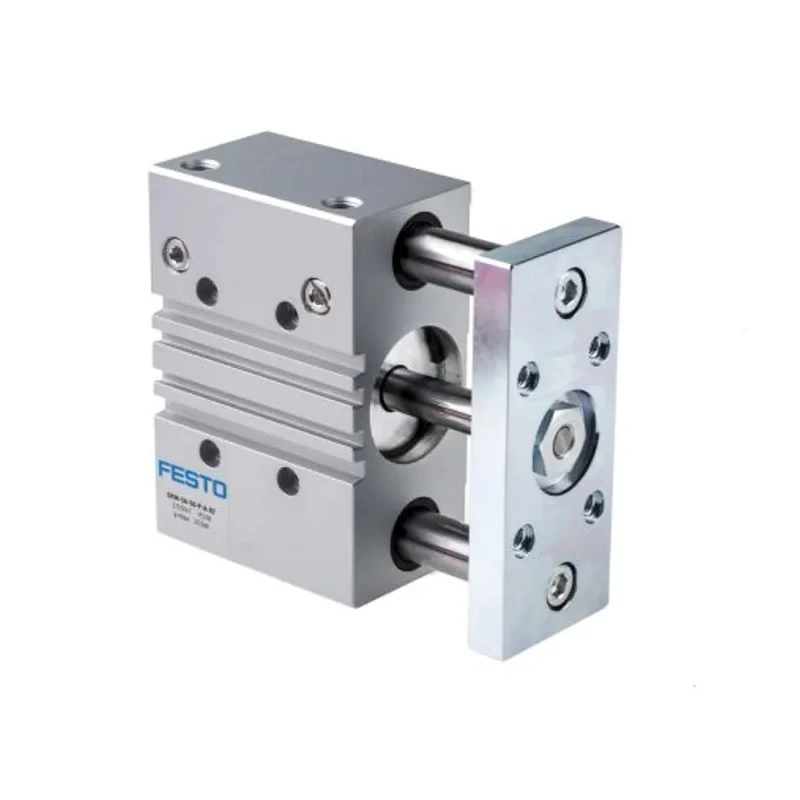

Festo Pneumatic Guided Cylinder 63mm Bore, 125mm Stroke, Double Acting, Through Hole Mount, 10 bar DFM-63-125-P-A-KF

Festo DFM-63-125-P-A-KF Pneumatic Guided Cylinder is a double acting actuator with a 63mm bore and 125mm stroke. This high-precision cylinder integrates the drive and guide functions into one maintenance-free aluminium housing, providing excellent resistance to torque and lateral forces. It is engineered for demanding pneumatic applications requiring robust and reliable performance under torque loads.

The internal recirculating ball bearings ensure smooth guided movements ideal for clamping, lifting, stopping, and material handling tasks in industrial, manufacturing, and automation settings. Flexible cushioning plates help reduce noise and enhance the cylinder's service life. The unit offers flexible installation options with air supply ports positioned on both the top and side.

The cylinder operates reliably within a temperature range of -5°C to 60°C and supports a maximum operating pressure of 10 bar. Its rod features a guide rod with yoke design, combined with ball and plain bearings, delivering precision and durability. The DFM series meets ISO 228-1 and ISO 1179-1 standards, and is RoHS compliant. Designed and manufactured in Germany, this model weighs 7.9 kg and measures 259 mm in length, 162 mm in width, and 78 mm in height.

Common industrial applications include clamping heavy components securely for processing, dynamic and powerful lifting of loads, and safe stopping of loads up to 150 kg. Integrated mounting features enable the incorporation of proximity sensors to detect piston position accurately, aiding in automation and control tasks.

The cylinder combines drive and guide units in one integrated housing for compactness and rigidity. Recirculating ball bearings support high torque load applications with minimized wear. Flexible cushioning reduces operational noise and extends service life.

Dual air supply ports allow for flexible and convenient cylinder positioning. Maintenance-free aluminium body ensures high resistance to external lateral forces.

This Pneumatic Guided Cylinder is suitable for use in industrial automation, manufacturing plants, material handling systems, and pneumatic machinery environments. It offers a reliable and efficient solution for precision actuation under demanding conditions. For detailed technical and purchasing information, visit the relevant category pages on EnvMart.
