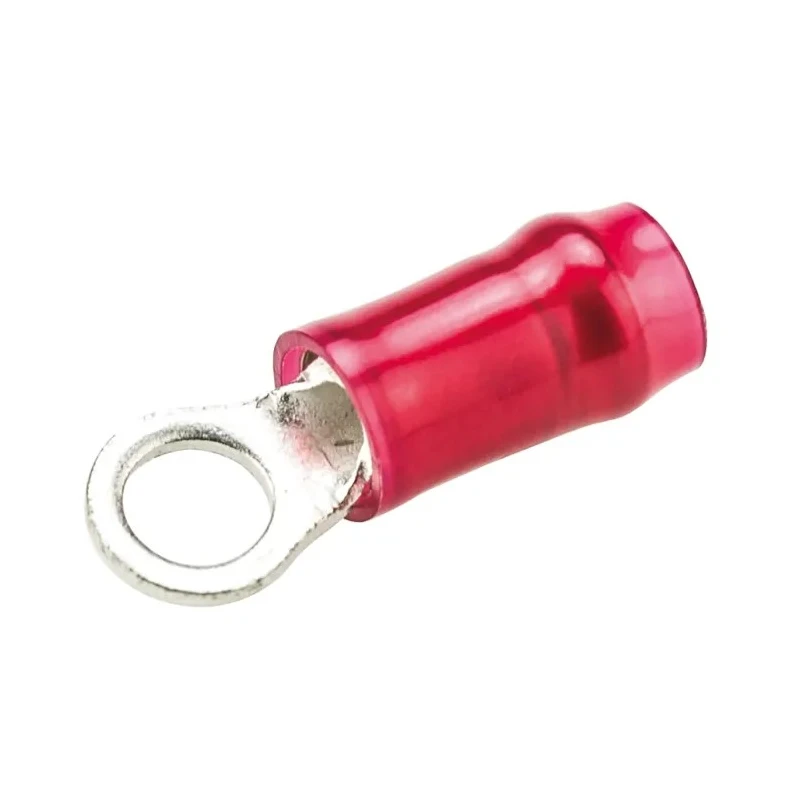

RS PRO PIDG Insulated Ring Terminal M3.5 Stud Size 22 AWG to 16 AWG Wire Size Red 36150
Specifications
| Country of Origin | United States |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 36150 |
| Insulation | Insulated |
| Overall Length | 17.07mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 5.54mm |
| Inner Ring Diameter | 3.68mm |
| Stud Size | M3.5 |
| RS PRO Insulated Ring Terminal, M3.5 Stud Size 22 AWG 16 AWG Wire Size, RedBrand | RS PRO |
Key Features
- Features a high conductivity copper body for reliable electrical performance.
- Equipped with a nylon insulated red sleeve for easy wire size identification.
- Copper sleeve in wire barrel improves insulation support and prevents wire fraying.
- Designed with serrations in the barrel for strong contact and tensile strength after crimping.
- Funnelled wire entry enables quick and reliable wire insertion during production.
- Suitable for a wide range of industrial and aerospace wiring applications.
- Meets or exceeds requirements of MIL-T-7928 Type II, Class 1 and 2 for reliability.
- Operates reliably up to a maximum temperature of 105°C.
Product Description
TE Connectivity 36150 PIDG insulated ring terminal is engineered for dependable electrical connections in various industrial and commercial settings. This terminal features a precision-formed copper body with tin plating that enhances conductivity and corrosion resistance. The ring terminal has an M3.5 stud size suitable for secure mounting and accepts wire sizes between 22 AWG and 16 AWG, fitting common wiring requirements.
The terminal's barrel incorporates serrations to maximize contact and tensile strength upon crimping, ensuring a durable and consistent connection. A copper sleeve inside the barrel improves wire insulation support and prevents frayed strands, enhancing safety and connection stability. The outer red nylon insulation sleeve facilitates quick visual identification of wire size and appropriate tool selection.
The funnelled wire entry design prevents wire strand turn-back, enabling efficient, high-speed wire insertion processes suitable for production environments. These terminals comply with military standard MIL-T-7928, Type II, Class 1 and 2, demonstrating robustness for demanding environments including aerospace, transportation, control instrumentation, and power supply applications.
The operating temperature rating up to 105°C ensures reliable performance under elevated temperatures typically encountered in electrical and electronic assemblies. This combination of materials and design features provides a versatile and reliable solution for electrical wiring terminals.
High conductivity copper body with tin plating. Red nylon insulated sleeve for wire size identification. Copper wire barrel sleeve to prevent fraying and support insulation. Serrated barrel ensures strong electrical contact and mechanical strength.
Funnelled entry enables fast and reliable wire insertion. Complies with MIL-T-7928 Type II standards. Suitable for industrial, aerospace, transportation, and electrical applications. Maximum operating temperature of 105°C.
Explore more high-quality Ring Terminals and power connectors in EnvMart’s comprehensive electronics category for reliable wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accepts wire sizes between 22 AWG and 16 AWG, accommodating common wiring requirements.
It operates reliably up to a maximum temperature of 105°C, suitable for elevated temperature environments.
The contact material is copper, which is precision-formed and tin-plated to enhance conductivity and corrosion resistance.
The stud size for this terminal is M3.5, allowing for secure mounting.
The overall length of this model is 17.07 mm.
The barrel incorporates serrations to maximize contact and tensile strength after crimping, ensuring a strong electrical connection.
It features a nylon insulation sleeve, which aids in wire size identification and enhances safety.
Yes, it complies with military standard MIL-T-7928, Type II, Class 1 and 2, demonstrating reliability in demanding environments.
The inner ring diameter is 3.68 mm, and the outer ring diameter is 5.54 mm.
The funnelled wire entry design prevents wire strand turn-back, enabling efficient and fast wire insertion during production.
It is suitable for a wide range of industrial and aerospace wiring applications, including transportation and control instrumentation.
The thickness of this insulated ring terminal is 0.79 mm.
