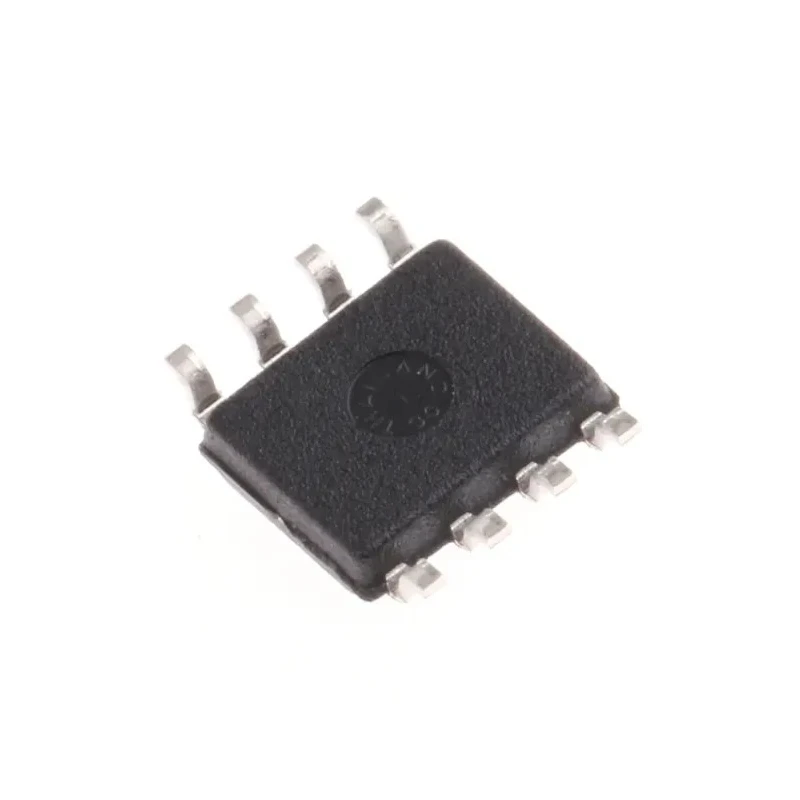

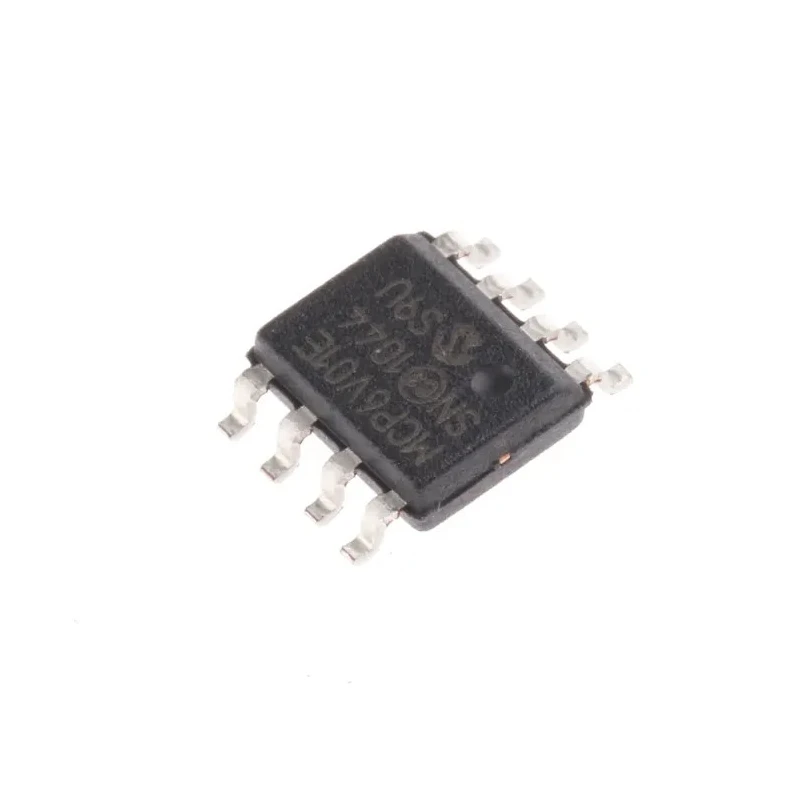

Microchip Operational Amplifier, 1.3 MHz Gain Bandwidth, 8-Pin SOIC, 3V to 5.5V MCP6V01-E/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | MCP6V01-E/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP6V01 |
| Output Current | 30mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1.3MHz |
| Input Bias Current | 1 pA |
| Slew Rate | 0.5V/μs |
| Input Offset Current | -30 pA |
Key Features
- Surface mount type and SOIC package ensure compact PCB integration.
- Single channel operational amplifier designed for precision applications.
- Low input bias current of 1 picoampere enhances signal accuracy.
- Wide operating temperature range from -40°C to 125°C suits automotive and industrial uses.
- Input offset voltage of 2 microvolts minimizes error in output signals.
- Slew rate of 0.5 V/μs allows moderate speed signal processing.
- Maximum output current rated at 30 mA supports various load requirements.
- Compliant with RoHS and automotive standard AEC-Q100 for quality assurance.
Product Description
Microchip MCP6V01-E/SN Operational Amplifier is a precision, single-channel op amp with a gain bandwidth of 1.3 MHz, delivered in a compact 8-pin SOIC surface mount package. It operates with a supply voltage range of 3V to 5.5V, making it suitable for a wide range of applications in automotive, industrial, and consumer electronics.
This amplifier features a very low input bias current of 1 pA, which enhances signal fidelity and accuracy in sensitive circuits. The input offset voltage of 2 μV and low input offset current (-30 pA) further improve precision.
The MCP6V01-E/SN provides a moderate slew rate of 0.5 V/μs, allowing adequate speed for many analog signal processing applications. It can source a maximum output current of 30 mA, enabling it to drive low impedance loads effectively.
Its robust operating temperature range from -40°C to 125°C, combined with compliance to the automotive standard AEC-Q100 and RoHS directive, assures reliability in demanding environments.
The device dimensions are compact, with a height of 1.25 mm, length of 4.9 mm, and width of 3.9 mm, suitable for space-constrained PCB designs and automated assembly via its surface mount SOIC package.
Surface mount SOIC package for efficient PCB layout. Single channel for precise amplification. Input bias current of 1 pA enhances low-signal accuracy. Wide temperature range supports automotive and industrial environments.
Low offset voltage and current reduce signal errors. Slew rate of 0.5 V/μs suitable for moderate speed amplifier applications. Output current capability of 30 mA drives various loads. Meets RoHS and AEC-Q100 automotive quality standards.
Compact physical size for high-density designs.
This Operational Amplifier is ideal for use in industrial control systems, automotive electronics, instrumentation, and other precision signal processing tasks requiring reliable performance over wide temperature ranges.
Explore the EnvMart selection of Microchip semiconductor components for robust and high-quality amplification solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.3 MHz, suitable for various precision applications.
It operates with a supply voltage range of 3V to 5.5V, making it versatile for different applications.
The maximum output current is rated at 30 mA, allowing it to drive low impedance loads effectively.
This model features a very low input bias current of 1 picoampere, enhancing signal accuracy.
The input offset voltage is 2 microvolts, which minimizes error in output signals.
It has a wide operating temperature range from -40°C to 125°C, suitable for automotive and industrial applications.
The slew rate is 0.5 V/μs, allowing for moderate speed signal processing.
This operational amplifier is packaged in an 8-pin SOIC surface mount format, facilitating compact PCB integration.
It complies with the automotive standard AEC-Q100, ensuring quality for automotive applications.
The dimensions are 1.25 mm in height, 4.9 mm in length, and 3.9 mm in width, making it suitable for high-density designs.
The input offset current is -30 picoamperes, which contributes to its precision in signal processing.
Yes, this operational amplifier is compliant with the RoHS directive, ensuring it meets environmental standards.
