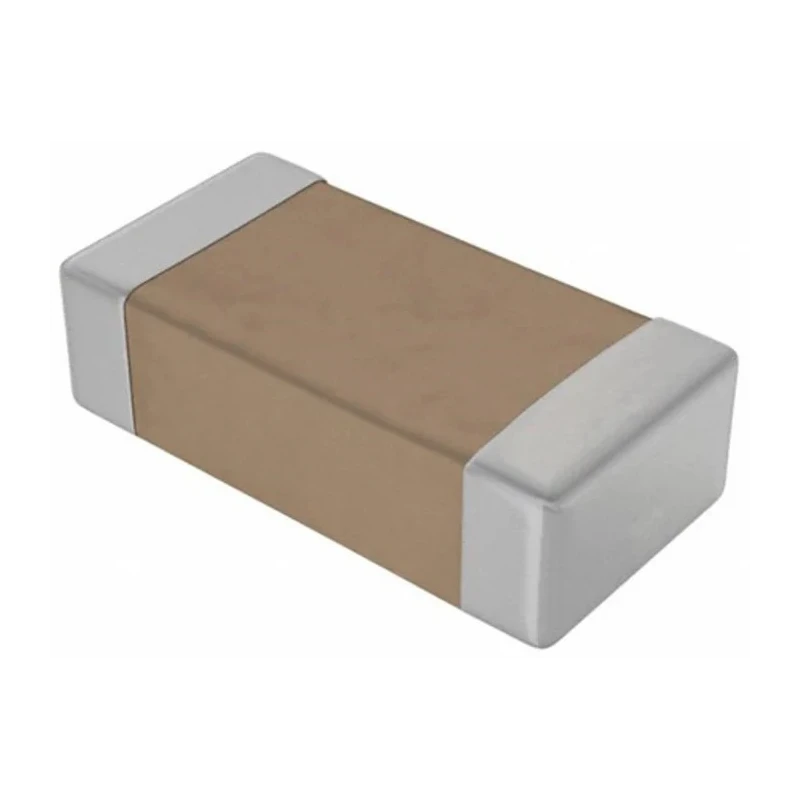

KYOCERA AVX 150 pF 50V dc ±5 % Tolerance Multilayer Ceramic Capacitor Surface Mount 12065A151JAT2A

KYOCERA AVX model 12065A151JAT2A is a multilayer ceramic capacitor with a capacitance of 150 pF, rated at 50V dc and ±5 % tolerance, designed for surface mount technology. It utilizes a C0G dielectric class I material, which is renowned for its exceptional stability and minimal capacitance variation over temperature ranges.

This capacitor is encapsulated in a 1206 package, dimensions 3.2mm length, 1.6mm width, and 0.94mm height, making it suitable for compact and space-sensitive electronic assemblies. With a temperature operation range from -55°C to +125°C, it suits various industrial, electronics manufacturing, and commercial applications requiring reliable performance.

The device is supplied on reels designed for efficient automatic placement in manufacturing lines. The termination type is surface mount, conforming to modern PCB assembly standards. The KGM series denotes a product optimized for electrical stability under varying environmental conditions.

This capacitor's Class I dielectric (C0G/NPO) offers capacitance change with temperature of approximately 0 ±30 ppm/°C, translating to high precision applications with less than ±0.3% change from -55°C to +125°C. It is not automotive rated but fits industrial electronics, laboratory instruments, communication equipment, and other precision devices.

Dimensions and footprint enable easy integration in multilayer PCBs requiring stable capacitance. Packaging by reel facilitates bulk automation in industrial production. Key features include a stable dielectric, wide operating temperature range, precise tolerance, and suitability for surface mount technology.

Features a 1206 package size suitable for compact circuit designs. Utilizes stable C0G dielectric (Class I) ensuring minimal capacitance change with temperature. Operates reliably in temperatures ranging from -55°C to 125°C.

Offers surface mount termination and is supplied on a reel for manufacturing efficiency. Height, length, and width dimensions are 0.94mm, 3.2mm, and 1.6mm respectively. Part of the KGM series, optimized for electrical stability and durability.

Non-automotive standard product ideal for electronic component applications. Tolerance of ±5 % ensures precise capacitance values for sensitive electronic circuits. Explore more multilayer ceramic capacitors and other Passive Components on EnvMart for your electronic designs and manufacturing needs.
