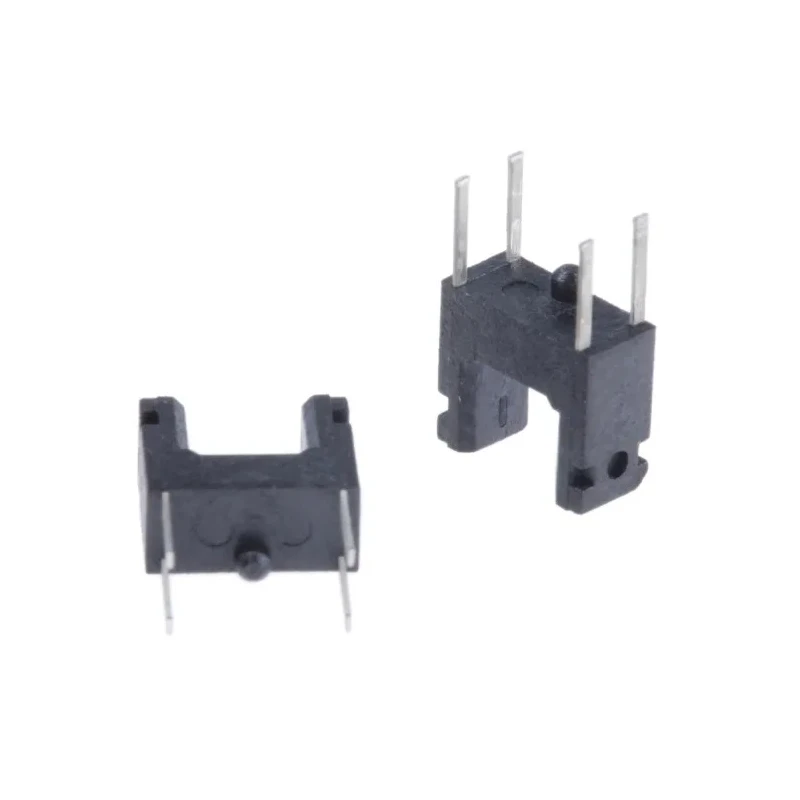

Sharp Through Hole Slotted Optical Switch Phototransistor Output 3mm Slot Width GP1S094HCZ0F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sharp |
| Height | 4.8mm |
| Length | 5.5mm |
| Model | GP1S094HCZ0F |
| Packaging | Sleeve |
| Width | 2.6mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 85°C |
| Package Type | Pin |
| Minimum Operating Temperature | -25°C |
| Slot Width | 3mm |
| Number Of Channels | 1 |
| Output Device | Phototransistor |
| Standards/Approvals | RoHS |
| Number of Pins | 4 |
| Typical Rise Time | 50μs |
Key Features
- Through hole mount type suitable for PCB insertion.
- Typical rise and fall times of 50 microseconds ensure responsiveness.
- Compact package dimensions of 5.5mm length, 4.8mm height, and 2.6mm width.
- Operating temperature range from -25°C to maximum 85°C for robust performance.
- Equipped with positioning pin to prevent misalignment during installation.
- Constructed with a vertical slit for accurate alternate motion detection.
- Packaged in a sleeve with 4-pin pin-type package.
- RoHS compliant for environmental safety.
Product Description
Sharp GP1S094HCZ0F Through Hole Slotted Optical Switch with Phototransistor Output is designed for detecting object presence or motion with high precision. It provides reliable performance in industrial, electronic component, and automation applications.
This Slotted Optical Switch features a vertical slit configuration to enable alternate motion detection, enhancing sensing accuracy on conveyor belts, packaging machinery, and position sensors.
The device is mounted through hole with a pin-type package design incorporating a positioning pin for preventing misalignment during PCB mounting, ensuring stability and repeatability in operation.
Operating efficiently across a temperature range of -25°C to 85°C, it is suited for demanding industrial environments where durability and longevity are required. The phototransistor output grants sensitive and fast optical signal detection with typical rise and fall times of 50μs.
With compact dimensions of 5.5mm length, 4.8mm height, and 2.6mm width alongside a 3mm slot width, the switch fits compact designs without compromising functionality. Through hole mount type suitable for PCB insertion. Typical rise and fall times of 50 microseconds ensure responsiveness.
Compact package dimensions of 5.5mm length, 4.8mm height, and 2.6mm width. Operating temperature range from -25°C to maximum 85°C for robust performance. Equipped with positioning pin to prevent misalignment during installation.
Constructed with a vertical slit for accurate alternate motion detection. Packaged in a sleeve with 4-pin pin-type package. RoHS compliant for environmental safety.
This switch is commonly used in industrial automation, manufacturing conveyors, electronic assembly, and motion detection applications. Its precise optical sensing capability makes it ideal for reliable object presence detection in various commercial and industrial equipment.
Explore our extensive range of Sharp sensors and optical components on EnvMart for enhanced production efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for the Sharp GP1S094HCZ0F is from -25°C to a maximum of 85°C.
This model has compact dimensions of 5.5mm in length, 4.8mm in height, and 2.6mm in width.
The GP1S094HCZ0F features a phototransistor output, which allows for sensitive optical signal detection.
It has typical rise and fall times of 50 microseconds, ensuring quick responsiveness.
The slot width of the Sharp GP1S094HCZ0F is 3mm, designed for precise motion detection.
This model is designed for through hole mounting, making it suitable for PCB insertion.
It is packaged in a sleeve with a 4-pin pin-type package for easy installation.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
This switch is commonly used in industrial automation, manufacturing conveyors, electronic assembly, and motion detection applications.
Yes, it is equipped with a positioning pin to prevent misalignment during installation, ensuring stability.
The GP1S094HCZ0F has one channel for detecting object presence or motion.
The Sharp GP1S094HCZ0F is manufactured in India.
