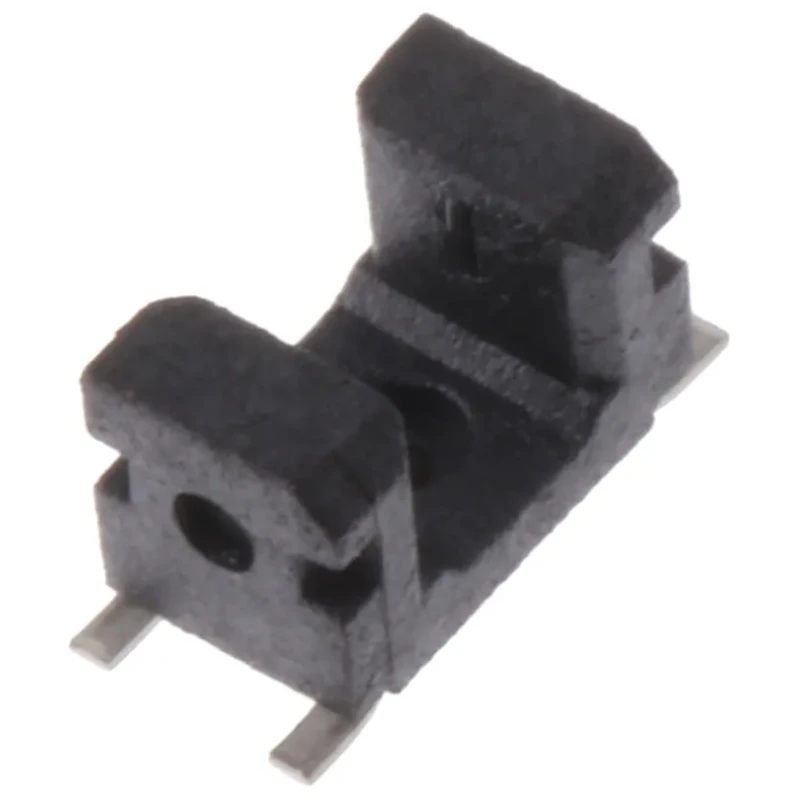

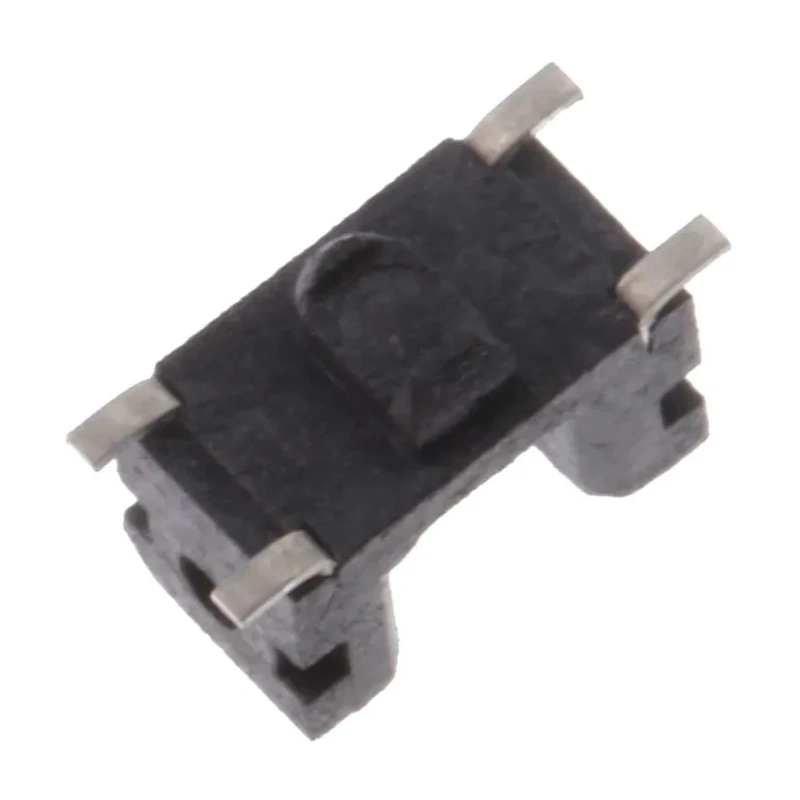

Sharp Surface Slotted Optical Switch Phototransistor Output GP1S092HCPIF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sharp |
| Height | 2.9mm |
| Length | 2.6mm |
| Model | GP1S092HCPIF |
| Packaging | Tape and Reel |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | GP1S092HCPIF |
| Maximum Operating Temperature | 85°C |
| Package Type | SMD |
| Minimum Operating Temperature | -25°C |
| Slot Width | 2mm |
| Number Of Channels | 1 |
| Output Device | Phototransistor |
| Standards/Approvals | RoHS |
| Number of Pins | 4 |
| Typical Rise Time | 50μs |
Key Features
- Utilizes a phototransistor output for efficient signal detection.
- Features a surface mount package suitable for automated PCB assembly.
- Operates reliably within temperatures ranging from -25°C to 85°C.
- Compact dimensions with 4 pins and a 2mm slot width for precise sensing.
- Comes packaged in tape and reel for streamlined manufacturing integration.
- Vertical slit design enables alternate motion detection.
- Positioning pin prevents misalignment during mounting.
- Designed to comply with RoHS environmental standards.
Product Description
Sharp GP1S092HCPIF Surface Slotted Optical Switch with Phototransistor Output is engineered for general-purpose detection of object presence and motion in industrial and electronic applications. The device is housed in a compact surface mount package measuring 4.5mm width, 2.6mm length, and 2.9mm height, making it ideal for space-constrained circuit boards.
It features a vertical slit for detecting alternate motion and incorporates a positioning pin to avoid misalignment during assembly, enhancing reliability in manufacturing environments. With a slot width of 2mm and 4 pins, the switch is designed for precise optical sensing tasks.
The switch supports operation over a temperature range from -25°C to 85°C, suitable for demanding industrial and commercial settings. It offers a rapid typical rise and fall time of 50 microseconds, ensuring quick detection signals via its phototransistor output.
Packaged in tape and reel format, the GP1S092HCPIF facilitates efficient insertion into automated manufacturing processes. This device conforms to RoHS environmental standards, ensuring compliance with industry regulations on hazardous substances.
Phototransistor output device for sensitive detection. Surface mount device (SMD) package type for easy PCB integration. Tape and reel packaging supports automated assembly. Operating temperature range from -25°C to 85°C for wide application scope.
A vertical slit design used for detecting alternate motion precisely. Positioning pin prevents mounting misalignment. Compact physical size minimizes PCB space usage. RoHS compliant ensuring environmental safety. Typical response times of 50μs rise and fall for swift operation.
This optical switch is well suited for applications in industrial automation, electronic component manufacturing, and sensor integration. Sharp® branded components like the GP1S092HCPIF ensure dependable performance in optical sensing applications requiring high repeatability and accuracy.
Explore the full range of Slotted Optical Switches at EnvMart for solutions tailored to your electronic design and automation needs.
