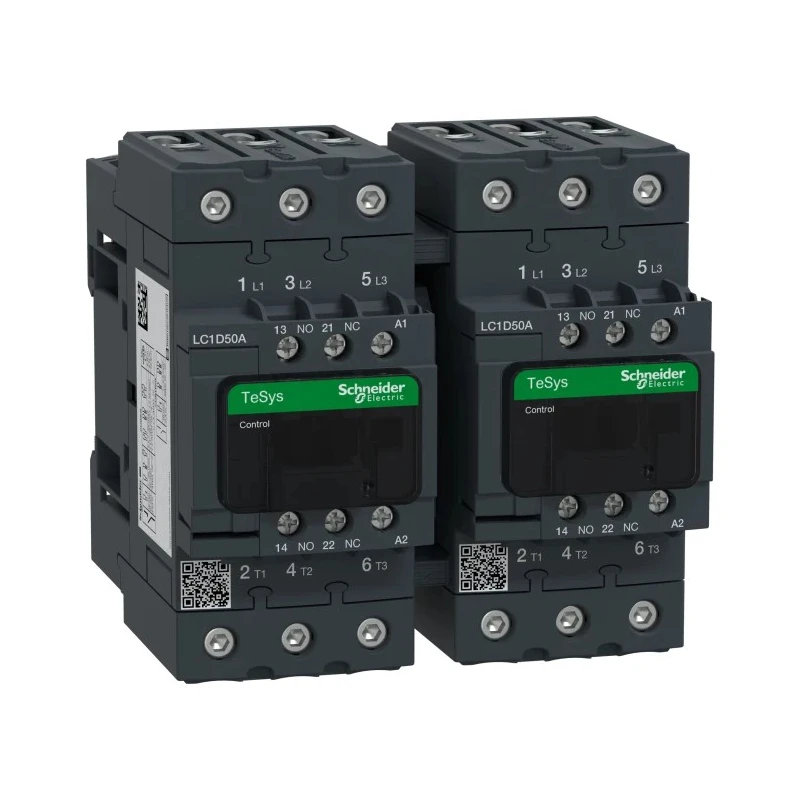

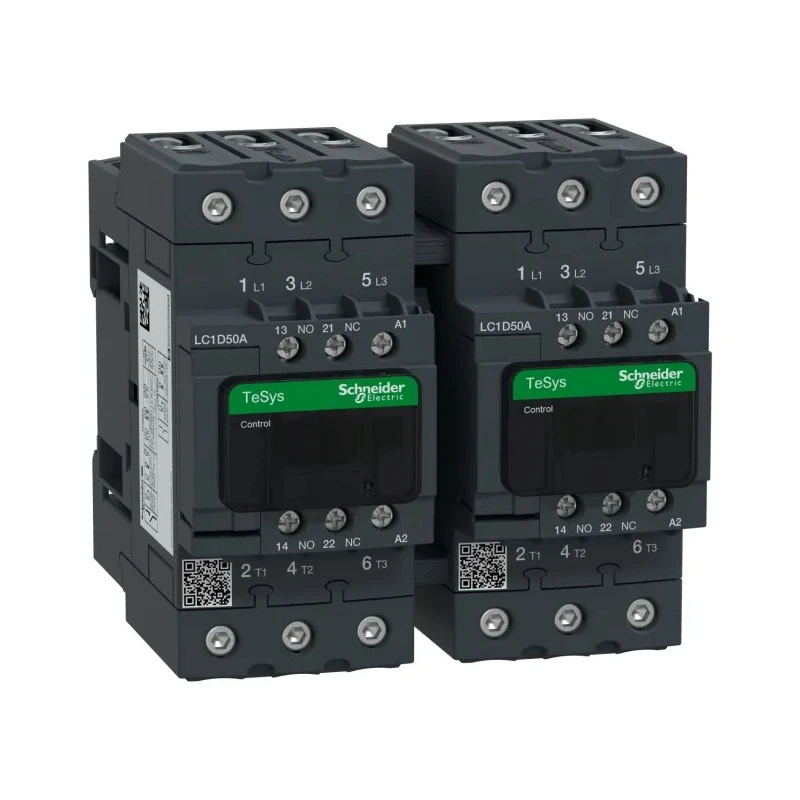

Schneider Electric Contactor 3-Pole 230V AC Coil 50A 22kW 690V AC LC2D50AP7

Schneider Electric LC2D50AP7 Contactor is a high-performance 3-pole switching device designed for industrial automation and motor control applications. Featuring a 230V AC coil voltage and rated for 50A contact current, it handles loads up to 22kW at 690V AC contact voltage. This product is part of the LC2D series and mounts easily on DIN rails, supporting motor control, resistive load, and reversing functions.

The contactor includes 3 normally open (NO) contacts plus 2 auxiliary contacts configured as 2 NO/2 NC for additional control flexibility. It ensures secure connections through screw terminals, facilitating reliable electrical continuity and installation stability.

Operating temperature ranges from -5°C to 60°C, allowing deployment in varied industrial environments. Its compact form factor measures 165mm in width, 132mm in length, and 142mm in depth, fitting efficiently into control panels. Certified to meet international standards including CCC, CSA, EAC, IEC, RoHS, and UL, this contactor guarantees safety and compliance.

Schneider Electric's Better World product design emphasizes environmental responsibility through ease of disassembly for recycling and end-of-life processing. The Everlink reversible switches and hexagon socket-head screw connections facilitate integration with Everlink breakers for efficient starter assembly configurations.

This contactor is ideal for applications in industrial automation, manufacturing plants, HVAC systems, and commercial electrical control systems, providing dependable switching performance and operational safety.

Equipped with a 230V AC coil voltage for reliable control circuit operation. Designed with 3 poles supporting motor and resistive load applications. Rated 50A contact current with 690V AC contact voltage capacity. Includes 3 normally open contacts and 2 auxiliary contacts with 2 NO/2 NC configuration.

Mounts on DIN rail with screw terminal connections for secure installation. Operates within a temperature range of -5°C to 60°C for versatile environmental use. Compact dimensions: 165mm width, 132mm length, and 142mm depth.

Conforms to CCC, CSA, EAC, IEC, RoHS, and UL standards ensuring quality and safety. Designed for ease of disassembly as part of Schneider Electric's Better World initiative. Browse the Electronics & Electricals Automation & Control Gear category for more Schneider Electric Contactors and related industrial components at EnvMart.
