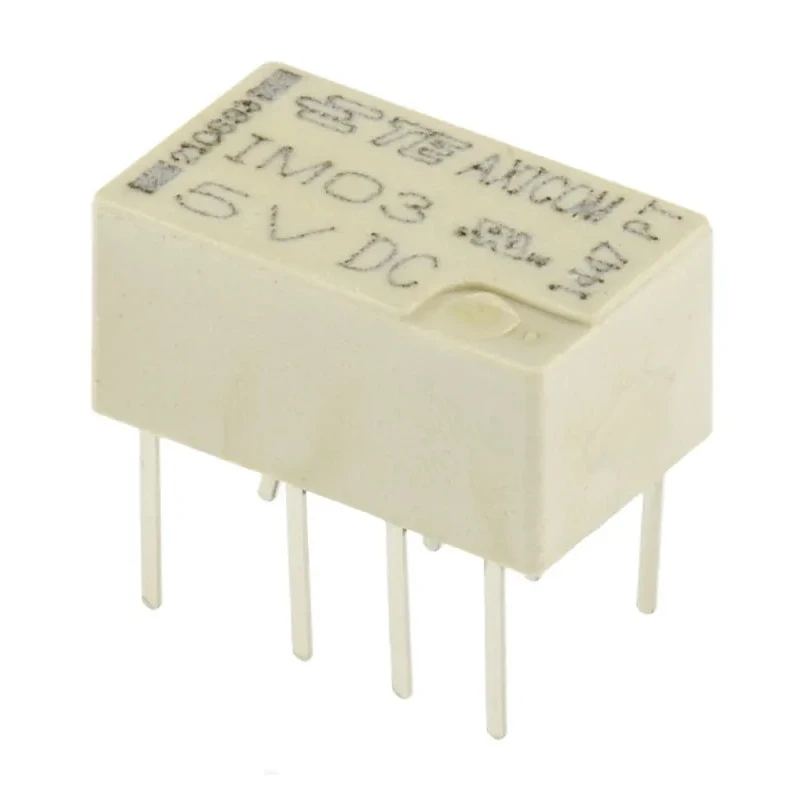

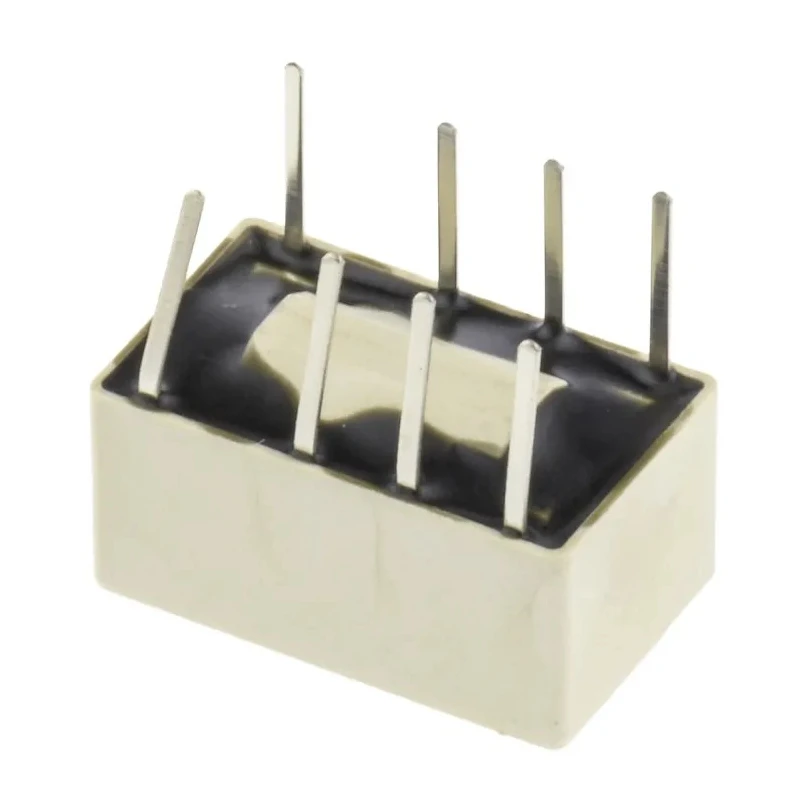

TE Connectivity PCB Signal Relay, 5V DC Coil, 2A Switching Current, DPDT Contact Configuration IM03TS
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Model | IM03TS |
| Width | 6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 178Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 100mW |
Key Features
- Compact slimline design measuring 10x6x5.65 mm for minimal PCB space usage.
- Low coil power consumption of 140mW ensuring energy efficiency.
- Gold-plated bifurcated contacts provide reliable, corrosion-resistant electrical connections.
- Hermetically sealed with an IP67 rating for durable performance in harsh environments.
- High mechanical shock resistance up to 300G functional and 500G survival for robust operation.
- Can handle switching voltages of 250V AC and 220V DC for versatile applications.
- Operates reliably across temperatures from -40°C to 85°C.
- Meets RoHS compliance standards ensuring environmental safety.
Product Description
TE Connectivity IM03TS is a PCB mount signal relay designed for industrial and commercial applications requiring reliable switching. This DPDT relay operates at a 5V DC coil voltage with a switching current rating of 2A, suitable for signal-level switching in telecommunications, office equipment, test and measurement instruments, medical devices, and automotive electronics.

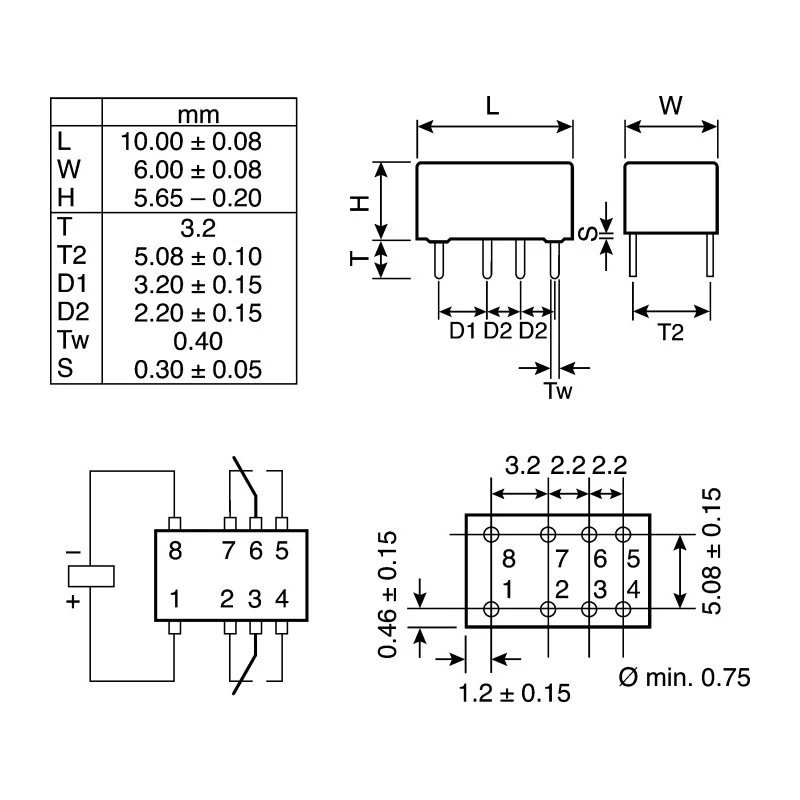

The IM series features a slimline, low-profile form factor measuring 10 mm in length, 6 mm in width, and 5.65 mm in height, minimizing PCB footprint to just 60 mm². Coil power consumption is low at 140mW, contributing to energy-efficient designs. Contacts are gold-plated bifurcated types, ensuring low contact resistance and reliable performance in demanding environments. The relay is hermetically sealed to IP67 standards, protecting it from dust and moisture ingress.
Mechanical shock resistance is high, withstanding up to 300G functional shock and 500G survival shock, making it suitable for harsh industrial conditions. It has a high dielectric surge capability conforming to Telcordia GR 1089, FCC Part 68, and ITU-T K standards. Operating temperature range spans from -40°C to +85°C, facilitating use in various climate conditions.
Compact, slimline construction saves PCB space. Gold-plated bifurcated contacts for superior conductivity and durability. Hermetically sealed relay body provides IP67 protection against contaminants. Low coil power consumption reduces overall system energy usage.
High surge and mechanical shock resistance enhance reliability. Wide operating temperature range ensures performance stability. Ideal for telecommunications, medical, automotive, and office automation equipment.
This relay is manufactured in Switzerland by TE Connectivity, a global leader in electronic components. The solder-type terminals accommodate secure PCB mounting, ensuring robust electrical connections. The IM03TS is compliant with RoHS directives, endorsing environmental responsibility.
For engineers requiring a compact, durable PCB relay for signal switching applications, the TE Connectivity IM03TS offers an excellent solution combining performance, reliability, and design flexibility. Explore more products in the Signal Relay category at EnvMart to find complementary components for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IM03TS relay has a switching current rating of 2A.
This model has dimensions of 10 mm in length, 6 mm in width, and 5.65 mm in height.
The relay operates at a coil voltage of 5V DC.
It features a DPDT (Double Pole Double Throw) contact configuration.
The maximum operating temperature for the IM03TS relay is 85°C.
This relay has an IP67 rating, making it hermetically sealed against dust and moisture.
The coil power consumption is low at 140mW, contributing to energy efficiency.
The minimum operating temperature for this relay is -40°C.
The contacts are made of gold-plated bifurcated material for reliable performance.
It can handle switching voltages of 250V AC and 220V DC.
This relay is designed for PCB mounting with solder-type terminals.
Yes, it meets RoHS compliance standards, ensuring environmental safety.
