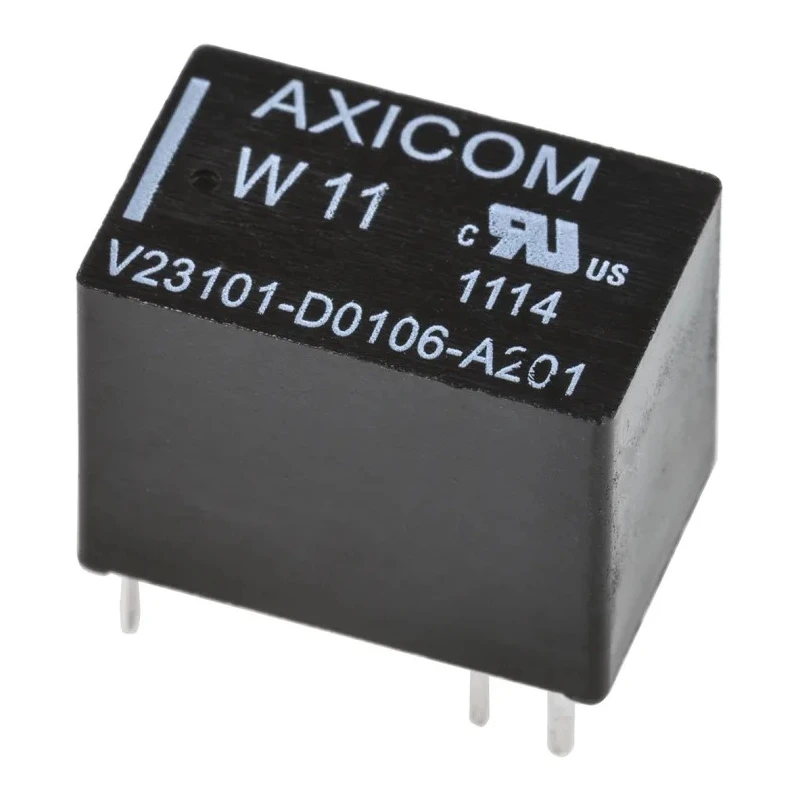

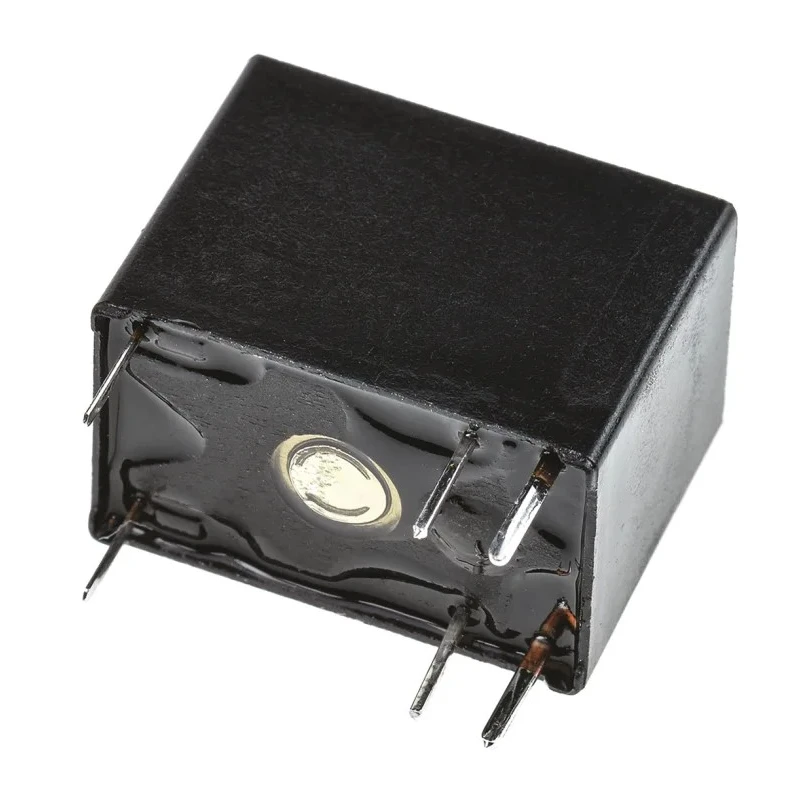

TE Connectivity PCB Signal Relay 12V DC Coil 1.25A SPST V23101D 106A201
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Dimensions | 11.5mm x 10.5mm x 15.5mm |
| Height | 11.5mm |
| Length | 15.4mm |
| Model | V23101D 106A201 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1.25A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 700Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 120V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 206mW |
| Pin Length | 3.5mm |
| TE Connectivity PCB Signal Relay, 12V dc Coil, 1.25A, SPSTBrand | TE Connectivity |
Key Features
- Designed for PCB mounting with solder terminal type.
- High shock and vibration resistance ensures reliable performance.
- Operates within -40°C to 85°C temperature range.
- Gold plated contacts for enhanced conductivity and durability.
- Coil resistance of 700Ω and coil power consumption of 206mW.
- Compact dimensions approximately 15.4mm length, 11.5mm height, and 10mm width.
- Switching voltage rated at 125V AC and 120V DC for versatile applications.
- Fully sealed design for protection against environmental factors.
Product Description
TE Connectivity V23101D 106A201 PCB Signal Relay is a high-quality signal relay designed for industrial and electrical applications requiring precise switching with a 12V DC coil voltage and 1.25A switching current capacity. Its SPST (Single Pole Single Throw) contact configuration allows reliable signal switching in compact PCB mounted setups.
This relay is built for durability and performance, featuring gold plated contacts to ensure low resistance and high conductivity. It withstands harsh environments through a fully sealed construction and offers high vibration and shock resistance for stable operation.The operating temperature range of -40°C to +85°C makes it suitable for a wide range of industrial conditions. With a coil resistance of 700Ω and a power consumption of 206mW, it is designed for efficient energy usage.Dimensional specifications of approximately 15.4mm x 11.5mm x 10mm optimize the relay for integration into compact electronic circuits. It supports switching voltages of up to 125V AC and 120V DC, enabling flexible use cases in automation, signal conditioning, control systems, and various manufacturing equipment.This relay is compliant with RoHS standards, underscoring its environmental safety.Ideal for applications in industrial control panels, signal conditioning equipment, and automation, this TE Connectivity PCB Signal Relay enhances signal reliability and system efficiency.
Designed for PCB mounting with solder terminal connections. Gold plated contacts for superior electrical performance. Sealed enclosure protects against dust and moisture ingress. Wide temperature tolerance for various industrial environments.
Compact size facilitating integration into tight spaces. Robust switching capabilities up to 1.25A contact current. Explore more Signal Relays and electrical components from TE Connectivity to upgrade your industrial setups at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 1.25A, making it suitable for various signal switching applications.
This model operates with a coil voltage of 12V DC, which is essential for its activation.
The relay has approximate dimensions of 15.4mm in length, 11.5mm in height, and 10mm in width, allowing it to fit in compact spaces.
The maximum operating temperature for this relay is 85°C, making it suitable for various industrial environments.
It features a Single Pole Single Throw (SPST) contact configuration, which is common for signal switching applications.
The coil resistance of this relay is 700Ω, which influences its power consumption and efficiency.
This relay supports a switching voltage of up to 125V AC and 120V DC, providing versatility in applications.
Yes, this relay is compliant with RoHS standards, indicating its adherence to environmental safety regulations.
The coil power consumption is 206mW, which is relatively low and contributes to energy efficiency.
This relay is designed for PCB mounting with solder terminal connections, ensuring secure installation.
The contacts of this relay are made from gold-plated material, enhancing conductivity and durability.
It features a fully sealed design that protects against dust and moisture ingress, ensuring reliable operation in harsh conditions.
