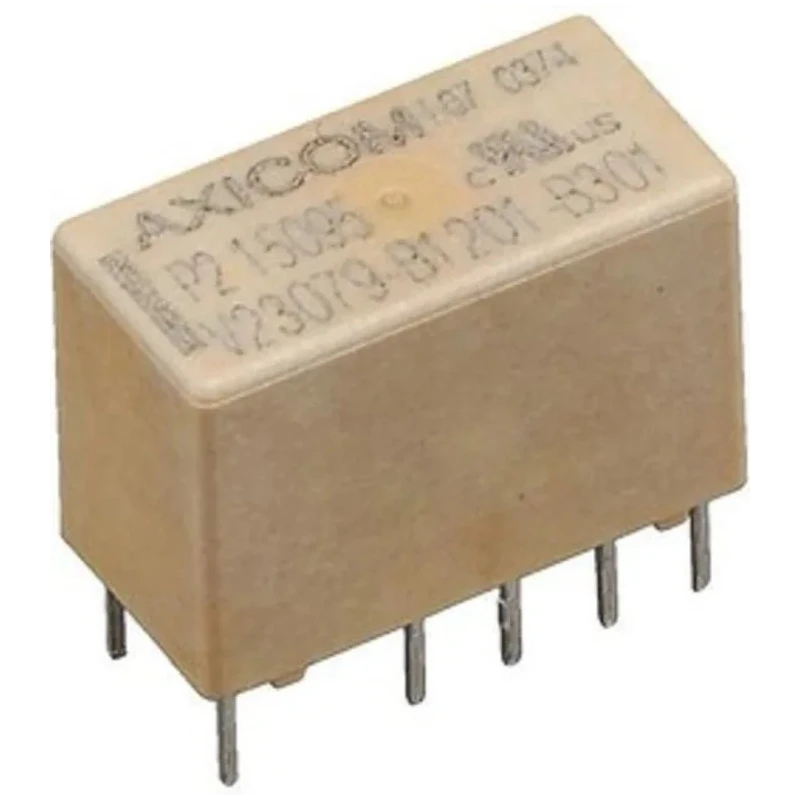

TE Connectivity PCB Signal Relay 5V DC Coil 2A DPDT V23079C1101B301
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 9.8mm |
| Length | 14.5mm |
| Model | V23079C1101B301 |
| Width | 7.2mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 357Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 70mW |
| Switching Power | 140mW |
Key Features
- Miniature, low power consumption with a coil power of 70mW.
- Gold plated bifurcated contacts for enhanced reliability.
- Compact size with dimensions 14.5mm length, 9.8mm height, and 7.2mm width.
- Operating temperature range from -40°C up to 85°C suitable for diverse environments.
- RoHS compliant and meets insulation resistance standards above 10⁹Ω.

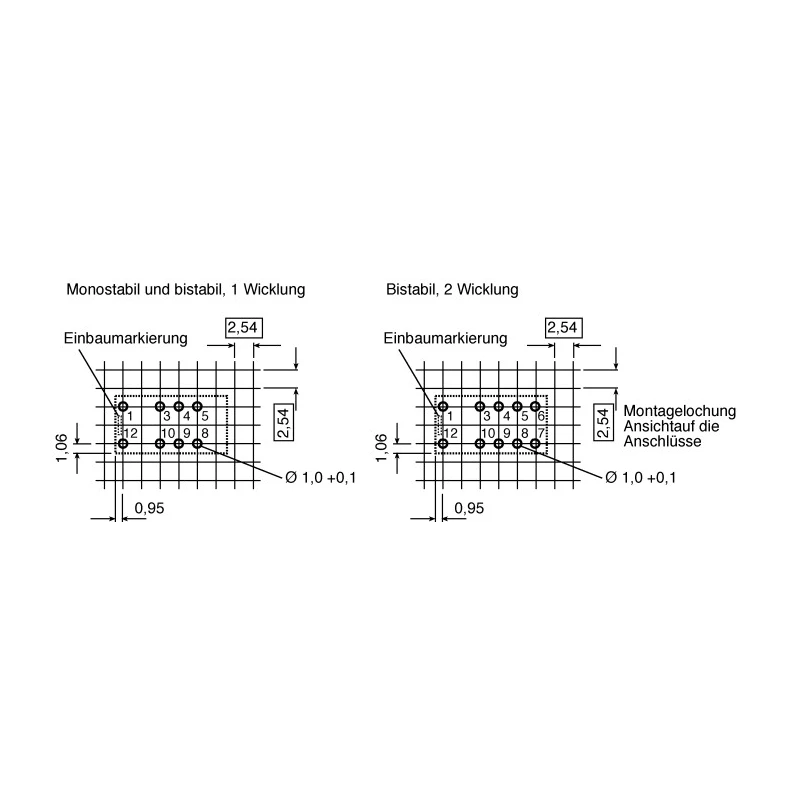

- Designed for PCB mounting with solder-type terminals.
- Surge capability compliant with Telcordia and IEC standards for telecom applications.
- Ideal for communications, consumer electronics, medical, automotive, and office equipment applications.
Product Description
TE Connectivity V23079C1101B301 PCB Signal Relay features a 5V DC coil and 2A switching current with a DPDT contact configuration. This miniature telecom relay series offers high sensitivity and low power consumption, making it suitable for space-conscious electronic designs.
The relay incorporates gold plated bifurcated contacts, ensuring robust electrical performance and reliability for signal switching applications. Its compact dimensions - 14.5mm in length, 9.8mm height, and 7.2mm width - facilitate easy PCB mounting with solder terminals.
Operating effectively between -40°C and 85°C, it supports rigors industrial and commercial environments. Compliance with RoHS and insulation resistance greater than 10⁹ ohms reflect its quality standards. Surge capability meets Telcordia TR-NWT-001089 and IEC 60950 requirements, ensuring suitability for telecom and other demanding industries.
This Signal Relay is ideal for use in telecommunications equipment including PABX and VOIP systems, consumer electronics such as set top boxes and HiFi devices, as well as office, medical, control, and automotive equipment, providing reliable signal switching across various sectors.
Miniature, low power consumption with a coil power of 70mW. Gold plated bifurcated contacts for enhanced reliability. Compact size with dimensions 14.5mm length, 9.8mm height, and 7.2mm width. Operating temperature range from -40°C up to 85°C suitable for diverse environments.
RoHS compliant and meets insulation resistance standards above 10⁹Ω. Designed for PCB mounting with solder-type terminals. Surge capability compliant with Telcordia and IEC standards for telecom applications. Ideal for communications, consumer electronics, medical, automotive, and office equipment applications.
Explore EnvMart's extensive range of professional relays and contactors to find the perfect solution for your industrial and electronic requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this model is 5V DC.
This relay has a maximum switching current of 2A.
The dimensions are 14.5mm in length, 9.8mm in height, and 7.2mm in width.
It operates effectively between -40°C and 85°C.
The relay features a DPDT (Double Pole Double Throw) contact configuration.
The coil power consumption is 70mW.
This unit is designed with solder-type terminals for PCB mounting.
Yes, this relay is RoHS compliant.
The insulation resistance is greater than 10⁹ ohms.
It complies with Telcordia TR-NWT-001089 and IEC 60950 standards.
This relay is suitable for telecommunications, consumer electronics, medical equipment, automotive, and office applications.
The maximum switching voltage is 250V AC and 220V DC.
