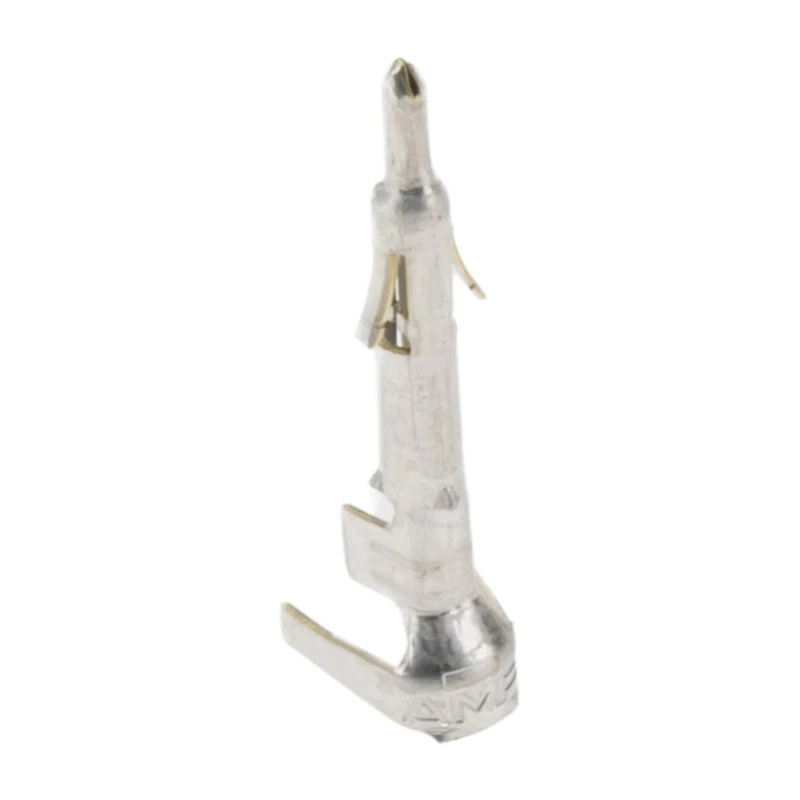

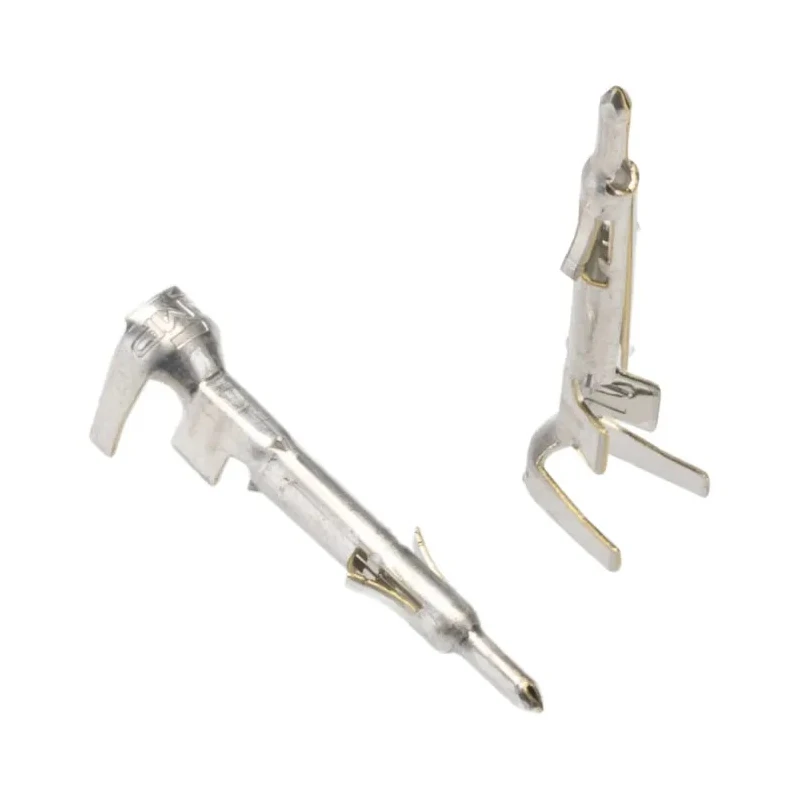

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 7A Current 20-16 AWG Brass Contact 171638-1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Model | 171638-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- This male crimp terminal is compatible with Mini-Universal MATE-N-LOK connector housing systems.
- Constructed with brass contact material for durability and conductivity.
- The contact is plated with tin to resist corrosion and ensure performance longevity.
- Supports a maximum current rating of 7 amperes and contact resistance up to 10 milliohms.
- Operates reliably within a temperature range of -20°C to 105°C.
- Termination is by crimping, ensuring a secure mechanical and electrical connection.
- Manufactured in Japan adhering to stringent quality standards, albeit no specific approvals listed.
Product Description
TE Connectivity 171638-1 Mini-Universal MATE-N-LOK Series Male Crimp Terminal provides a robust electrical connection solution within electronic assemblies, particularly suitable for power connectors and PCB wire housing systems. Designed for use with Mini-Universal MATE-N-LOK connector housings, this male terminal offers excellent reliability in industrial, laboratory, HVAC, manufacturing, and commercial electrical setups.
Constructed from brass materials with tin plating, the terminal ensures high conductivity and resistance to corrosion, extending operational lifespan. The terminal supports wire sizes from 20 AWG (0.5 mm²) minimum to 16 AWG (1.3 mm²) maximum, with a maximum operational current of 7 amperes, making it optimal for moderate current applications.
Designed for crimp termination, this male crimp terminal delivers a secure and easy-to-install connection, guaranteeing a stable electrical interface that reduces contact resistance to a maximum of 10 milliohms. It performs consistently within a wide temperature range from -20°C to 105°C, suitable for various industrial environments.
This component is manufactured in Japan, ensuring quality and precision manufacturing and contributing to system reliability. While it carries no specific certifications or approvals, it is compliant with standard safety and performance expectations for such connectors.
The Mini-Universal MATE-N-LOK series connectors are widely used in power connectors, wire terminal applications, and PCB connectors in industrial and commercial devices. Their reliable connection and compact form factor make them a popular choice in electronic component assemblies.
This male crimp terminal is compatible with Mini-Universal MATE-N-LOK connector housing systems. Constructed with brass contact material for durability and conductivity. The contact is plated with tin to resist corrosion and ensure performance longevity.
Supports a maximum current rating of 7 amperes and contact resistance up to 10 milliohms. Operates reliably within a temperature range of -20°C to 105°C. Termination is by crimping, ensuring a secure mechanical and electrical connection.
Manufactured in Japan adhering to stringent quality standards, albeit no specific approvals listed. Explore more Connectors and electronic components at EnvMart for high-quality electrical connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this male crimp terminal is 7 amperes.
This terminal supports wire sizes from 20 AWG (0.5 mm²) minimum to 16 AWG (1.3 mm²) maximum.
The contact material used in this crimp terminal is brass, which is plated with tin to resist corrosion.
It operates reliably within a temperature range of -20°C to 105°C.
The termination is achieved by crimping, ensuring a secure mechanical and electrical connection.
The maximum contact resistance for this terminal is up to 10 milliohms.
This male crimp terminal is compatible with Mini-Universal MATE-N-LOK connector housing systems.
This terminal is manufactured in Japan, adhering to stringent quality standards.
This male crimp terminal belongs to the Mini-Universal MATE-N-LOK series.
This terminal is suitable for power connectors and PCB wire housing systems in industrial and commercial electrical setups.
The gender of this crimp terminal is male.
This terminal provides a robust electrical connection solution, particularly for electronic assemblies.
