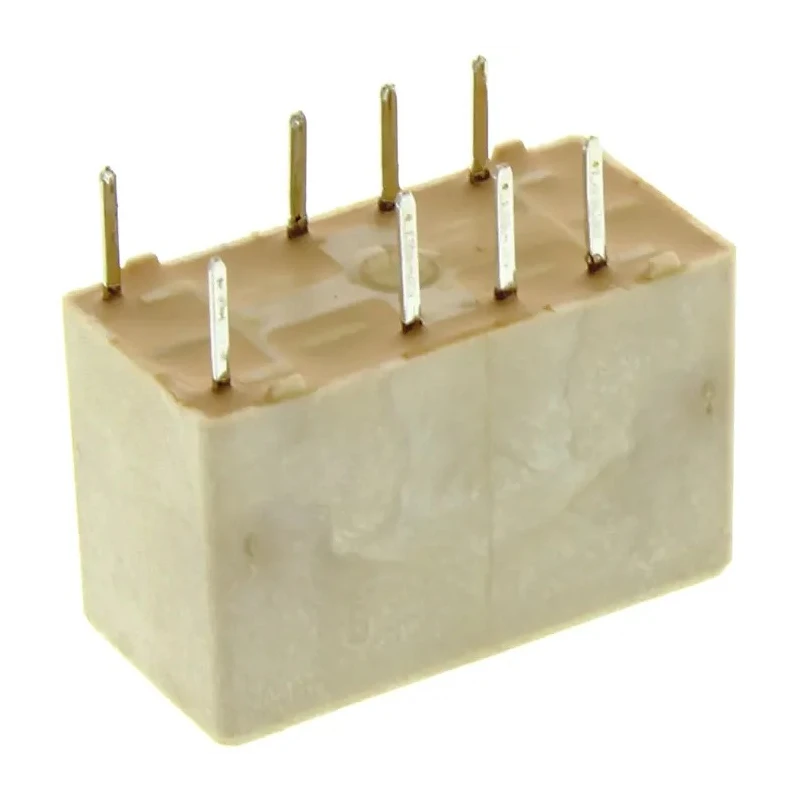

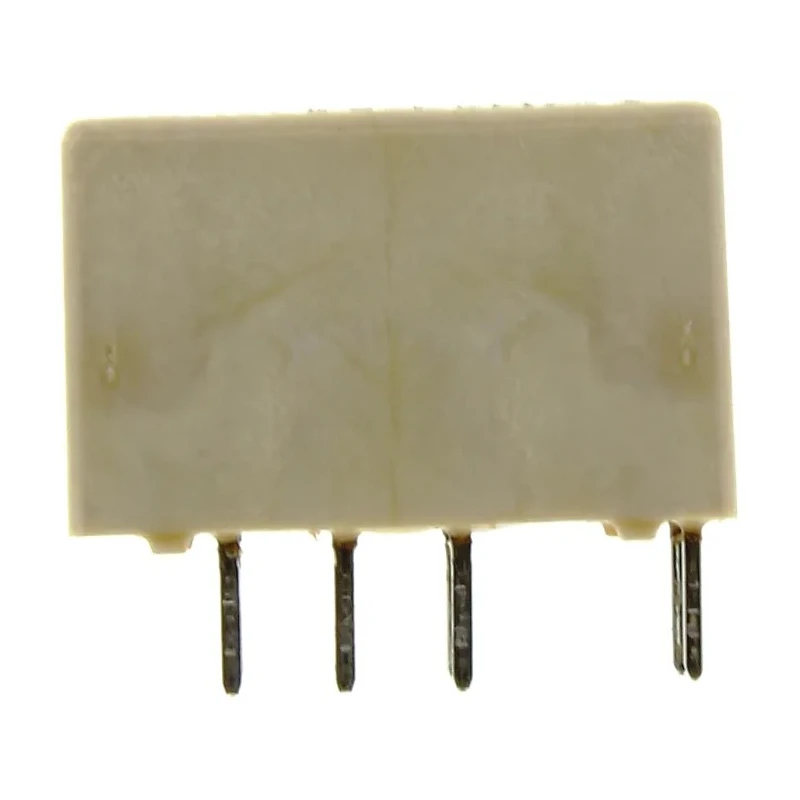

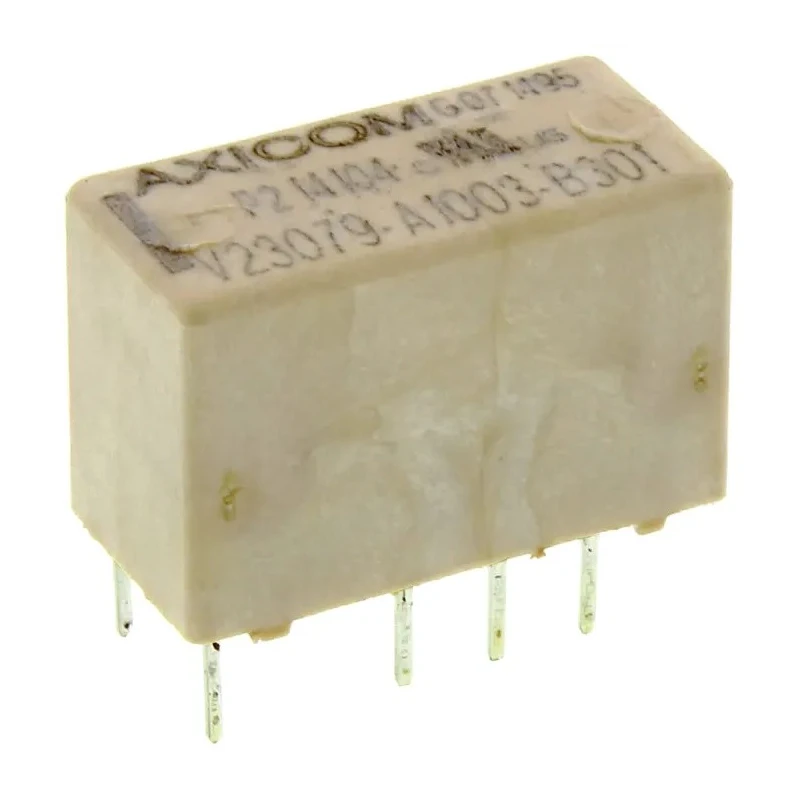

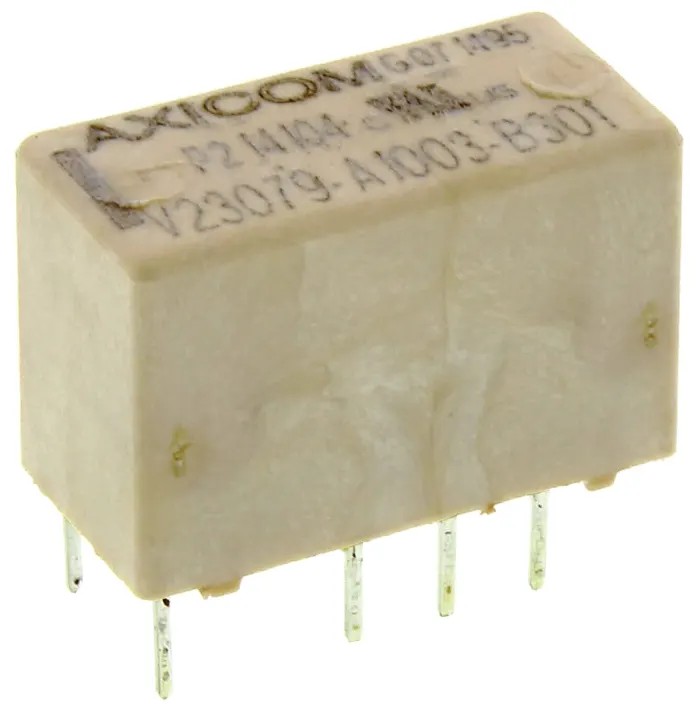

TE Connectivity PCB Signal Relay 12V DC Coil 2A DPDT Axicom P2 Series V23079A1003B301

TE Connectivity V23079A1003B301 PCB Signal Relay is a high sensitivity miniature relay from the Axicom P2 series designed for electronic and electrical applications requiring compact and reliable signal switching solutions.

This signal relay operates with a 12V DC coil voltage and supports a switching current capacity of up to 2A, making it suitable for controlling signals in communications, consumer electronics, office, medical, and automotive equipment.

The relay features a DPDT (Double Pole Double Throw) contact configuration with bifurcated gold plated contacts to ensure excellent contact reliability and low resistance. Its solder terminal type enables efficient PCB mounting and assembly, which is ideal for compact and low-profile applications.

Designed for harsh environments, this relay is immersion cleanable and holds an RTIII flammability classification and IP67 rating, assuring resistance to dust and moisture ingress. It withstands operating temperatures between -40°C and 85°C and offers surge capabilities compliant with Telcordia TR-NWT-001089 and IEC 60950 standards for enhanced durability in telecom and industrial applications.

With a low coil power of 140mW and a coil resistance of 1000Ω, this relay ensures minimal power consumption during operation, increasing energy efficiency in control circuits. Its compact dimensions of 14.5mm length, 7.4mm width, and 9.8mm height make it an excellent choice when space saving is critical.

Typical applications include communications equipment such as PABX and VOIP systems, set-top boxes, HiFi consumer electronics, office automation devices, control and medical equipment, and automotive electronics. The relay's gold plated contacts enhance long-term reliability and signal integrity.

This product is manufactured in the Czech Republic and complies with RoHS standards. Part of Axicom P2 miniature relays series with 2 pole polarised configuration. Slimline and low profile design suited for space constrained PCB layouts.

Gold plated bifurcated contacts provide excellent electrical performance. Immersion cleanable, RTIII rating, and IP67 protects against harsh environmental conditions. Wide operational temperature range suited for industrial applications.
