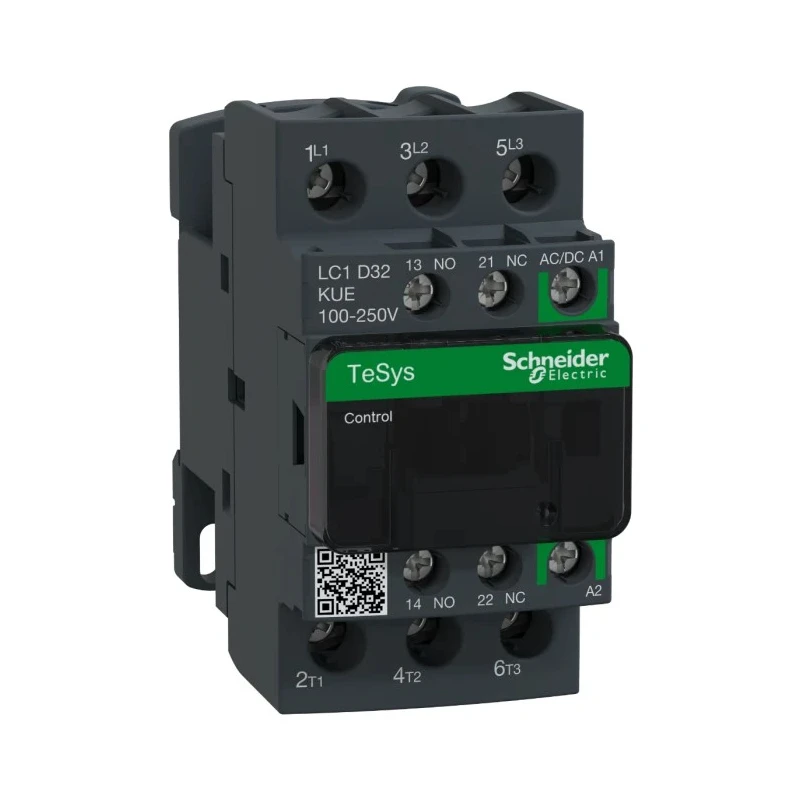

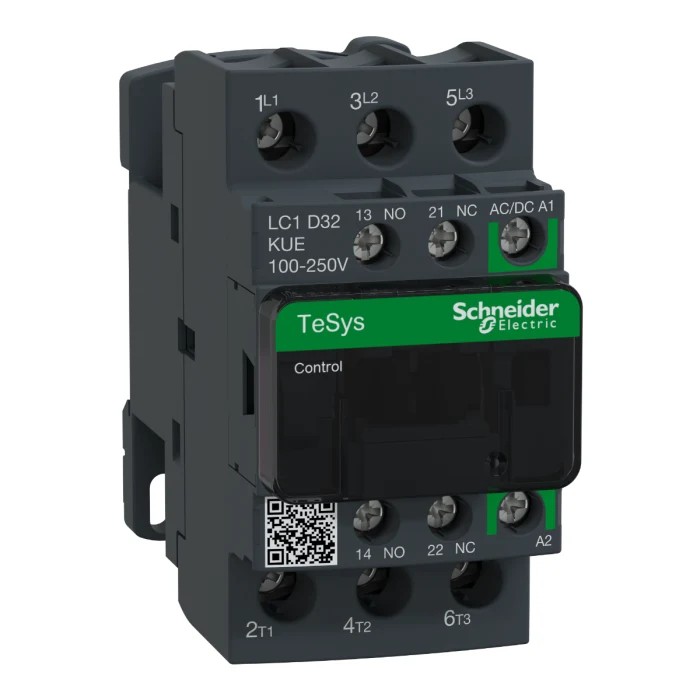

Schneider Electric TeSyS D Contactor, 3-Pole, 32 A, 15 kW 250V, 230V AC Coil, 3 NO, 690V AC LC1D32KUE

Schneider Electric LC1D32KUE TeSyS D contactor is a high-quality, reliable 3-pole contactor with a 230V AC coil designed for motor control and resistive load applications. It supports a contact current of 32 A and delivers a power rating of 15 kW at 250V, suitable for a wide range of industrial uses.

This contactor features three normally open (3 NO) contacts and 2 auxiliary contacts with one normally open (NO) and one normally closed (NC) configuration, providing versatile switching capabilities. The device incorporates screw type terminals that are IP20 finger-safe with markings compliant for both North American and international wiring standards, enabling safe and easy installation.

Designed for panel or DIN rail mounting, the LC1D32KUE operates reliably across temperatures from -25°C to 60°C. Its operational current is rated at 32A with a control circuit voltage of 250V, making it suitable for demanding electrical automation, manufacturing, and HVAC systems. The unit meets multiple global standards including IEC, RoHS, UL, CCC, and CSA, which guarantees high performance and eco-friendly manufacturing.

The TeSyS D series contactors include features to reduce power consumption and ensure durability against shock and vibration, making them excellent for motor starters and resistive load applications in industrial, commercial, and manufacturing environments. The design includes a bidirectional peak limiting diode suppressor to protect the coil from voltage spikes, enhancing longevity.

Applications range from controlling squirrel cage motors, pumps, compressors, conveyors, mixers, air conditioning units, and other machinery requiring robust motor control. Accessories such as auxiliary contact blocks, transient voltage suppressors, mechanical latching blocks, and electronic timers are available to expand functionality.

Offers a 32 A contact current and 15 kW power rating at 250V. Equipped with three normally open (3 NO) contacts ensuring reliable switching. Has a control circuit voltage of 250V and operational current of 32A. Mountable on DIN Rail with IP20 finger-safe screw terminals marked for international use.

Designed to operate within a temperature range of -25°C to 60°C. Includes 2 auxiliary contacts configured as 1 NO and 1 NC for added functionality. Compliance with international standards including IEC, RoHS, UL, CCC, CSA for assured quality and safety.
