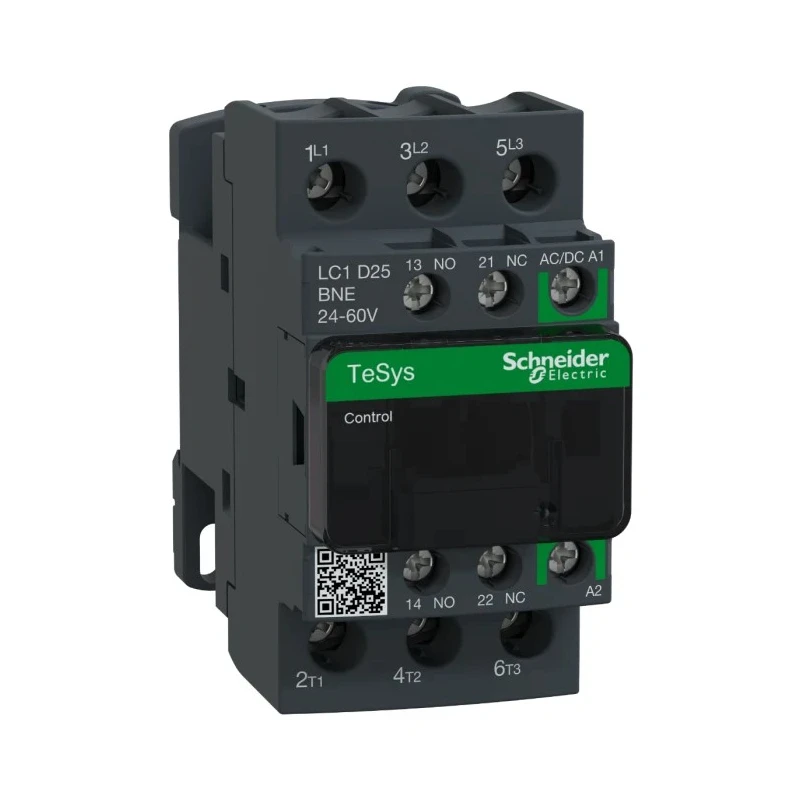

Schneider Electric TeSyS D 3-Pole Contactor 25 A, 11 kW, 24V AC/DC Coil, 3 NO, 690V AC LC1D25BNE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 45mm |
| Model | LC1D25BNE |
| Depth | 85mm |
| Width | 92mm |
| Mount Type | Plate, Rail Mount |
| Series | TeSys D |
| Power Rating | 11kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, RoHS, UL, IEC |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac/dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
Key Features
- Operates with a 24V AC/DC coil voltage, suitable for 690V AC contact voltage.
- Rated for 25A contact current with 11 kW power rating.
- Includes 3 normally open main contacts and 2 auxiliary contacts (1 NO and 1 NC).
- Supports plate and rail mounting with screw clamp terminals.
- Designed for industrial applications such as factory automation and process equipment.
- Operates reliably within temperature range of -25°C to 60°C and altitudes up to 3000 meters.
- Complies with international standards including CCC, CSA, EAC, RoHS, UL, and IEC.
Product Description
Schneider Electric LC1D25BNE is a 3-pole TeSyS D contactor featuring a 24V AC/DC coil voltage and rated for 25A contact current with an 11 kW power rating at 690V AC. This compact device is engineered for motor control and resistive load switching in demanding industrial electrical systems.
Its robust construction includes a mechanical configuration of three normally open poles and two auxiliary contacts (1 normally open and 1 normally closed). The contactor supports secure connections via screw clamp terminals, compatible with conductor sizes from 1 to 10 mm², and is suitable for plate or rail mounting installation.
Designed for industrial and manufacturing applications, it enables reliable direct motor switching, resistive heating element control, and interlock functions within factory automation panels and process equipment. The contactor supports AC-3 utilization category, typically used for motor starting and stopping, and delivers high making and breaking capacities with an operational current of 25 A.
With an ambient operating temperature range from -25 °C to 60 °C and altitude capability up to 3,000 meters, it ensures dependable performance under a range of environmental conditions. The device complies with multiple international standards including CCC, CSA, EAC, RoHS, UL, and IEC, affirming quality and safety.
Operates on 24V AC/DC coil voltage enabling broad compatibility. 3-pole configuration supports 690V AC contact voltage for industrial loads. 25A rated contact current with 11 kW power rating for motor and resistive loads.
Includes 2 auxiliary contacts for status feedback and control schemes. Supports direct motor switching and resistive load control applications. Screw clamp terminals for secure conductor connections from 1 to 10 mm². Designed for plate and DIN rail mounting offering installation flexibility.
Electrical endurance up to 2 million cycles ensuring long operational life. Certified under multiple global standards for safety and environmental compliance.
This Schneider Electric TeSyS D Contactor is ideal for industrial control panels, HVAC, manufacturing, and water treatment environments requiring reliable, high-performance switching devices. Explore more automation and electrical components in the EnvMart catalog to customize your setup.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 11 kW.
It is rated for a contact current of 25 A.
The coil voltage for this unit is 24V AC/DC.
It can handle a maximum contact voltage of 690V AC.
This contactor features a 3-pole configuration.
It includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
The dimensions are 45mm in length, 92mm in width, and 85mm in depth.
It supports both plate and rail mounting.
It operates reliably within a temperature range of -25°C to 60°C.
It complies with multiple international standards including CCC, CSA, EAC, RoHS, UL, and IEC.
This model is designed for motor control and resistive load applications.
It uses screw clamp terminals for secure connections.
