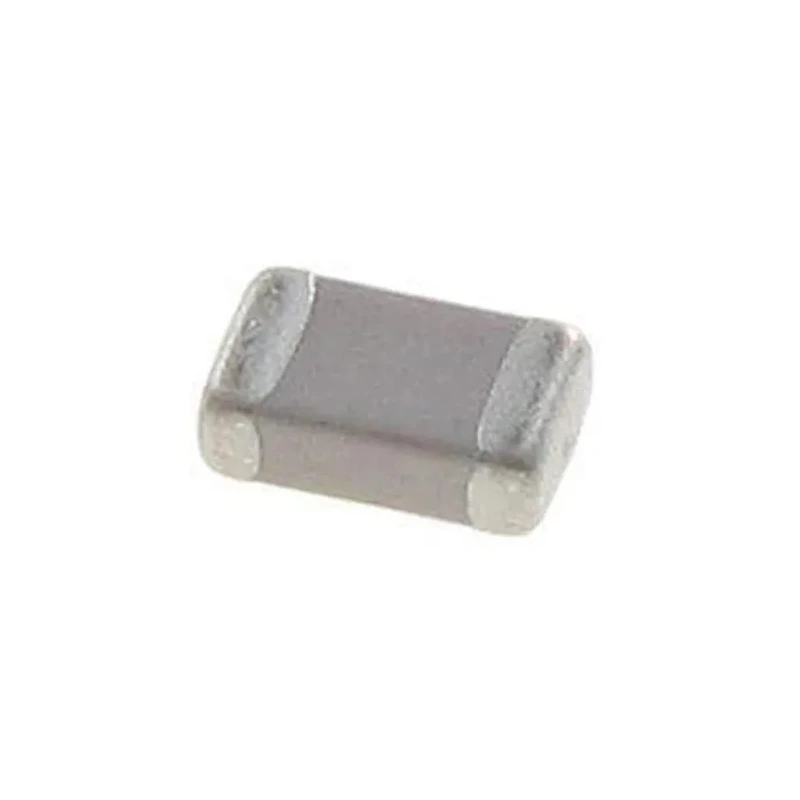

KYOCERA AVX 100 nF Multilayer Ceramic Capacitor 1kV DC ±10% X7R Dielectric Surface Mount 2225AC104KAT1A

KYOCERA AVX model 2225AC104KAT1A is a high-quality 100 nF multilayer ceramic capacitor manufactured for demanding electronic applications. Featuring an X7R dielectric with a voltage rating of 1kV DC and a capacitance tolerance of ±10%, this surface mount device is designed for precision and reliability.

This capacitor is housed in a 2225 package (5.72mm length x 6.35mm width x 2.54mm height), optimized for compact electronic assemblies. It maintains stability over a wide temperature range from -55°C to 125°C, making it suitable for industrial, commercial, and telecommunications applications.

The component offers low Equivalent Series Resistance (ESR) and leakage, making it ideal for use in snubbers, high frequency power convertors, switch mode power supplies (SMPS), resonators, and high-voltage DC blocking circuits. It is part of the AVX 2225 series with KGM series dielectric ceramics, known for stable and temperature compensating characteristics.

Packaged on reels, this surface mount capacitor supports efficient automated PCB assembly, ensuring consistent component placement. The part does not carry automotive standard certification but is widely used in industrial electronic equipment due to its robust performance.

Its wide operating temperature and high voltage rating allow it to perform reliably in various environments including industrial controls, power supplies, telecommunications infrastructure, and consumer electronics. This capacitor supports applications requiring stable capacitance and durability.

Utilizes X7R dielectric material offering stability across temperature. Capacitance value of 100 nF with tight tolerance ensures precise performance. Rated for a maximum operating temperature of 125°C, suitable for demanding environments.

Compact 2225 package with dimensions: 5.72mm length, 6.35mm width, 2.54mm height. Surface mount termination type for easy PCB integration. Packaging supplied on reel for automated assembly processes. Designed as part of the AVX 2225 series with KGM series dielectric characteristics.

Minimum operating temperature is -55°C, suitable for industrial applications. Low ESR and leakage current support high frequency applications like SMPS and resonators. Explore more from KYOCERA AVX and related Multilayer Ceramic Capacitors at EnvMart for high-quality industrial electronics components.
