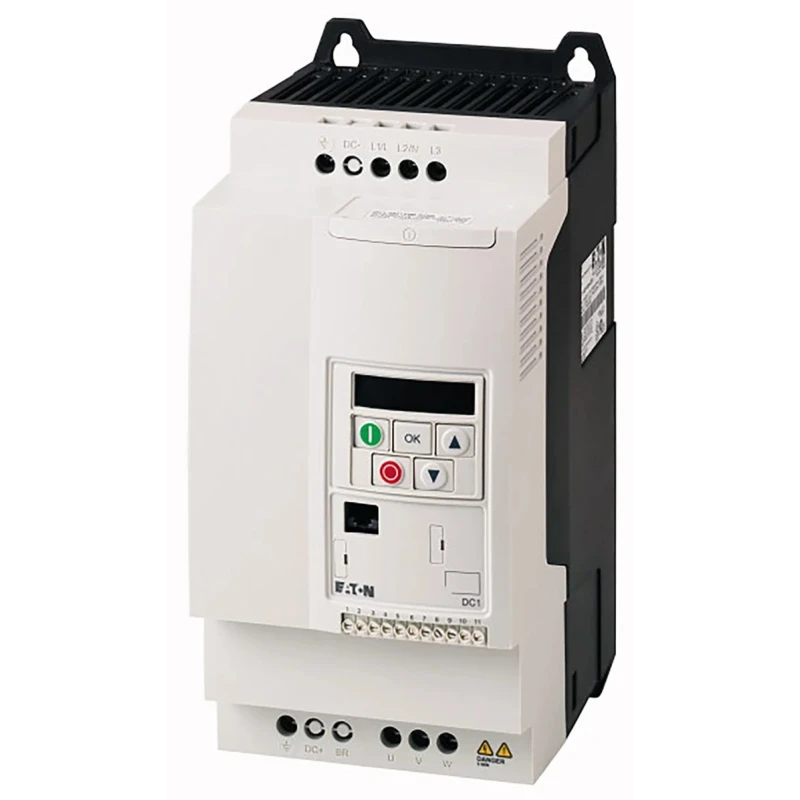

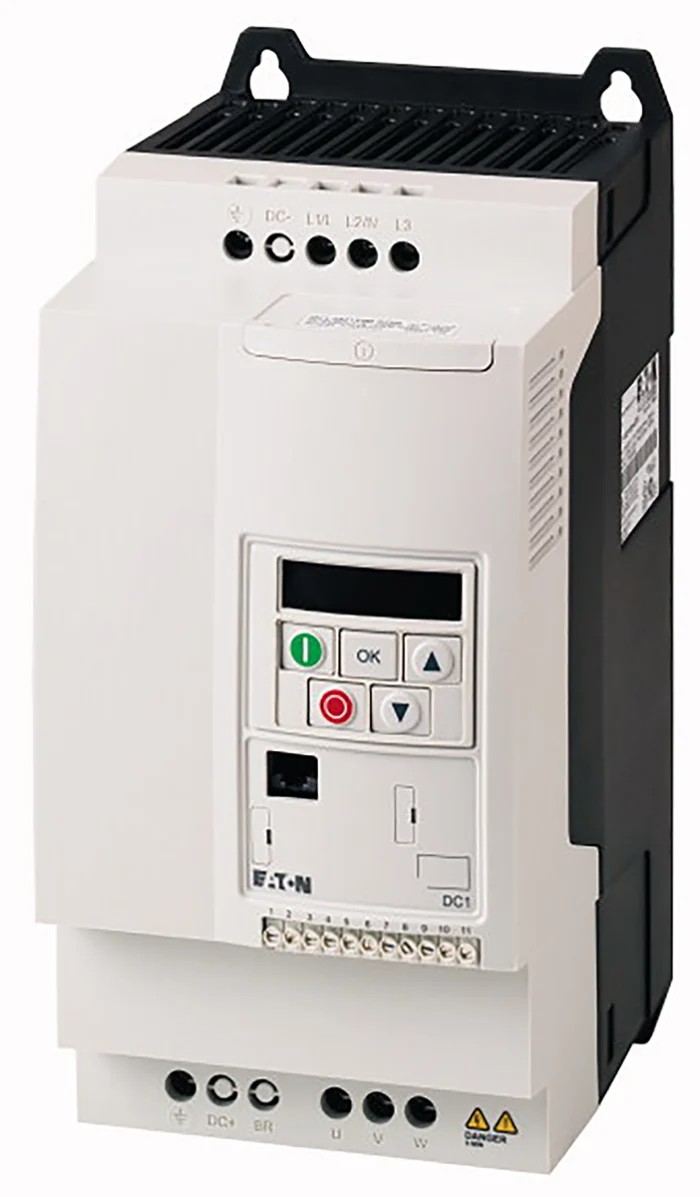

Eaton Inverter Drive, 4 kW, 1 Phase, DC1 Series, 230V AC, 15.3 A, Vector Control 185800 DC1-12015NB-A20CE1

Eaton 185800 DC1-12015NB-A20CE1 Inverter Drive is a compact variable frequency drive designed for simple yet reliable control of asynchronous motors. Rated at 4 kW power with a single-phase 230V AC input, this drive is part of the Eaton PowerXL DC1 series, offering robust performance with a maximum output current of 15.3 A and vector control technology.

The drive features a compact flange mount housing with IP20 protection rating and digital LED display for straightforward installation and setup. Commissioning is expedited through an intuitive interface with only 14 basic parameters, making it suitable for quick integration in industrial applications.

Technical features include V/Hz control with start voltage boost and slip compensation, ensuring efficient motor performance across varying loads. An integrated PI controller enhances precision, while communication support for CANopen and Modbus protocols enables seamless integration into automation networks.

Its overload capability is notable, supporting 150% current for 60 seconds and up to 175% for short bursts of 2 seconds, ensuring durability under transient load conditions. The drive operates reliably within an ambient temperature range reaching 50°C, making it suited to various industrial environments.

Applications for the Eaton DC1 series inverter drives mainly encompass fans, pumps, conveyor systems, and general machine building tasks, providing flexible and energy-saving motor control with reduced environmental impact, aligning with the Better World sustainability initiative.

Manufactured in the United Kingdom, this Eaton product complies with CE, cUL, EAC, RCM, UkrSEPRO, and UL standards, reflecting its quality and safety in diverse industrial markets.

Operates with 230V AC supply voltage for efficient performance. Provides maximum output current of 15.3 A for robust motor control. Compact design with flange mount and IP20 rating ensures adaptable installation. Equipped with digital LED display and simple commissioning using 14 basic parameters.

Supports V/Hz control with start voltage boost and slip compensation for precise motor operation. Includes integrated PI controller and supports CANopen and Modbus communication protocols. Offers large overload capacity: 150% for 60 seconds and 175% for 2 seconds.

Operational temperature range up to 50°C suitable for industrial environments. Ideal for use in fans, pumps, conveyors, and machine building applications. Designed and manufactured in the United Kingdom under Eaton PowerXL compact DC1 series.
