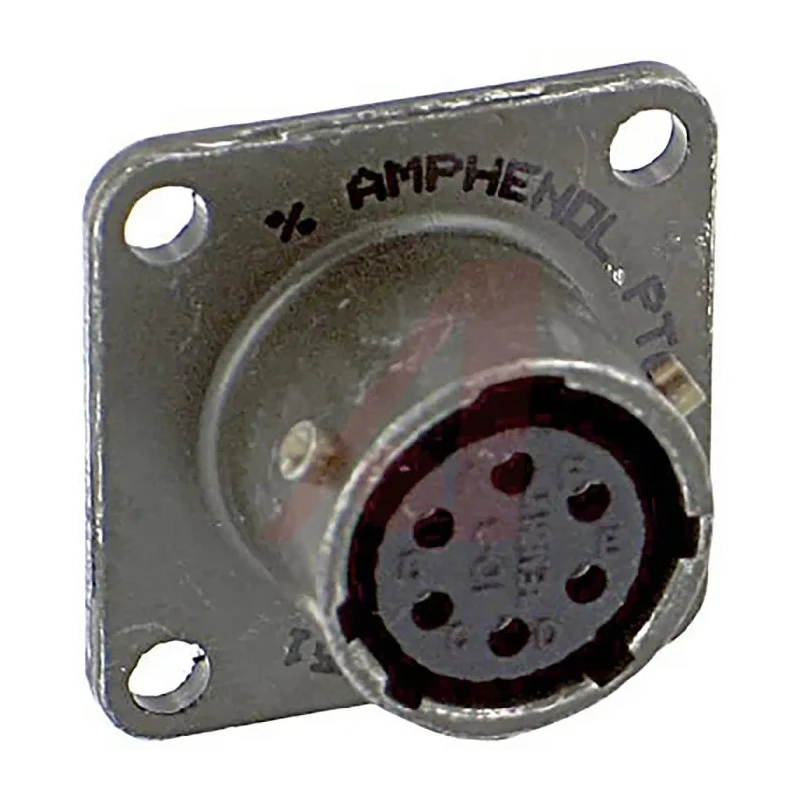

Amphenol Industrial PT Copper Alloy Straight 6 Way Panel Mount MIL Spec Circular Connector Female 1kV AC PT02A-10-6S
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1kV ac |
| Brand | Amphenol Industrial |
| Colour | Green |
| Orientation | Straight |
| Model | PT02A-10-6S |
| Mount Type | Panel Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | PT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 10 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Miniature |
| Shell Plating | Cadmium |
Key Features
- The connector features a bayonet coupling for quick connect and disconnect.
- It supports 6 female contacts and operates at 1kV AC voltage.
- The housing is made of aluminium with cadmium plating and is green in colour.
- Operating temperature ranges from -55°C to 125°C for a wide range of environments.
- Termination is via solder, ensuring reliable electrical connections.
- It complies with MIL-DTL-26482 military specifications.
- The miniature connector size is suitable for compact electronic assemblies.
- Contact materials include copper alloy with gold plating for enhanced conductivity and corrosion resistance.
Product Description
Amphenol Industrial PT02A-10-6S Mil Spec Circular Connector is a high-density, straight panel mount connector engineered to meet strict MIL-DTL-26482 Series 1 standards. Featuring 6 copper alloy female contacts plated with gold, this connector ensures excellent signal integrity and durability in harsh industrial environments.
The aluminium housing with cadmium plating provides mechanical strength and corrosion resistance, finished in a green colour for easy identification. Operating from -55°C to 125°C, this miniature connector is well suited for use in demanding applications such as industrial electronics, military hardware, aerospace, and electronic communications.
The bayonet coupling mechanism allows for quick and secure mating and unmating, supporting efficient assembly and maintenance processes. The solder termination type offers a robust electrical connection, ensuring reliable operation under vibration and shock conditions.
Manufactured in accordance with MIL-DTL-26482, this connector series is interchangeable and inter-mountable with other MIL-DTL-26482 compliant connectors, affording design flexibility for system integrators.
The connector features a bayonet coupling for quick connect and disconnect. It supports 6 female contacts and operates at 1kV AC voltage. The housing is made of aluminium with cadmium plating and is green in colour. Operating temperature ranges from -55°C to 125°C for a wide range of environments.
Termination is via solder, ensuring reliable electrical connections. It complies with MIL-DTL-26482 military specifications. The miniature connector size is suitable for compact electronic assemblies. Contact materials include copper alloy with gold plating for enhanced conductivity and corrosion resistance.
This product is ideal for industrial, military, aerospace, and commercial electronic component applications requiring rugged, reliable circular connectors. Browse the Amphenol series and EnvMart's wide range of MIL spec connectors for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage rating of 1kV AC.
It supports 6 female contacts.
The operating temperature range is from -55°C to 125°C.
The housing is made of aluminium with cadmium plating, and the contacts are copper alloy with gold plating.
It uses solder termination for reliable electrical connections.
It features a bayonet coupling mechanism for quick connect and disconnect.
Yes, it complies with MIL-DTL-26482 military specifications.
The shell size is designated as size 10.
The housing is green in color, which aids in easy identification.
It is suitable for industrial, military, aerospace, and commercial electronic component applications.
This connector is classified as a miniature size, making it suitable for compact electronic assemblies.
The connector is manufactured in China.
