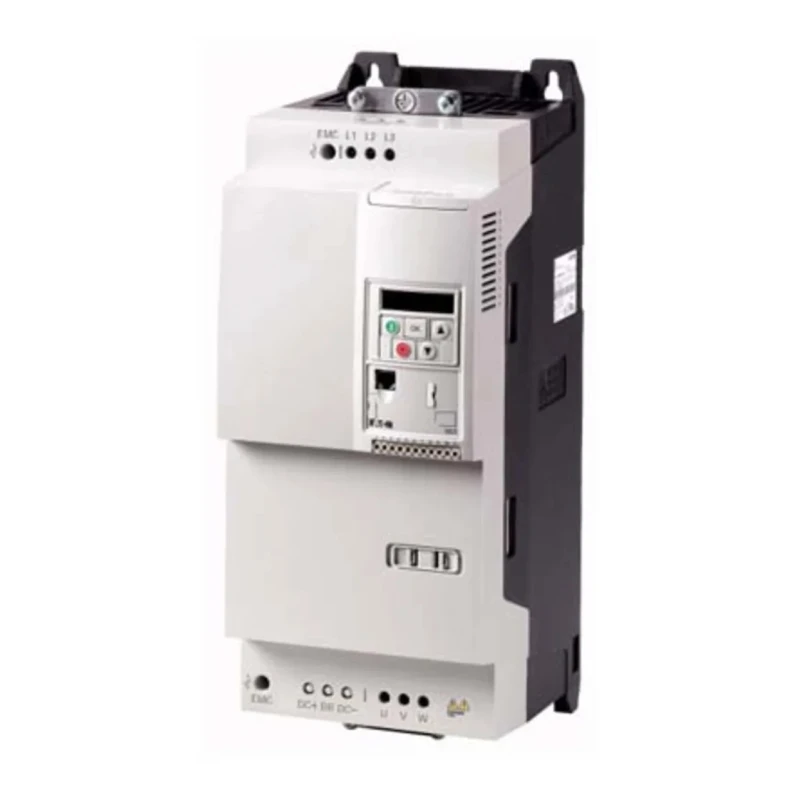

Eaton Inverter Drive 22 kW 3 Phase DC1 Series 400V ac 46 A 185782 DC1-34046FB-A20CE1

Eaton 185782 DC1-34046FB-A20CE1 Inverter Drive 22 kW 3 Phase DC1 Series 400V ac 46 A is a compact variable frequency drive designed for simple industrial applications demanding efficient motor control at 400V AC. This drive supports three-phase asynchronous motors and provides vector control for precise speed and torque regulation.

The DC1 series allows fast commissioning with fourteen core parameters, enabling reduced setup time at site. It includes a digital LED display to facilitate user-friendly monitoring and adjustment. The drive supports integrated CANopen and Modbus communication interfaces, allowing seamless connectivity within automation systems.

Constructed with a flange mount type, the drive measures 173 mm in length, 211 mm in width, and 418.5 mm in depth, providing a compact footprint for industrial installations. Its IP20 enclosure rating offers protection against solid objects, making it suitable for controlled environments.

Operating temperature tolerance extends to 50°C maximum, accommodating a wide range of factory conditions. The drive delivers a maximum output current of 46A and operates at an output frequency of up to 16 kHz. It incorporates advanced features including V/Hz control with start voltage boost and slip compensation alongside an integrated PI controller.

With a high overload capability of 150% for 60 seconds and 175% for 2 seconds, the drive ensures reliability under transient heavy loads. It is certified to multiple international standards such as CE, UL, and cUL, confirming compliance and safety for global industrial use.

Typical applications include machine building for pump control, fans, and conveyor systems. Eaton's DC1 series supports scalable automation with available expansion modules to extend I/O capabilities, optimizing performance in industrial manufacturing, HVAC, water treatment, and other commercial sectors.

The drive features three-phase input and motor connection compatibility. Commissioning is simplified with fourteen basic parameters and an intuitive LED display. Modbus and CANopen interfaces enable integration with industrial network systems.

Robust overload handling supports demanding operational cycles. Compact flange-mounted design fits diverse installation requirements. Energy-saving technology aligns with environmental sustainability goals. Compatible with asynchronous electric motors commonly used in industrial machinery.

Validated against multiple international certifications ensuring global applicability. Explore Eaton inverter drives and other power control solutions in the Inverter Drives category at EnvMart for your industrial automation requirements.
