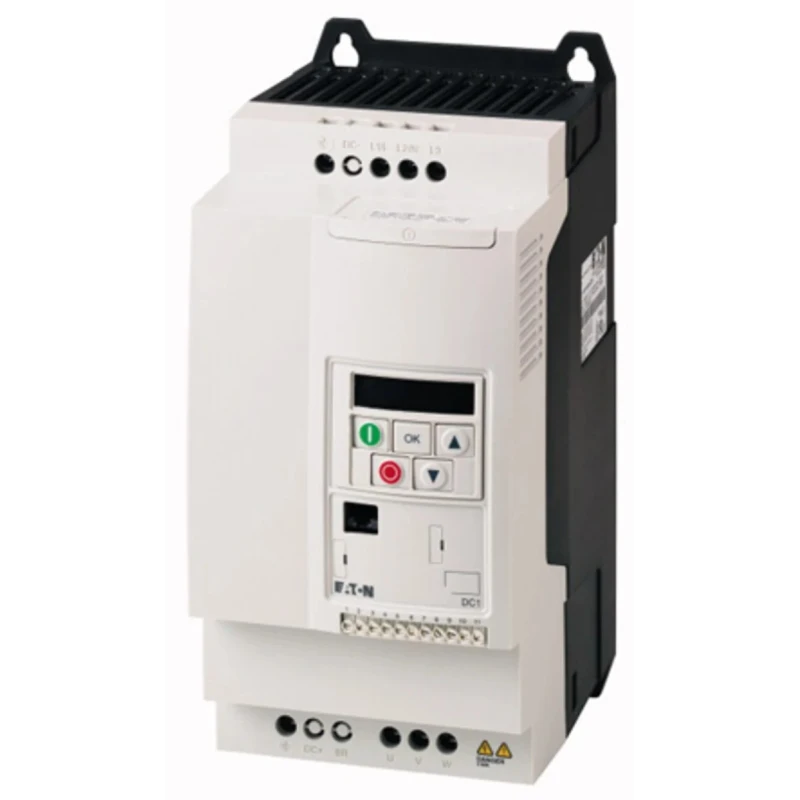

Eaton Inverter Drive 11 kW 3 Phase DC1 Series 400V ac 24 A 185764 DC1-34024FB-A20CE1

Eaton 185764 DC1-34024FB-A20CE1 inverter drive is a compact variable frequency drive (VFD) designed for industrial automation and motor control applications. With an 11 kW power rating and three-phase 400V AC input, this drive efficiently controls asynchronous motors using advanced vector control technology. It provides up to 24 A maximum output current with output frequencies reaching 16 kHz to support diverse speed regulation needs.

The DC1 series offers simple installation and fast commissioning, featuring only 14 basic parameters, making it suitable for quick setup in factory environments. Its flange mounting and compact dimensions (129mm length, 175mm width, and 273mm depth) ensure easy integration into various control panels. The IP20 enclosure rating safeguards the drive against moderate ingress of foreign objects.

This inverter drive includes vector control with V/Hz control, start voltage boost, and slip compensation for optimal motor performance. The integrated PI controller enhances process control accuracy. Communications are supported via CANopen and Modbus protocols, facilitating seamless integration with industrial control systems.

Designed for durability and reliability, the drive supports a large overload capacity of 150% for 60 seconds and 175% for 2 seconds, allowing for handling of transient high loads. The operating temperature range up to +50°C suits many industrial environments. Eaton ensures compliance with international standards including CE, cUL, EAC, RCM, UkrSEPRO, and UL.

Common applications include fans, pumps, and conveyor systems, positioning this DC1 series drive as an energy-efficient choice for process and machine builders. As a Better World product, it supports sustainability goals by reducing energy consumption and carbon footprint.

The DC1 series is designed for simple applications with fast commissioning via 14 basic parameters. Offers vector control drive type with V/Hz control including start voltage boost and slip compensation. Features digital LED display and compatibility with asynchronous motors.

Compact design with flange mount, overall dimensions 129mm length, 175mm width, and 273mm depth. IP20 rated enclosure suitable for protected industrial environments. Supports output frequency up to 16 kHz and large overload capability of 150% for 60 seconds.

Operating temperature range up to +50°C with efficient thermal management. Includes integrated PI controller and communication interfaces CANopen and Modbus. Meets international standards CE, cUL, EAC, RCM, UkrSEPRO, and UL certifications.

Ideal for mass production applications such as fans, pumps, and conveyor systems. Explore the Eaton brand and the DC1 series Inverter Drives category to find advanced drives for your automation and motor control projects on EnvMart.
