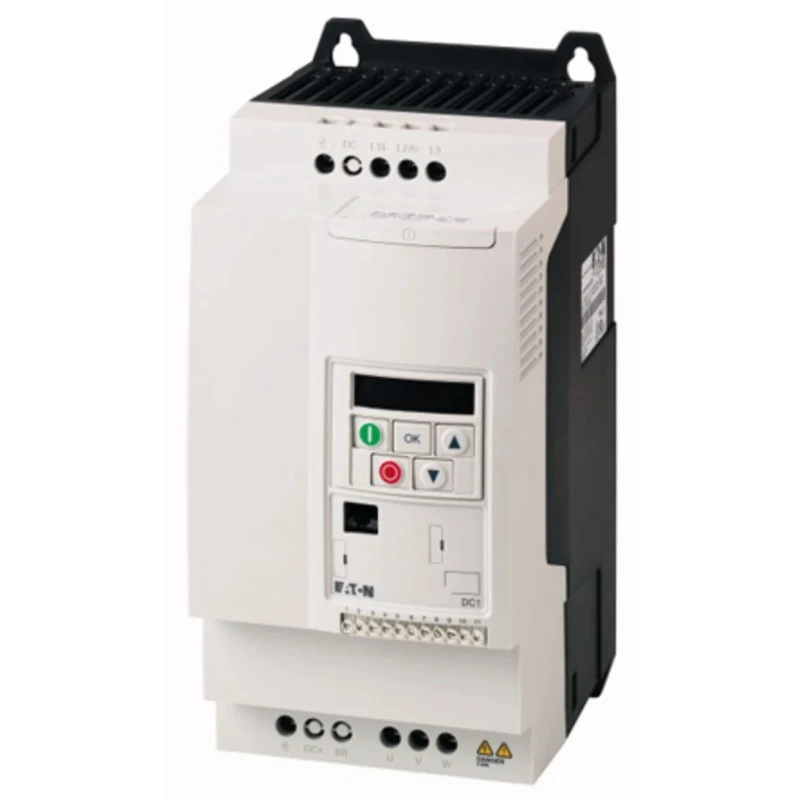

Eaton Inverter Drive 7.5 kW 3 Phase Vector Control Flange Mount DC1 Series 400V 18A 185761 DC1-34018FB-A20CE1

Eaton 185761 DC1-34018FB-A20CE1 Inverter Drive is a compact, flange-mounted variable frequency drive rated at 7.5 kW, designed to control three-phase asynchronous motors efficiently. Featuring vector control technology, this drive provides precise motor speed and torque control with minimal effort.

The DC1 series inverter is optimized for straightforward applications with fast setup requiring only 14 basic parameters, making it ideal for OEMs and machine builders focusing on mass production. The compact design reduces footprint and facilitates easy integration into electrical cabinets or motor enclosures.

This inverter drive supports a maximum output current of 18 A and operates at an output frequency of 50 Hz. It is rated IP20 for protection against solid objects and dust, suitable for standard industrial environments. The unit operates reliably in temperatures up to 50°C and features a robust flange mount for secure installation.

Key functional features include a large overload capacity of 150% for 60 seconds and 175% for 2 seconds, digital LED display for real-time status and diagnostics, an integrated PI controller, and communication protocols including CANopen and Modbus for system integration.

Typical applications include controlling fans, pumps, and conveyor systems in industrial automation, HVAC, and manufacturing processes. Eaton's commitment to energy efficiency is reflected in this Better World product, helping reduce energy consumption while improving motor performance.

Supports three-phase input and motor connection for industrial applications. Equipped with a digital LED display for easy monitoring. Allows for fast commissioning with only 14 basic parameters. Features integrated PI controller and vector control drive type for precise motor control.

Compact flange mount design simplifies installation and maintenance. Provides a large overload capability: 150% for 60 seconds, 175% for 2 seconds. IP20 rated enclosure suitable for indoor industrial environments. Compatible with asynchronous motors running at 50 Hz output frequency.

Designed for operating temperatures up to 50°C and a supply voltage of 400V AC. Compliant with CE, cUL, EAC, RCM, UkrSEPRO, and UL standards.

Originating from the United Kingdom, this Eaton inverter drive ensures high reliability and compliance with international standards. It is a top choice for industrial automation and control gear systems.
