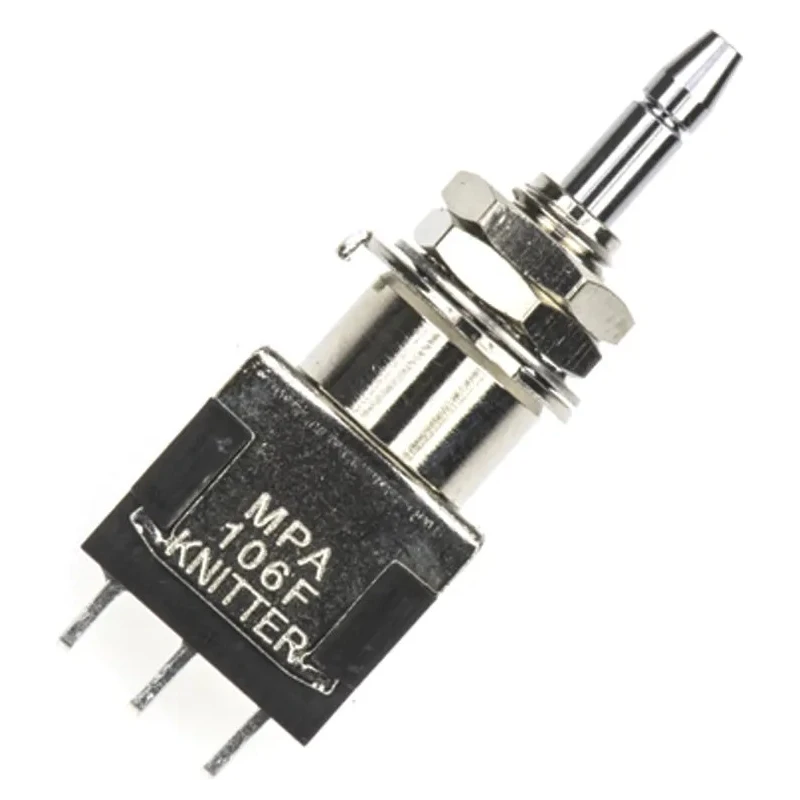

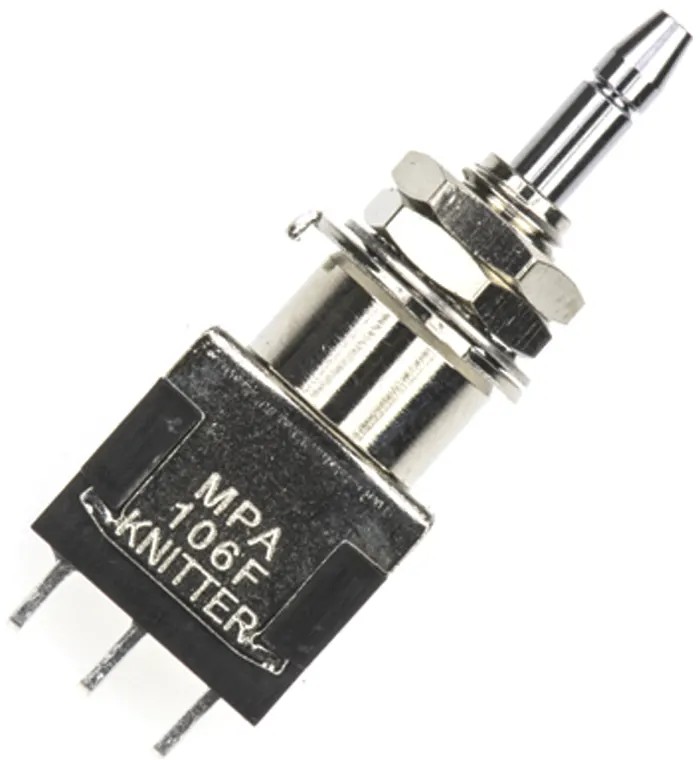

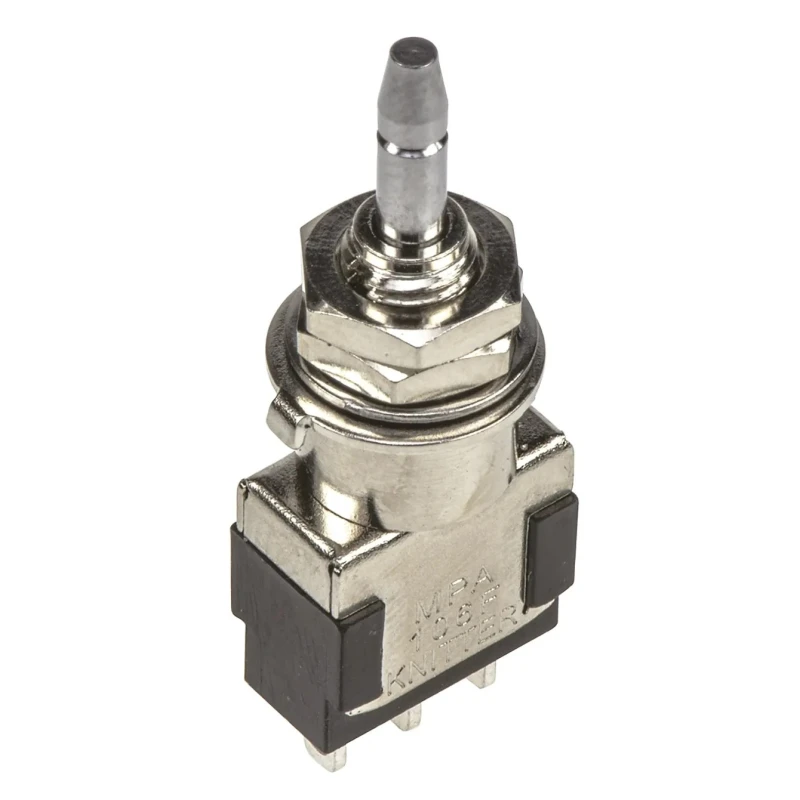

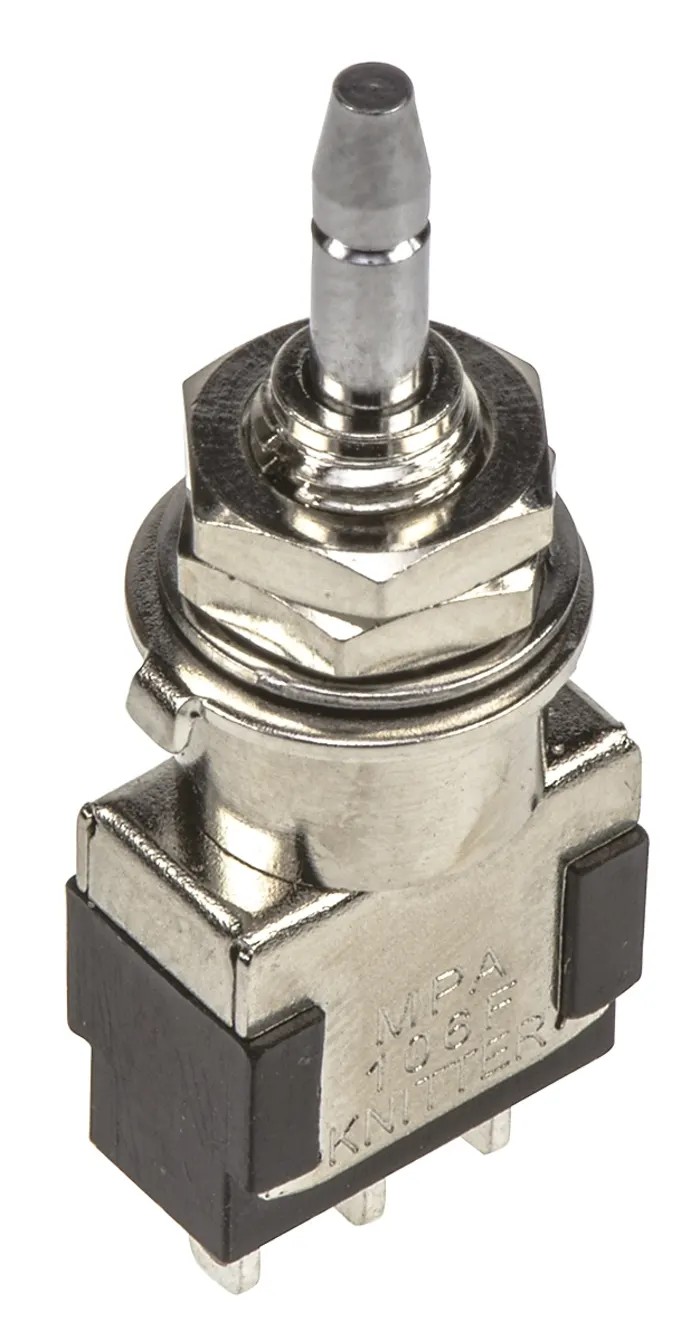

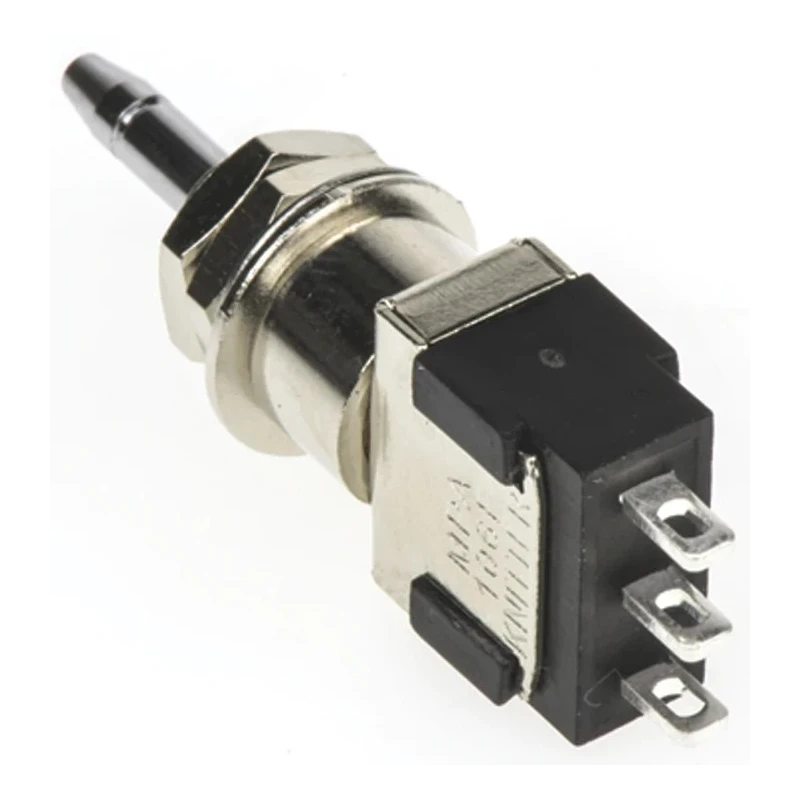

RS PRO Miniature Push Button Switch Momentary Panel Mount 6.4 mm Cutout SPDT White LED IP67 250 V ac MPA 106 F
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | MPA 106 F |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | MPA |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off |
| Panel Cutout Size | 6.4 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL |
| LED Colour | White |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Actuator Style | Cylinder |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
| KNITTER-SWITCH Push Button SwitchBrand | KNITTER-SWITCH |
Key Features
- The switch houses silver actuator color and operates momentarily for precise control.
- It features a solder terminal with a cylinder actuator style for reliable connectivity.
- The product supports a maximum switch contact current of 3A at 250 V ac rating.
- It is epoxy sealed with a flux proof construction and offers a maximum operating temperature of 120°C.
- The switch complies with CSA and UL standards ensuring industrial safety.
- It has less than 10mΩ contact resistance and insulation resistance over 1000MΩ.
- Designed for panel mounting, this miniature push button switch is part of the MPA series.
- The IP67 rating provides waterproof protection suitable for harsh environments.
Product Description
The KNITTER-SWITCH MPA 106 F is a miniature push button switch designed for panel mounting applications requiring reliable momentary switching. This product operates at an AC voltage of 250 V and incorporates a SPDT contact configuration with a white LED indicator and IP67 waterproof rating, making it suitable for industrial, automation, and electrical control circuits.
The switch features a silver actuator color with a cylinder actuator style and solder terminals ensuring proper connection. It is epoxy sealed with a flux proof construction for durability and offers a maximum operating temperature of 120°C, supporting operations in a wide temperature range of -45°C to +140°C.
This MPA series switch achieves a contact resistance of less than 10mΩ and insulation resistance greater than 1000MΩ, with a switch contact current of up to 3A at 250 V ac, meeting CSA and UL certifications for industrial safety.
Panel cutout size is precisely 6.4 mm, and the switch configuration is on-off, momentary type, encouraging swift operational control in electrical and automation systems.
The product is designed for use in commercial and industrial settings requiring sealed, robust push button switches, such as manufacturing plants, automation control panels, HVAC equipment, and electrical instrumentation.
The switch operates momentarily and features IP67 waterproof protection. The solder terminals and cylinder actuator style provide reliable function. Silver actuator with white LED indicator enhances visibility. Epoxy-sealed design ensures high durability under industrial conditions.
CSA and UL standards approval guarantee compliance and safety. The switch can handle 3A current at 250 V ac for varied electrical loads. Operating temperature range allows use in extreme environments. Mounting hardware is supplied with the switch; however, the actuator button is sold separately and requires a suitable 15mm diameter button for operation.
Explore more Push Button Switches in the KNITTER-SWITCH MPA and waterproof MPE series for diverse industrial control applications available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switch contact current for this model is 3A at a voltage rating of 250 V ac.
This model has an IP67 rating, providing waterproof protection suitable for harsh environments.
The required panel cutout size for installation is 6.4 mm.
The switch operates within a temperature range of -45°C to +140°C, with a maximum operating temperature of 120°C.
This model features solder terminals for reliable connectivity.
The switch complies with CSA and UL standards, ensuring industrial safety.
It has an SPDT (Single Pole Double Throw) contact configuration and operates as a momentary switch.
The actuator is styled as a cylinder and is silver in color, enhancing visibility.
Yes, a suitable 15mm diameter actuator button is required for operation, but it is sold separately.
This switch is designed for commercial and industrial settings, including manufacturing plants, automation control panels, HVAC equipment, and electrical instrumentation.
The contact resistance of this model is less than 10mΩ, ensuring efficient operation.
The indicator LED on this switch is white, enhancing visibility during operation.
