| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.9mm |
| Length | 2.7mm |
| Model | UDZVTE-1722B |
| Mount Type | Surface |
| Series | UDZV |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323F |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 200mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 22V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 100Ω |

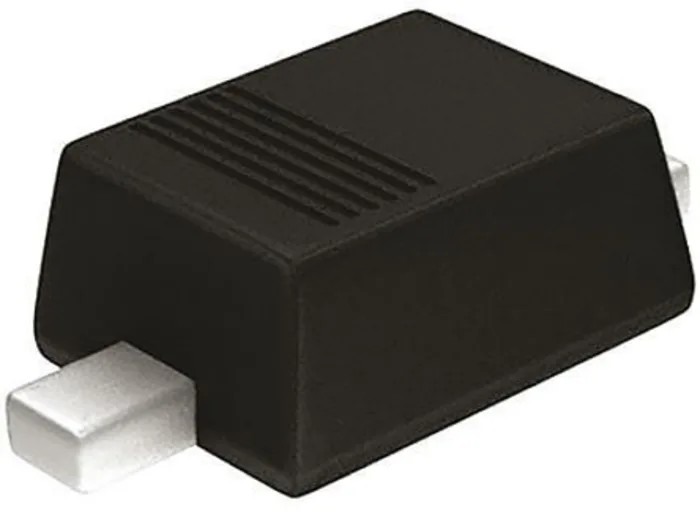

The ROHM UDZVTE-1722B is a 22 V nominal single Zener diode designed for precise voltage regulation applications in surface mount technology. With a maximum power dissipation of 200 mW, this diode supports reliable operation in electronic circuits that demand stable voltage maintenance.
Featuring a 2-pin surface mount SOD-323F package, this device offers compactness and ease of installation, making it suitable for densely packed PCBs in industrial and commercial electronic products. The diode's maximum operating temperature of 150°C ensures it meets the demands of high-temperature environments.
It delivers a maximum reverse leakage current of just 100 nA, improving efficiency by minimizing unwanted power loss. The Zener impedance is rated at a maximum of 100 ohms, providing improved voltage stability under varying load conditions. Test current is specified at 5 mA, denoting standard operating test parameters.
This diode is ideal for use in power supply circuits, voltage stabilization, and protective circuitry across industries such as semiconductor device manufacturing, industrial instrumentation, telecommunications, and consumer electronics.
Provides stable voltage regulation with a nominal Zener voltage of 22 V. Single diode configuration suitable for precise electronic circuit applications. Maximum power dissipation of 200 mW ensuring reliable operation under load.
Compact surface mount package (SOD-323F) with two pins allows for PCB space-saving. Maximum operating temperature of 150°C for high-temperature environment usage. Low maximum reverse leakage current of 100 nA minimizing power losses.
Maximum Zener impedance of 100 ohms to maintain voltage stability. Ideal for use in industrial electronics, semiconductors, power supply regulation, and precision circuits.
This product is part of the UDZV series by ROHM, known for high reliability and performance. It supports a wide range of electronic applications requiring voltage reference and protection. Its surface mount design fits modern electronic assembly methods enhancing manufacturing efficiency and product durability.
