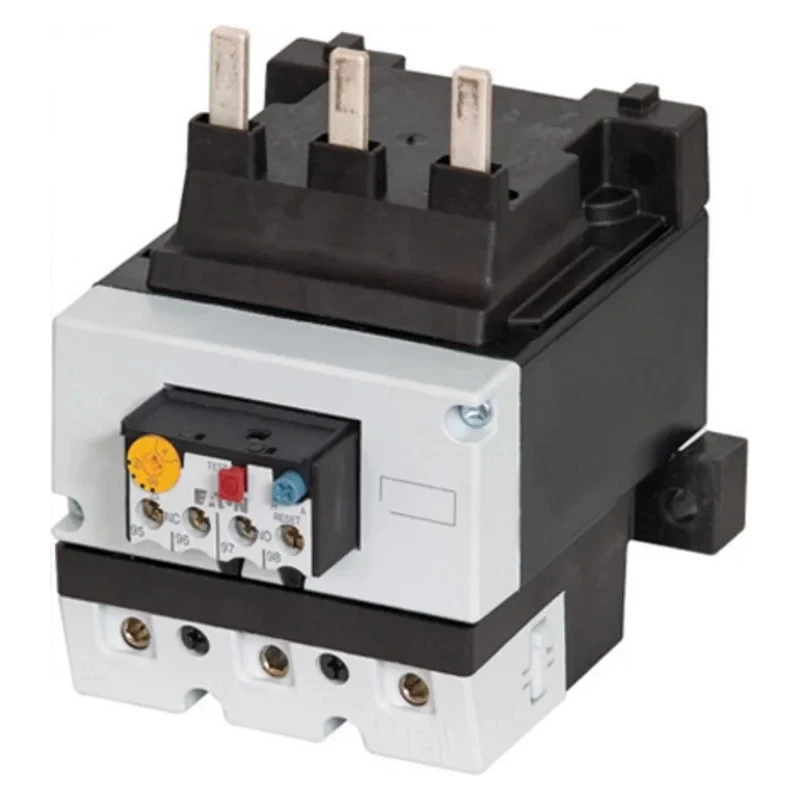

Eaton ZB Overload Relay, 1 NO/1 NC, 125A Relay Contact Current, 95-125 A Adjustable Current Range, 18 W 278465 ZB150-125

Eaton 278465 ZB150-125 Overload Relay is a high-quality motor protection relay engineered for industrial automation and control gear applications. Featuring a direct mount type, this relay is compatible with DILM series contactors such as DILM80, DILM95, DILM115, and DILM150, facilitating seamless integration into existing motor control setups.

The device includes one normally open (1 NO) and one normally closed (1 NC) auxiliary contact, providing versatile control and signaling capabilities. Its adjustable current range from 95 to 125 A allows precise matching of motor full load current (FLC) ratings, which is essential for protecting motors against overload conditions. With a relay contact current rating of 125 A and power rating of 18 W, the relay delivers efficient and dependable performance.

Designed for a control voltage of 500 V AC, the overload relay is suitable for use in a variety of industrial electrical environments. The terminal type utilizes screw connections to ensure reliable and secure wiring. Operating temperature range spans from a minimum of -5°C to a maximum of 55°C, making it robust for diverse conditions.

The product is compliant with internationally recognized standards and certifications such as UL (E29184), CE, CSA (C22.2 No. 60947-4-1-14), IEC/EN 60947, UL 508, and VDE 0660, ensuring safety, quality, and reliability in industrial applications. Moreover, the relay features both automatic and manual reset methods, enhancing operational flexibility and user control.

Adjustable current range of 95 to 125 A for precise motor protection. Relay contact current rated at 125 A for robust switching. Low power consumption at 18 W for efficient energy use. Supports control voltage of 500 V AC for industrial compatibility.

Screw terminals for secure electrical connections. Direct mount type suitable for DILM series contactors. Automatic and manual reset capabilities for ease of use. Operating temperature range of -5°C to 55°C for versatile environment use.

Meets UL, CE, CSA, IEC, and VDE standards for safety and performance. Includes 1 NO and 1 NC auxiliary contacts for enhanced control functionality.

This Eaton overload relay is ideal for industrial, manufacturing, automation, electrical control, and commercial motor protection applications. It offers precise motor overload protection, reducing downtime and safeguarding equipment investment. Browse additional Eaton Overload Relays and control gear products on EnvMart for comprehensive motor control solutions.
