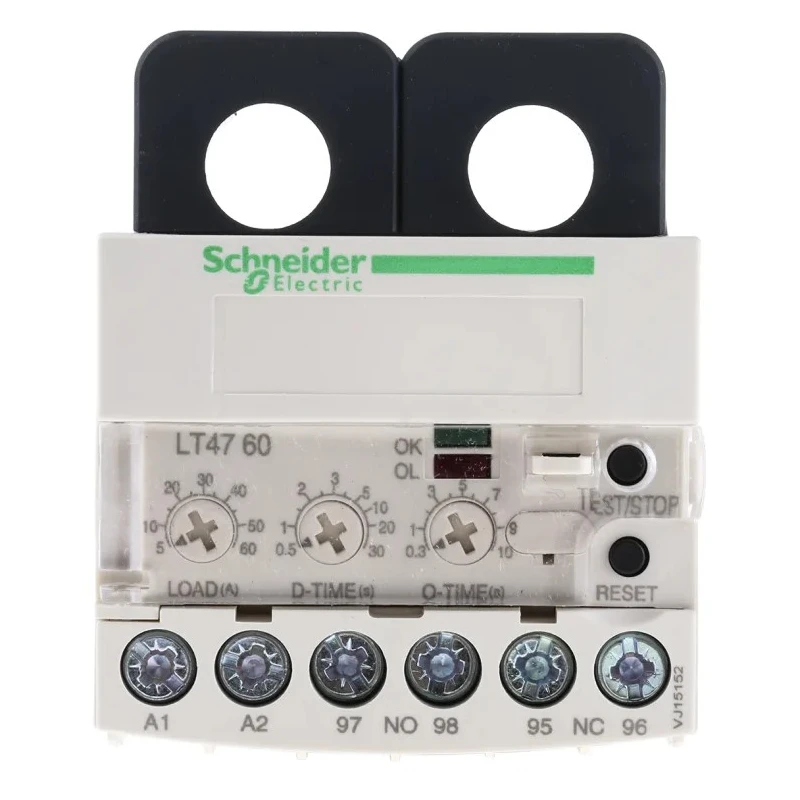

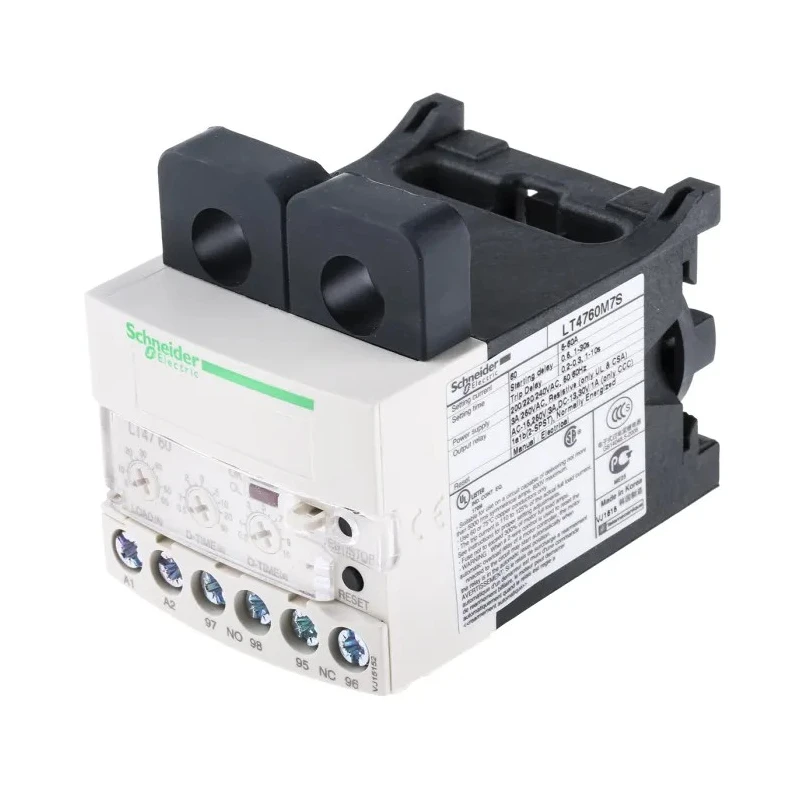

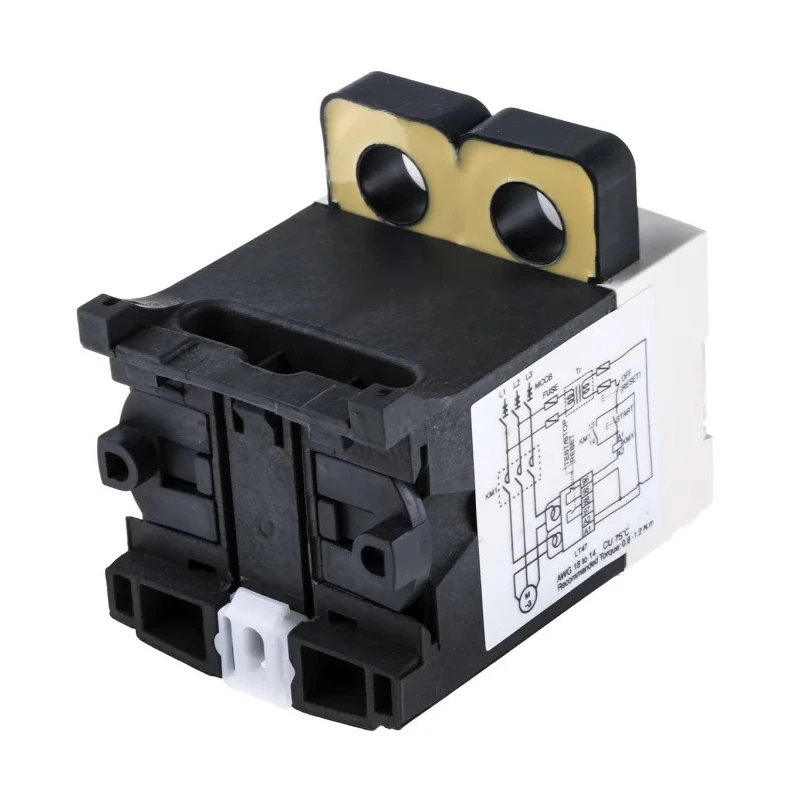

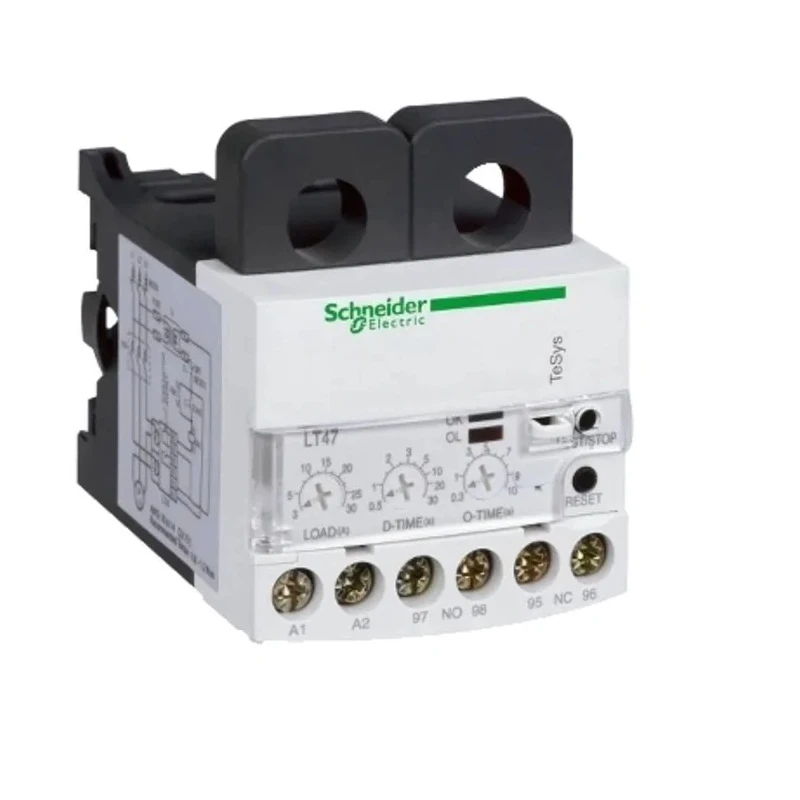

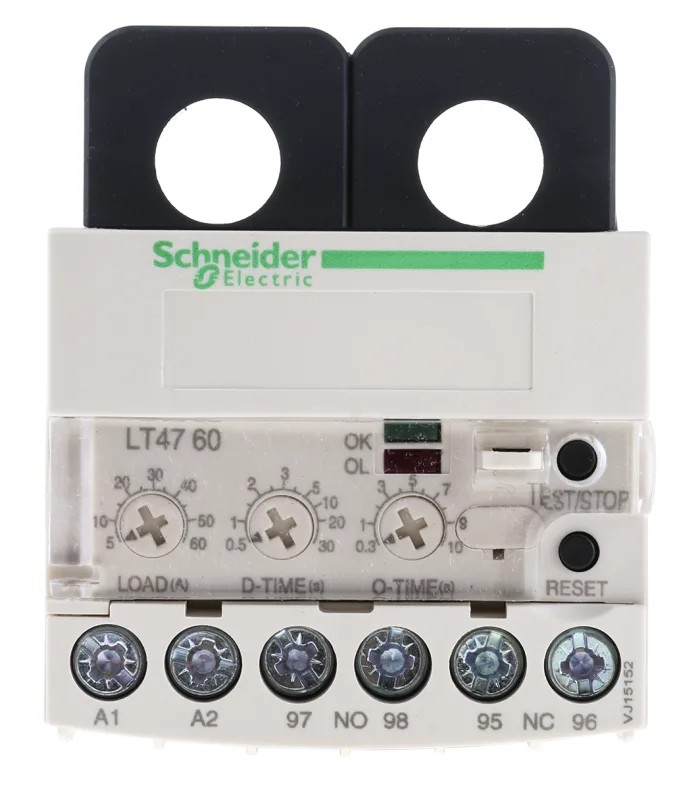

Schneider Electric LT47 Overload Relay 1 NO/1 NC 5A - 60A FLC 60A Contact Rating 55W LT47

Schneider Electric LT47 Overload Relay LT4760M7S is an industrial-grade thermal overload relay designed to prevent motor overheating by stopping excess current flow. It supports a wide adjustable current range from 5 to 60 amperes and a motor full load current rating of 5, 60A with a relay contact current capacity of 60A. This relay uses a direct mount configuration and features screw terminals for secure wiring.

The device operates on a supply voltage of 200 to 240V AC and delivers a power rating of 55W. Its normal state contact configuration includes 1 normally open (NO) and 1 normally closed (NC) contact, providing reliable control and signaling options. It incorporates manual reset via a push button along with LED indicators to facilitate quick inspections.

The enclosure carries an IP20 rating, safeguarding against finger access and objects larger than 12 mm. The device has a compact footprint with dimensions of 70.3 mm width, 71 mm length, and 77.2 mm depth, making it suitable for various industrial mounting options.

Standards compliance includes UL, IEC 60255-6, IEC 60947, and CSA certifications, ensuring robust performance and industry-accepted safety. It is engineered to operate in environments with temperatures ranging from -25°C to 60°C, proving its suitability for demanding industrial applications such as conveyor belts, wastewater management plants, heating systems, and power utilities. The relay is resistant to shock and vibration, enhancing reliability in harsh conditions.

Supports supply voltage of 200 to 240V AC for versatile application. Adjustable current range from 5 to 60 amperes enhances safety and accuracy. Equipped with 1 normally open and 1 normally closed contact configuration. Manual reset method with push button for ease of use.

IP20 rated housing ensures protection against finger access and large tool ingress. Features LED indicators for straightforward visual inspection. Compact dimensions: width 70.3 mm, length 71 mm, depth 77.2 mm. Compliance with UL, IEC 60255-6, IEC 60947, and CSA standards guarantees quality and safety.

Operating temperature range from -25°C to 60°C suitable for industrial environments.

This Schneider Electric LT47 Overload Relay is widely used in industrial, manufacturing, HVAC, and water treatment sectors to protect electrical motors by preventing damage from overload currents. It simplifies maintenance with quick reset and clear visual status indicators.
