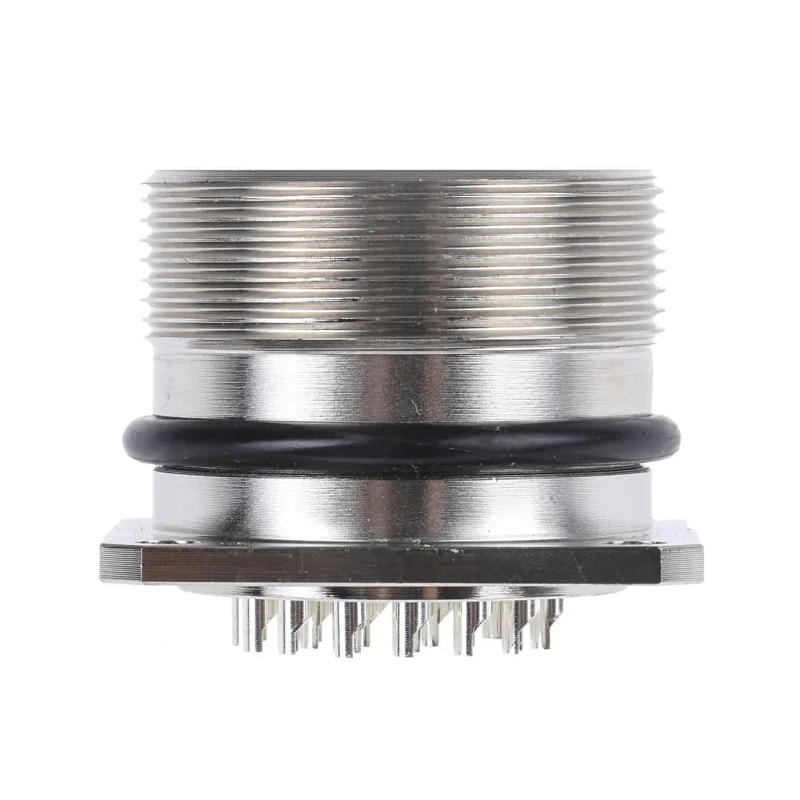

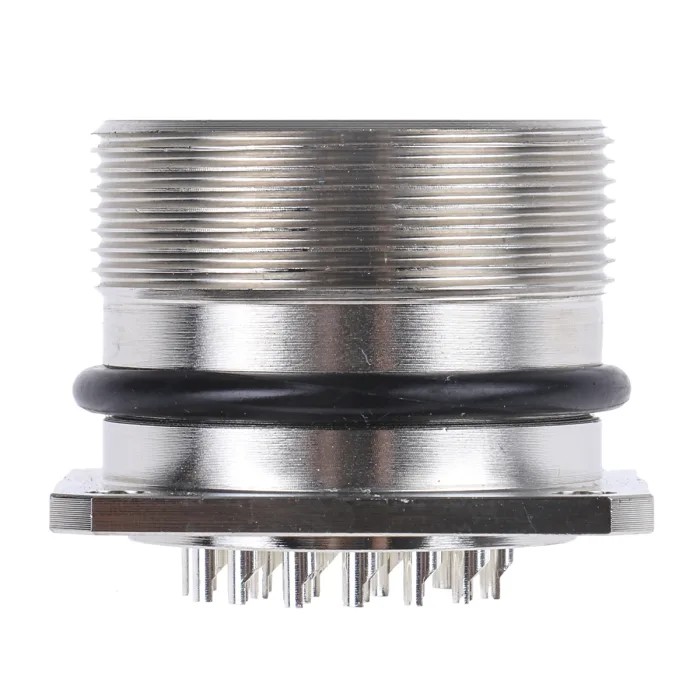

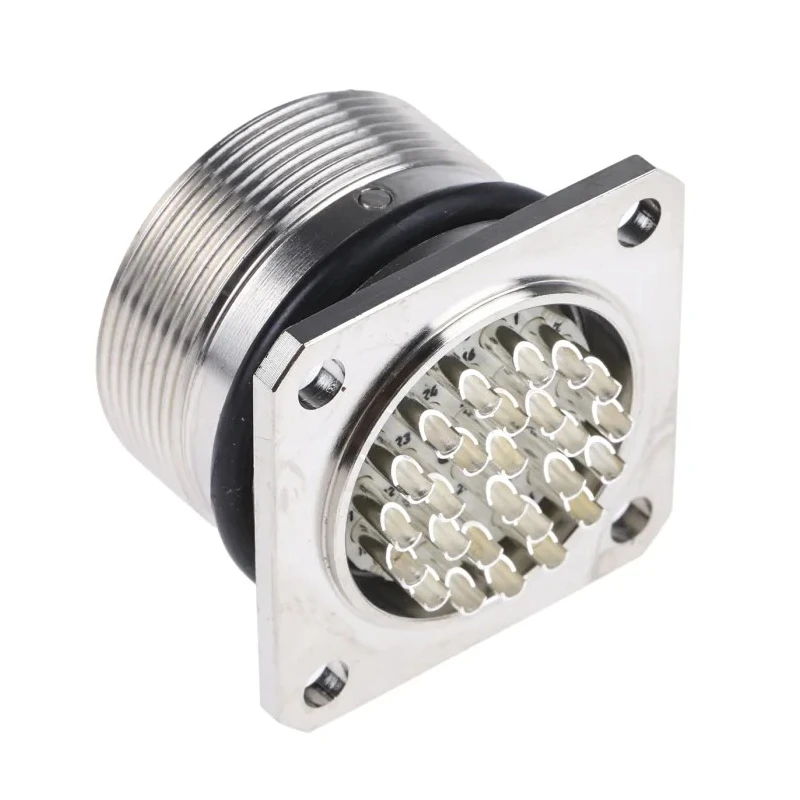

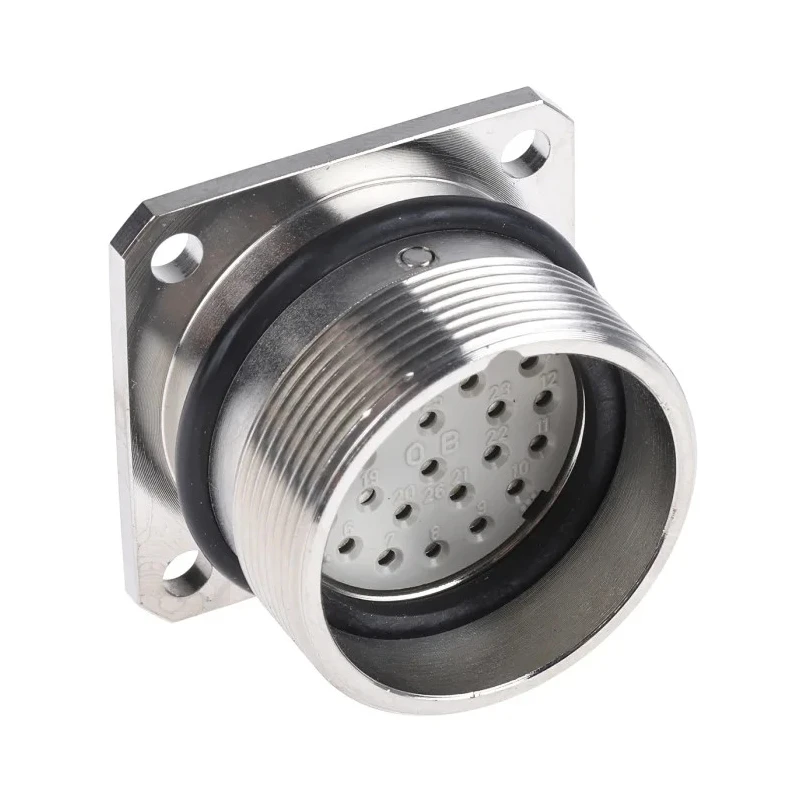

Lapp Circular Connector, 26 Contacts, Panel Mount, 23 mm Size, Socket Female, IP65 Rated, 7.5A, 1.5kV 50201203+00009004
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1.5kV |
| Brand | Lapp |
| Orientation | Straight |
| Current | 7.5A |
| Model | 50201203+00009004 |
| IP Rating | IP65 |
| Mount Type | Panel Mount |
| Housing Material | Copper |
| Contact Material | Copper |
| Series | EPIC R |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 26 |
| Contact Plating | Silver |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Shell Size | 30 mm |
| Mating Type | Screw Lock |
| Connector Size | 23 mm |
| Plug/Socket | Socket |
Key Features
- Compact design with high contact density in a 23 mm shell size.
- Screw locking mating system ensures secure connections.
- Rated for 7.5A current and up to 1.5kV voltage for reliable power transmission.
- Operating temperature range from -40°C to +125°C for harsh environments.
- Corrosion resistant due to copper alloy housing with nickel plating.
- Silver-plated copper contacts for optimum electrical conductivity.
- IP65 rated for dust tight and low-pressure water spray protection.

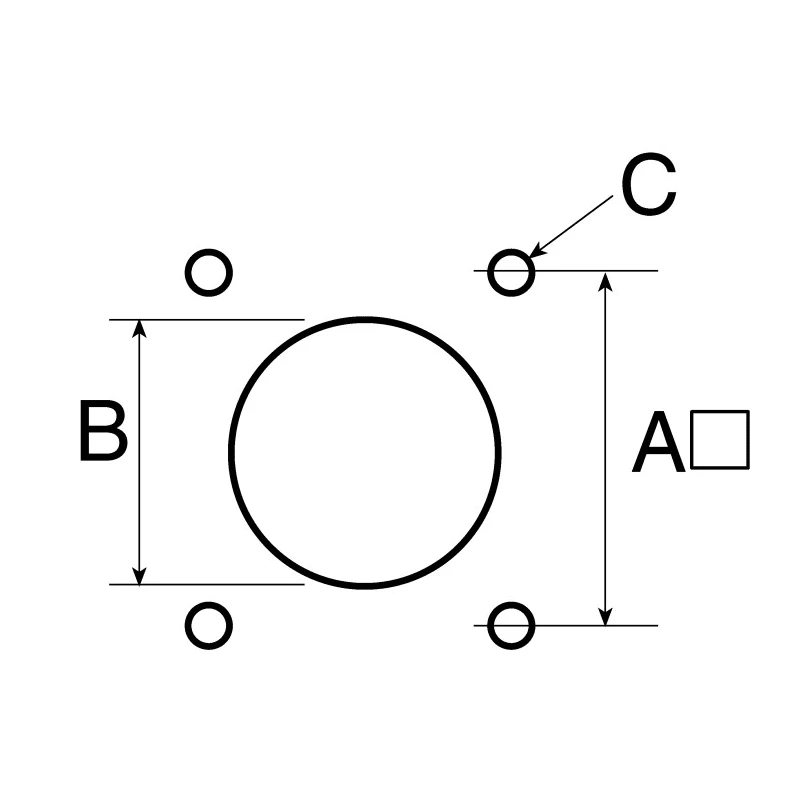

- Panel mount flange enables firm installation on surfaces.
Product Description
Lapp 50201203+00009004 Circular Connector is a 26-contact panel mount socket connector designed for demanding industrial environments. Featuring a compact 23 mm connector size with a robust copper alloy housing plated with nickel, this EPIC R Series connector delivers both mechanical strength and corrosion resistance.
The socket is female gendered and is designed to mate via a screw locking system ensuring secure and reliable connections. Rated for electrical parameters of 7.5A current and 1.5kV voltage, it supports a wide range of industrial signal and power transmissions. Withstanding operating temperatures from -40°C up to +125°C, it performs reliably in harsh conditions.
Its IP65 rating guarantees the connector is dust tight and resistant to low pressure water spray, making it low maintenance for indoor and certain outdoor applications. The panel mount flange provides secure installation by screwing onto surfaces.
Silver-plated copper contacts ensure excellent conductivity and durability. This connector is ideal for use in manufacturing, machine equipment, automation, and measurement control technologies that require robust circular connectors of high contact density.
Compact size with high contact density in a 23 mm shell. Screw locking mating system for secure connections. Current rating of 7.5A and voltage rating of 1.5kV. Wide operating temperature range from -40°C to +125°C. Corrosion-resistant copper alloy housing with nickel plating.
Silver-plated copper contacts for optimum electrical performance. IP65 dust and water resistance rating. Panel mount flange for mechanical stability. Robust design suitable for industrial machine manufacturing and automation.
Part of the EPIC R Series offering versatile Industrial Circular Connectors.
This Lapp circular connector is engineered for professionals seeking reliable, corrosion-resistant connectors suitable for industrial signal and power cable applications. Explore EnvMart's extensive catalog for compatible connectors and accessories to complete your connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 7.5A and a voltage of 1.5kV, suitable for reliable power transmission in industrial applications.
It operates effectively within a temperature range from -40°C to +125°C, making it suitable for harsh environments.
The connector has an IP65 rating, indicating it is dust tight and resistant to low-pressure water spray.
This unit features 26 contacts, providing a high contact density within its compact design.
The housing is made of copper alloy with nickel plating, and the contacts are silver-plated copper, ensuring good conductivity and corrosion resistance.
It is designed for panel mount installation, providing mechanical stability when secured to surfaces.
This model utilizes a screw locking mating system to ensure secure and reliable connections.
The connector has a shell size of 23 mm, allowing for a compact design suitable for various applications.
The termination type for this model is solder, which is commonly used in industrial applications for secure connections.
This connector is manufactured in Germany, reflecting high standards in engineering and manufacturing.
It is part of the EPIC R Series, which includes versatile industrial circular connectors designed for demanding environments.
This model is classified as a socket connector, specifically a female gendered socket designed for panel mounting.
