Phoenix Contact Earth Terminal Block 2 Connections 0.14-4 mm² 8kV Screw Termination ATEX 3044092

Free Delivery in India | Lowest Global Shipping Charges

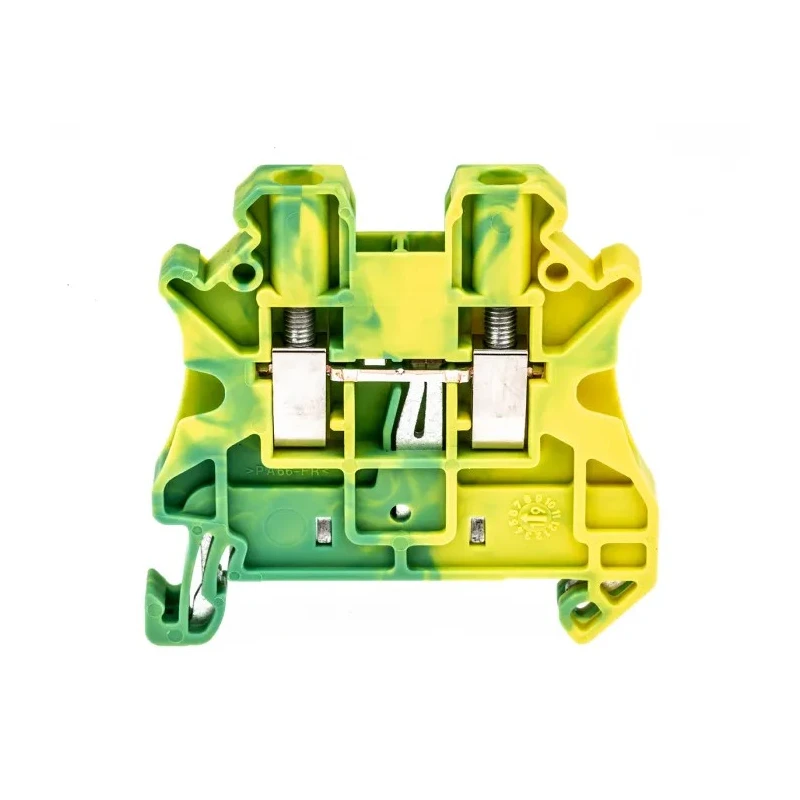

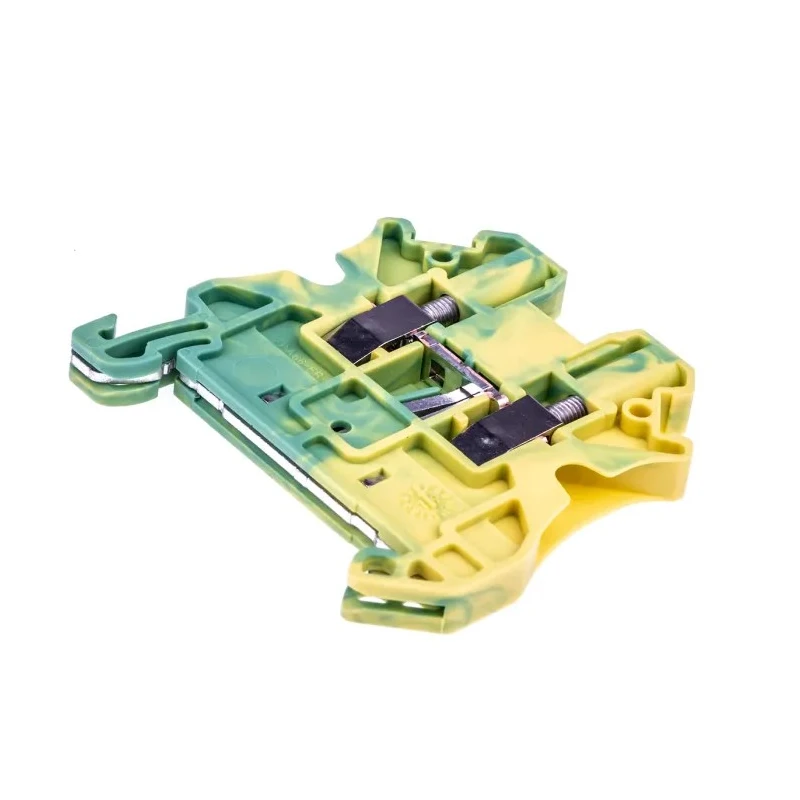

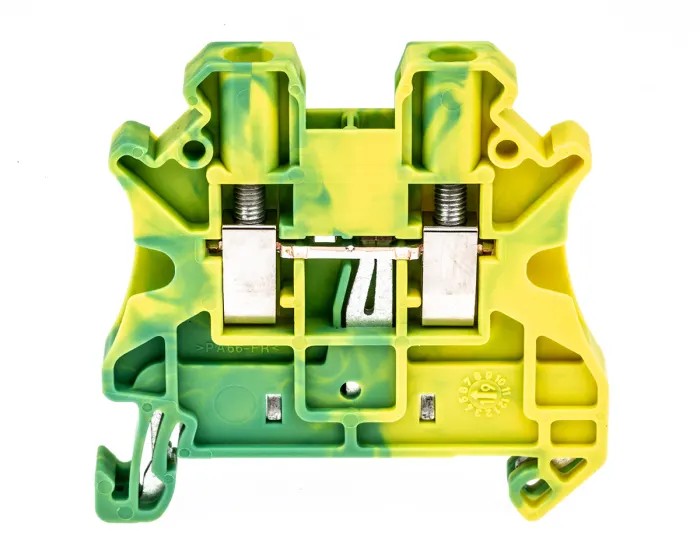

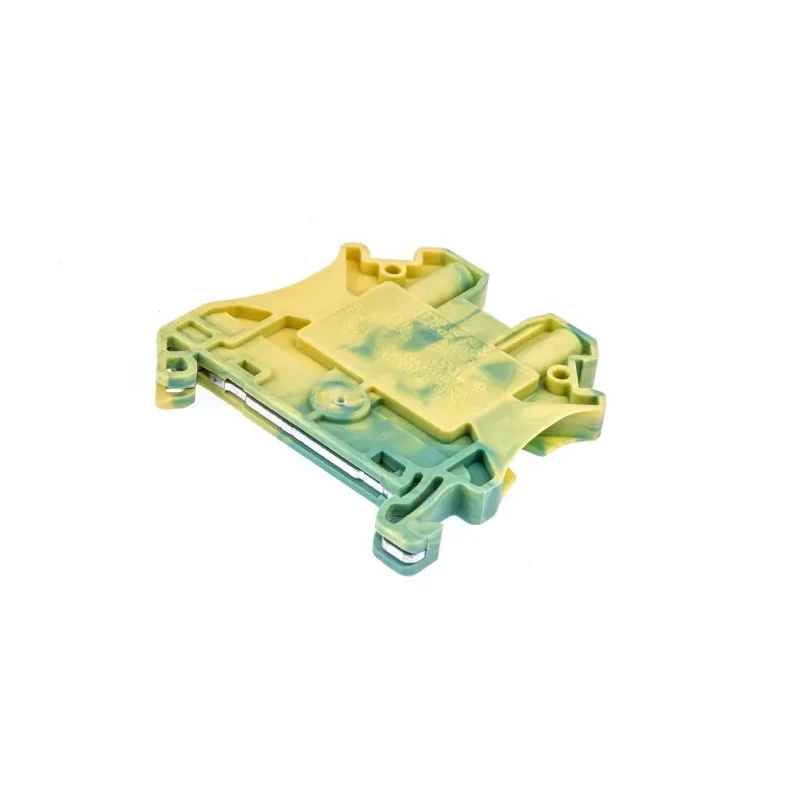

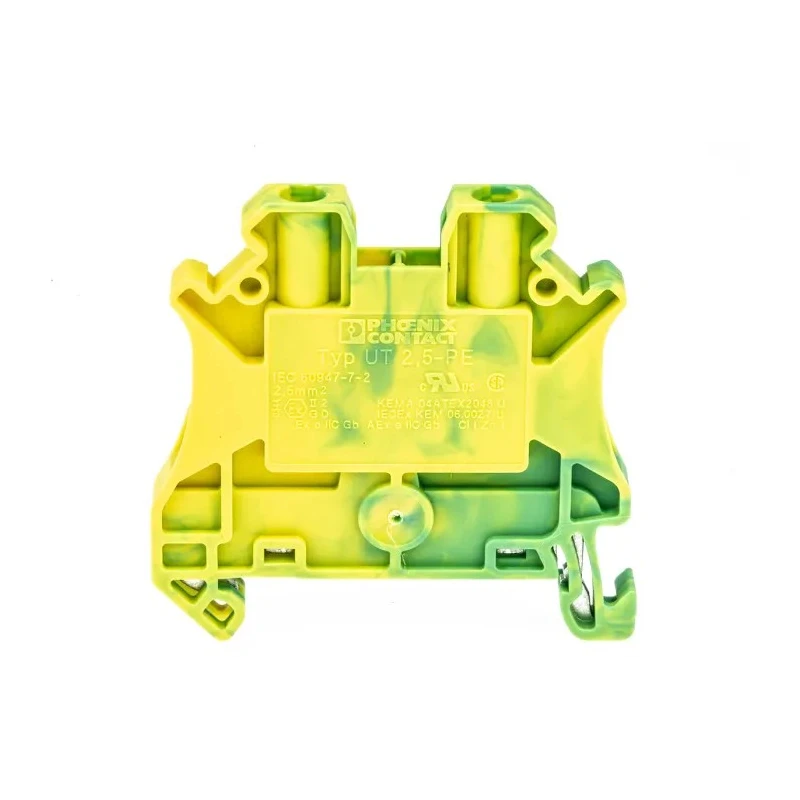

Phoenix Contact Earth Terminal Block 2 Connections 0.14-4 mm² 8kV Screw Termination ATEX 3044092

Name: Phoenix Contact Earth Terminal Block 2 Connections 0.14-4 mm² 8kV Screw Termination ATEX 3044092
Brand: PHOENIX CONTACT
SKU: 200619
Price: 5.86 USD
Availability: InStock



Category Earth Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	8kV
Brand	Phoenix Contact
Colour	Green, Yellow
Model	3044092
Series	UT 2.5-PE
Termination Type	Screw
Maximum Operating Temperature	110°C
Number of Levels	1
Sub Type	Single-Level
Minimum Operating Temperature	-50°C
Pitch	5.2mm
Hazardous Area Certification	ATEX
Standards/Approvals	ATEX, CCC, CSA, cULus, EAC Ex, IECEx, UL
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	12AWG
Cable CSA	0.14, 4mm²
Din rail terminal block,UT2.5 PE,yel/grnBrand	Phoenix Contact

Key Features

The terminal accepts wire sizes from 0.14 mm² to 4 mm² or 26 to 12 AWG.
It supports a voltage rating of up to 8kV ensuring reliable insulation.
The terminal uses screw type termination for secure and durable connections.
Constructed with a green and yellow housing for easy identification as an earth terminal.
Certified with ATEX and meets multiple standards including CCC, CSA, cULus, EAC Ex, and IECEx.
Rated for operation in harsh environments with temperatures from -50°C to 110°C.
The unit mounts easily on DIN rails enabling quick installation in industrial panels.

Product Description

Phoenix Contact 3044092 Earth Terminal Block is engineered to provide dependable grounding solutions in electrical and electronic systems. The single-level design includes 2 connection points accommodating a wide range of wire gauges from 0.14 mm² (26 AWG) to 4 mm² (12 AWG), making it versatile for various industrial applications.

Its robust green and yellow PA housing distinctly identifies the block as an earth terminal, while offering excellent insulation protection and mechanical resilience. The screw termination type ensures secure and maintenance-friendly wiring connections.

Designed for durability, this terminal block operates reliably across a broad temperature range from -50°C to 110°C, suited for demanding industrial and harsh environmental conditions. Its DIN rail mounting feature allows for rapid and secure integration into electrical panels and assemblies.

This model holds certifications including ATEX for hazardous area use, along with compliance to CCC, CSA, cULus, EAC Ex, and IECEx standards, ensuring safety and regulatory adherence in various global markets.

The terminal block accepts 0.14 mm² to 4 mm² wire cross-sections. Rated for voltages up to 8kV to support high insulation requirements. Durable PA body with flame retardant rating UL 94-V0. Screw-type termination for reliable electrical connection.

Wide operating temperature range of -50°C to 110°C. Suitable for railway, machine building, and plant engineering industries. Easy installation with DIN rail clipping mechanism. ATEX certified for safe use in potentially explosive atmospheres.

The Phoenix Contact 3044092 terminal block is an ideal choice for ensuring safe grounding in industrial electrical installations, combining safety, reliability, and ease of use. Browse EnvMart for more Phoenix Contact terminal blocks and grounding solutions.
