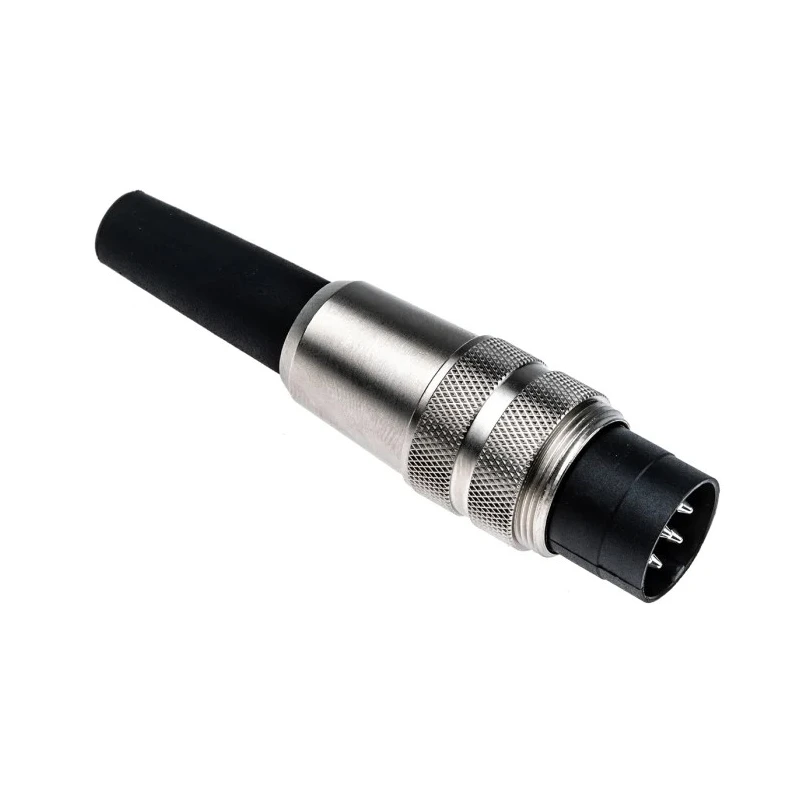

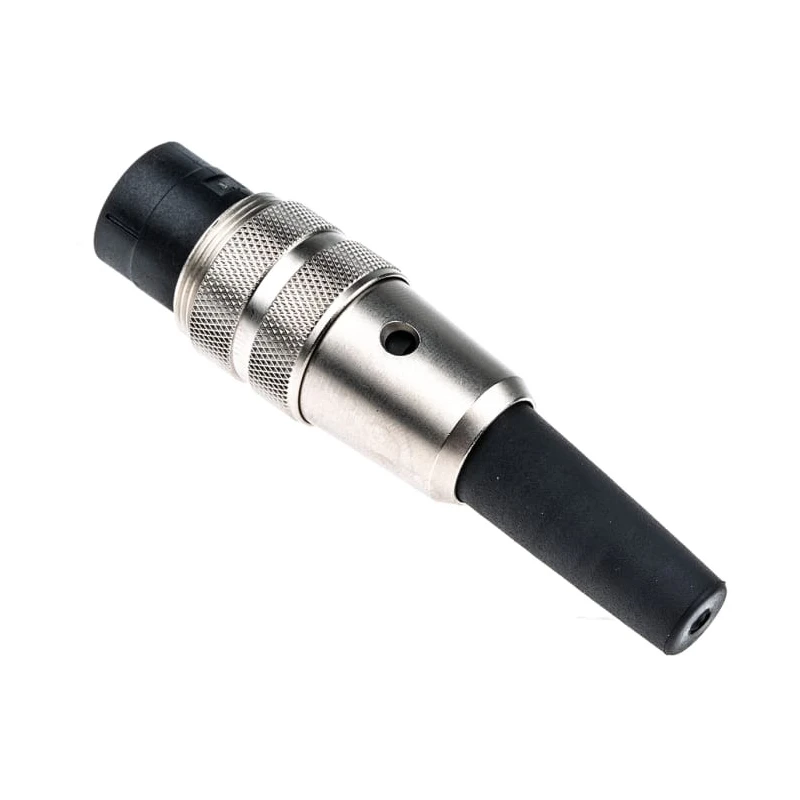

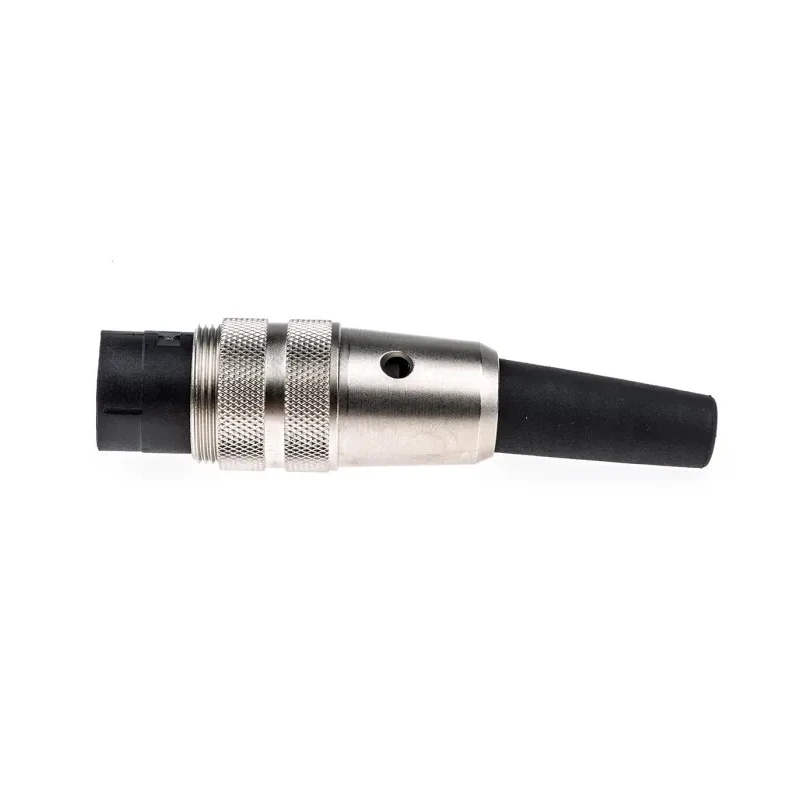

binder Circular Connector 7 Contacts Cable Mount M16 Plug Male IP40 Polyamide Housing 680 Series 09-0325-00-07
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V |
| Brand | binder |
| Orientation | Straight |
| Current | 5A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | DIN EN 61076-2-106 |
| Contact Plating | Silver |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shell Size | 18.5 mm |
| Mating Type | Screw Lock |
| Connector Size | M16 |
| Plug/Socket | Plug |
Key Features
- Compact miniature design for ease of integration into electronic systems.
- Robust polyamide housing with silver-plated brass contacts ensuring durability and reliable conductivity.
- Solder termination with screw lock mating mechanism guarantees secure connections.
- Wide operating temperature range from -40°C to 85°C suitable for industrial environments.
- IP40 ingress protection rating, suitable for indoor applications without exposure to dust or moisture.
- Designed for 125V voltage and 5A current rating, compatible with standard circular DIN connectors.
- Features internal bend protection and strain relief for enhanced cable retention.
- Complies with DIN EN 61076-2-106 standards ensuring industrial reliability.
Product Description
binder 09-0325-00-07 circular connector is a 7-contact cable mount M16 plug with a male contact configuration, part of the 680 series. It operates at 125V with a current rating of 5A and features robust polyamide housing with silver-plated brass contacts ensuring reliable electrical connectivity and mechanical durability.
This miniature connector from binder's 680 series is designed with a compact form factor suitable for industrial applications. It incorporates a screw locking mechanism for secure mating and an internal bend protection sleeve with strain relief to maximize cable stability and retention.
Rated with IP40 ingress protection, this connector is intended for indoor use where exposure to dust and moisture is minimal. Its operational temperature range extends from -40°C to 85°C, making it fit for various industrial environments requiring temperature resilience.
The connector complies with DIN EN 61076-2-106 standards and ensures compatibility with other circular DIN-style connectors. The 680 series is known for robustness and EMI shielding performance due to its metal shells.
Compact miniature design for industrial electronic systems. Durable polyamide housing with silver-plated brass contacts. Screw lock mating for secure mechanical connection. Internal bend protection sleeve for cable stability.
Supports operating temperatures from -40°C to 85°C. Rated IP40, suitable for indoor environments without dust or moisture. Compliant with DIN EN 61076-2-106 connectivity standards. Designed for 125V voltage and 5A current applications.
Ideal for industrial instrumentation, automation, and medical equipment. Manufactured in Germany ensuring high reliability and quality.
The binder 680 series connectors provide high mating cycle durability and are perfect for industrial automation, process control, machine tools, and plant equipment electrical connections. Their design offers a reliable and compact connectivity solution in controlled indoor environments.
Explore the range of binder connectors and other Industrial Circular Connectors on EnvMart for trusted connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 125V voltage and has a current rating of 5A.
It has an IP40 ingress protection rating, making it suitable for indoor applications without exposure to dust or moisture.
The operating temperature range for this connector extends from -40°C to 85°C, allowing it to function in various industrial environments.
It features a solder termination type, ensuring secure electrical connections.
This connector has 7 contacts in a male configuration.
The housing is made of polyamide, and the contacts are silver-plated brass, ensuring reliable conductivity and mechanical durability.
The connector has a shell size of 18.5 mm and is classified as an M16 size connector.
It uses a screw lock mating mechanism for secure connections between the plug and socket.
It complies with DIN EN 61076-2-106 standards, ensuring compatibility with other circular DIN-style connectors.
This connector is manufactured in Germany, ensuring high reliability and quality.
It is ideal for industrial instrumentation, automation, and medical equipment, providing reliable connectivity in controlled environments.
Yes, it includes an internal bend protection sleeve with strain relief to enhance cable stability and retention.
