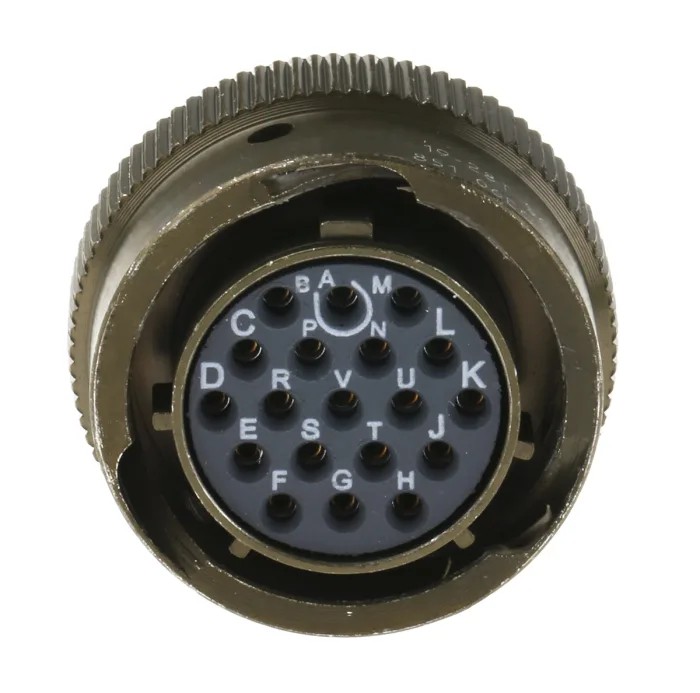

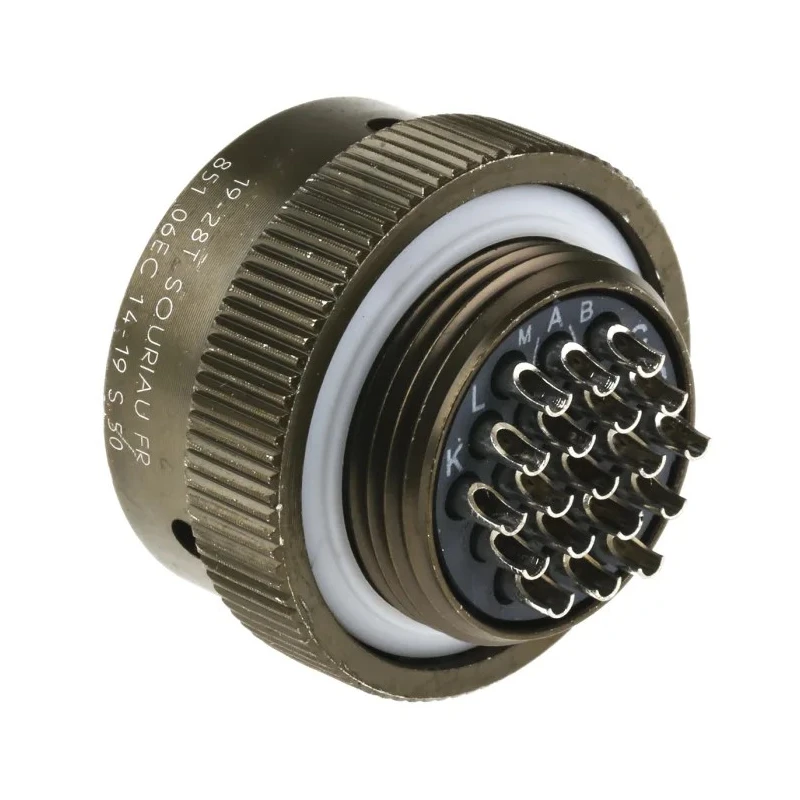

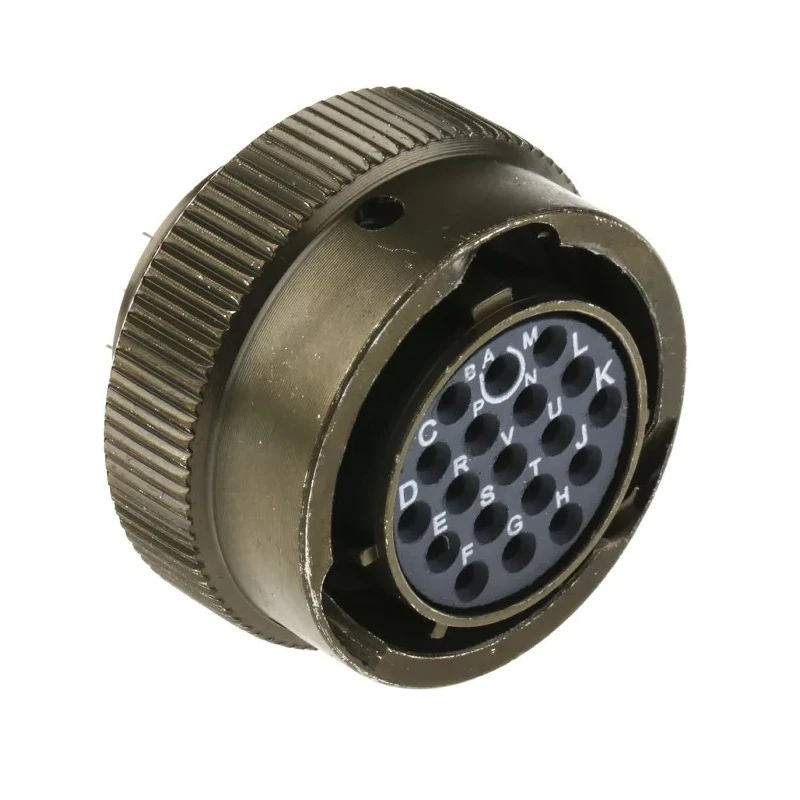

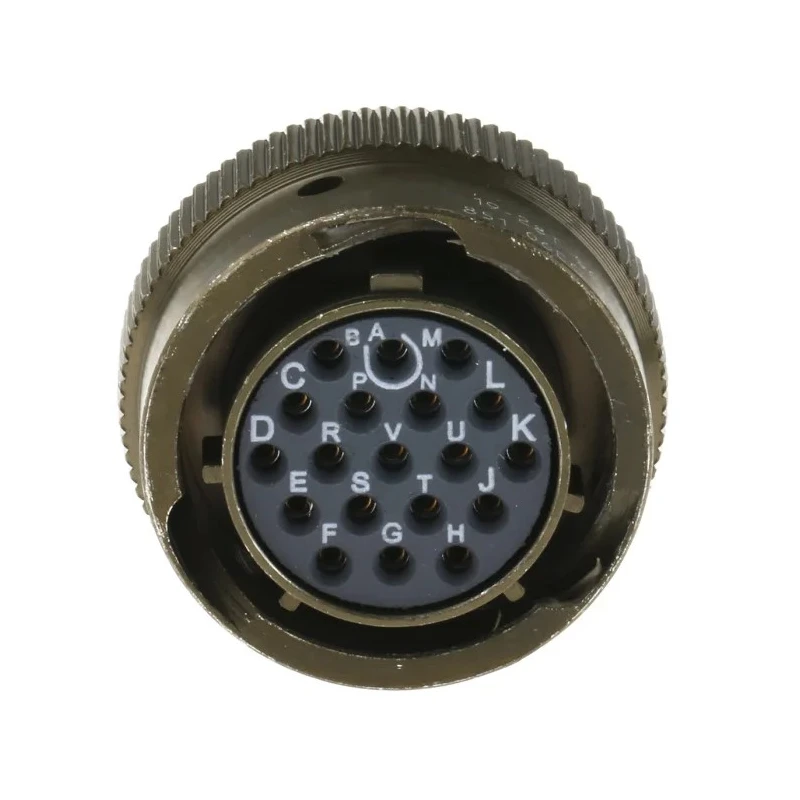

Souriau Sunbank by Eaton MIL Spec Circular Connector Copper Alloy Straight 19 Way Cable 7.5A 500V Series 851 85106EC1419S50
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 500V |
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 7.5A |
| Model | 85106EC1419S50 |
| IP Rating | IP65 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Series | 851 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Contact Plating | Gold |
| Number of Contacts | 19 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 14 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Shell Plating | Olive Drab Cadmium |
| Meets applicable national and international standards and specifications | NFC 93422 |
Key Features
- This MIL Spec connector features a copper alloy body with gold-plated contacts for enhanced conductivity.
- Rated for 7.5A current and 500V voltage ensuring robust performance.
- The straight cable mount design with bayonet mating type ensures secure connections.
- Meets MIL-DTL-26482 military standard and IP65 rating for dust and water resistance.
- Operates within a temperature range of -55°C to 125°C suitable for harsh environments.
- Shell plating uses olive drab cadmium for durability and corrosion resistance.
- Solder termination for 24 to 18 AWG cables provides flexible wiring options.
- Designed originally for aeronautics and weapons industry, now widely used in industrial automation and instrumentation.
Product Description
Souriau Sunbank by Eaton 85106EC1419S50 is a Mil Spec Circular Connector that provides durable and high-quality electrical interfacing solutions for industrial, aerospace, and military applications. This 19 way connector features a copper alloy construction with gold-plated female contacts, designed to carry currents up to 7.5A and withstand voltages of 500V.
The connector incorporates a straight cable mount with a bayonet mating type, enabling secure and quick connection and disconnection. It is compliant with the MIL-DTL-26482 military standard and is rated IP65, ensuring protection against dust ingress and water jets.
Operating within a broad temperature range from -55°C to 125°C, this connector suits harsh industrial environments such as instrumentation, transportation, machine tools, and industrial automation. The shell is plated with olive drab cadmium, granting corrosion resistance and durability. The solder contacts accommodate cable cross-sections from 0.21 to 0.93 mm² (24 to 18 AWG), suitable for various wiring needs.
Originally designed for the aeronautics and weapons industries, the 851 series is now widely adopted across many sectors requiring reliable and rugged circular connectors. Manufactured in France and compliant with national standard NFC 93422, this connector is engineered for performance and longevity.
This MIL Spec connector features a copper alloy body with gold-plated contacts for enhanced conductivity. Rated for 7.5A current and 500V voltage ensuring robust performance. The straight cable mount design with bayonet mating type ensures secure connections.
Meets MIL-DTL-26482 military standard and IP65 rating for dust and water resistance. Operates within a temperature range of -55°C to 125°C suitable for harsh environments. Shell plating uses olive drab cadmium for durability and corrosion resistance.
Solder termination for 24 to 18 AWG cables provides flexible wiring options. Designed originally for aeronautics and weapons industry, now widely used in industrial automation and instrumentation. Manufactured in France following NFC 93422 standard compliance.
Explore more high-performance circular connectors in the Electronics & Electricals category at EnvMart, built for demanding industrial and military applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum current of 7.5A.
It can handle voltages up to 500V.
This model operates within a temperature range of -55°C to 125°C.
It uses solder termination for cables ranging from 24 to 18 AWG.
This connector features 19 contacts.
The connector has an IP65 rating, providing protection against dust and water ingress.
It features a bayonet mating type for secure connections.
The connector has a copper alloy body with gold-plated contacts for enhanced conductivity.
It meets the MIL-DTL-26482 military standard.
It is manufactured in France.
The shell is plated with olive drab cadmium for durability and corrosion resistance.
It is suitable for industrial automation, instrumentation, and originally designed for aeronautics and weapons industries.
