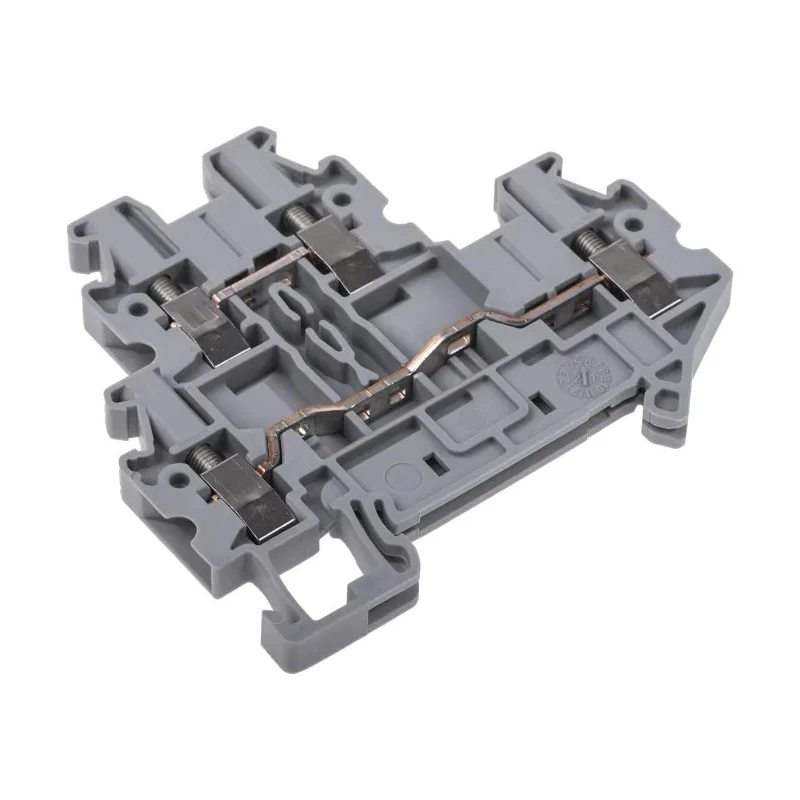

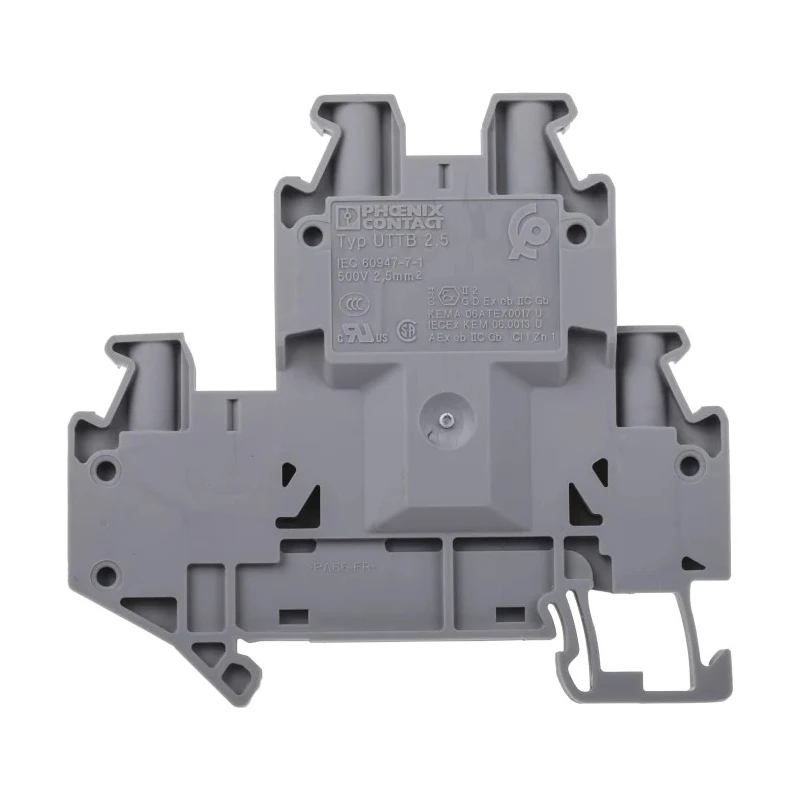

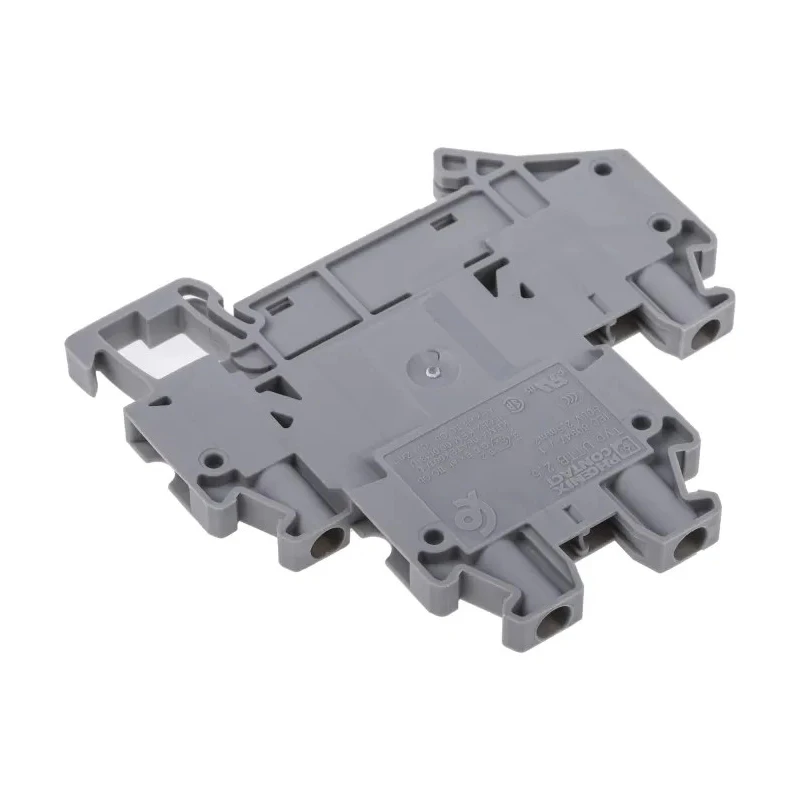

Phoenix Contact Double Level Terminal Block UTTB 2.5 Series 500V 24A Screw Termination Grey 3044636
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3044636 |
| Series | UTTB 2.5 |
| Termination Type | Screw |
| Maximum Operating Temperature | 110°C |
| Number of Levels | 2 |
| Sub Type | Multi-Level |
| Minimum Operating Temperature | -60°C |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | UL, RS, PRS, IECEX, IEC 60947-7-1, EAC Ex, EAC, DNV GL, cULus, cUL, CSA, ATEX |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 0.14, 4mm² |
| Terminal Block Current | 24A |
Key Features
- The grey terminal block supports wires from 26 AWG to 12 AWG sizes.
- Screw termination ensures secure and robust wire connections.
- The multi-level design offers two levels for up to four circuit connections.
- ATEX certification allows use in potentially explosive atmospheres between -60°C and 110°C.
- The housing is UL 94-V0 certified, limiting fire spread for enhanced safety.
- Constructed with robust copper alloy metals for superior electrical and thermal conductivity.
- Compact dimensions of approximately 69.9 mm length and 5.2 mm width save DIN rail space.
- Reakdyn principle prevents screw loosening, reducing maintenance needs.
Product Description
Phoenix Contact 3044636 Double Level Terminal Block from the UTTB 2.5 Series is a high-quality connector designed for use in industrial and control applications requiring reliable multi-level wire connections at 500V and 24A.
The grey terminal block accommodates wire sizes ranging from 0.14 mm² to 4 mm² (26 AWG to 12 AWG), enabling versatile application in various electrical installations. Its screw-type termination offers a secure and firm connection, enhanced by the Reakdyn principle that prevents loosening of screws under vibration or thermal cycling.
This terminal block features two levels in a compact form factor with dimensions of approximately 69.9 mm length and 5.2 mm width, ensuring space-saving installation on DIN rails, suitable for complex wiring setups.
Certified for ATEX hazardous area use, it is rated for operation in temperatures from -60°C up to 110°C, making it suitable for demanding industrial environments including railway, plant engineering, and industrial controls. The housing is UL 94-V0 certified for fire safety, and the copper alloy inner components ensure effective electrical conductivity and thermal performance.
Supports wire sizes 26 AWG to 12 AWG for flexible connectivity. Screw termination with Reakdyn principle prevents accidental screw loosening. Compact size minimizes footprint on DIN rails. ATEX certified for safe usage in explosive atmospheres.
Fire-retardant UL 94-V0 rated housing enhances operational safety. Robust construction with copper alloy components for excellent conductivity. Designed for durable performance in industrial, railway, and plant engineering applications.
Set your wiring installations on a reliable foundation with Phoenix Contact's innovative UTTB 2.5 Series Double Level Terminal Block. Explore more Terminal Block solutions and components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block is rated for a maximum voltage of 500V.
It has a current capacity of 24A.
This terminal block supports wire sizes ranging from 26 AWG to 12 AWG.
The approximate dimensions are 69.9 mm in length and 5.2 mm in width.
It features a screw termination type for secure connections.
The operating temperature range is from -60°C to 110°C.
Yes, it is ATEX certified for use in potentially explosive atmospheres.
It is constructed with robust copper alloy metals for effective electrical and thermal conductivity.
The housing is UL 94-V0 certified, which limits fire spread, and it complies with several standards including IEC 60947-7-1.
The Reakdyn principle prevents screw loosening under vibration or thermal cycling, reducing maintenance needs.
It is designed for industrial, railway, and plant engineering applications requiring reliable multi-level wire connections.
The country of origin for this terminal block is Germany.
