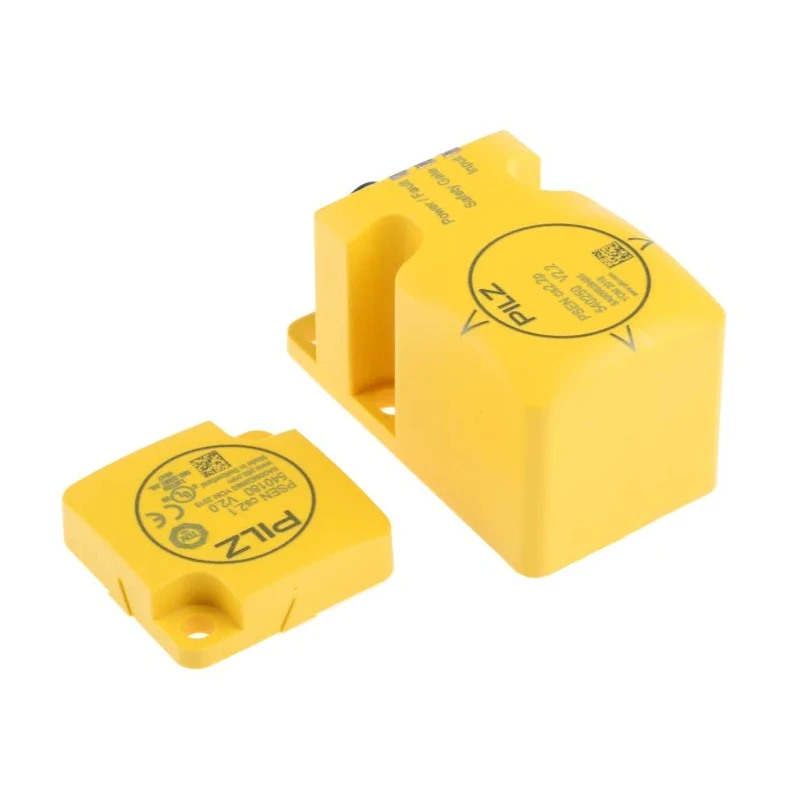

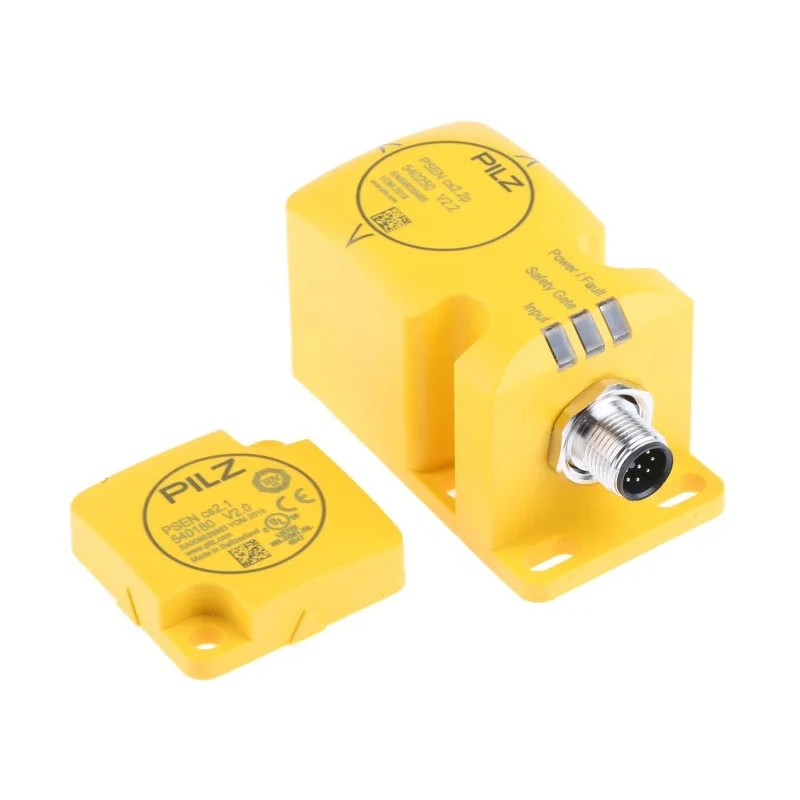

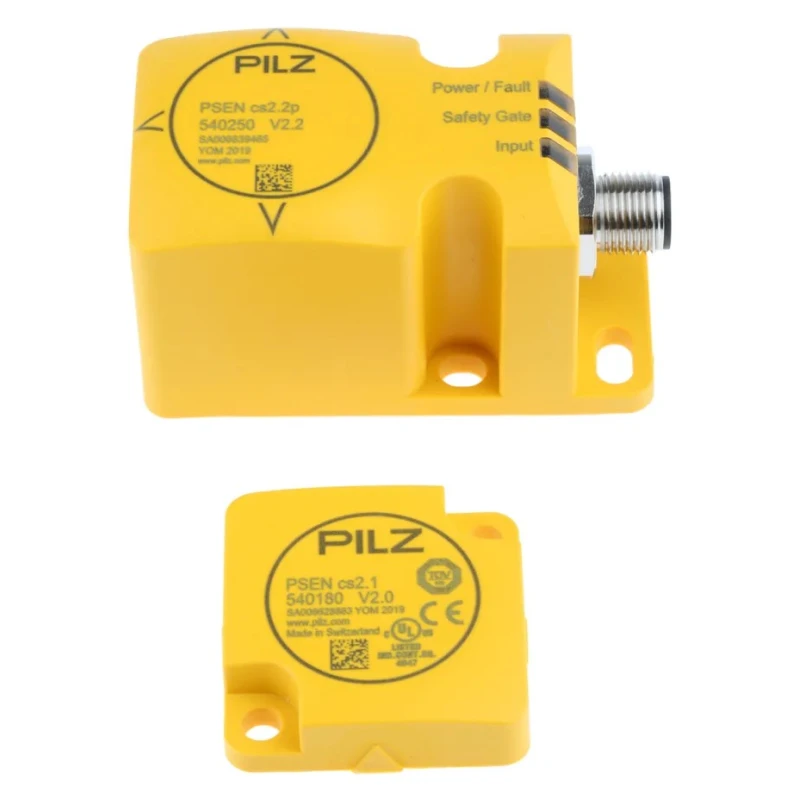

Pilz PSENmag Series Non-Contact Safety Switch Plastic Housing 24V DC M12 540200

Pilz 540200 PSENmag Series Transponder Non-Contact Safety Switch offers state-of-the-art safety technology with a plastic rectangular housing and M12 8-pin male connection. Operating at 24V DC, this device provides reliable actuation via unique coded transponder principle ensuring high safety integrity with 2 OSSD RFID safety outputs.

The switch guarantees a switching distance of 15 mm and is supplied with an actuator compatible with the PSEN cs3.1 series. It supports up to four directions of actuation and can be serially connected with more than 10 safety switches in a sequence to meet Cat 4 of EN 954-1 safety standards, enabling flexible and safe integration into industrial safety systems.

Engineered with an IP67 rating, the plastic housing ensures protection against dust and water, making it suitable for harsh industrial environments. Its operating temperature range of -25°C to 70°C further extends usability across diverse settings.

This switch meets numerous international certifications and approvals such as EN 60947-5-3, EN 62061 SIL CL 3, EN ISO 13849-1 PLe Cat. 4, CE, UL, TÜV, FCC, BG, CCC, and IC, ensuring compliance with stringent safety standards worldwide.

Typical applications include machine safety monitoring, safety interlock on access gates and guards, and automation safety circuits in industrial environments requiring non-contact sensing for preventing hazards.

Rectangular body style with yellow plastic housing ensures robust protection. Unique coded actuator included, compatible with PSEN cs3.1 series actuators. Switching distance of 15 mm with 2OSSD RFID safety outputs for reliable detection.

IP67 rated housing for dust and water ingress protection, suitable for industrial use. Operating temperature range from -25°C to 70°C for versatile environments. Compliant with relevant standards including EN 60947-5-3, EN ISO 13849-1 PLe Cat. 4, SIL CL 3, CE, UL, TÜV, FCC, and more.

M12, 8-pin male connection ensures easy integration into safety systems. Supports series connection of more than 10 switches up to Cat 4 of EN 954-1 safety category. Ideal for industrial safety applications requiring non-contact sensing technology.
