TDK-Lambda CCG15 Series Isolated DC/DC Converter 12V DC Output 1.3A, 15.6W, 18-76V Input, Through Hole Package

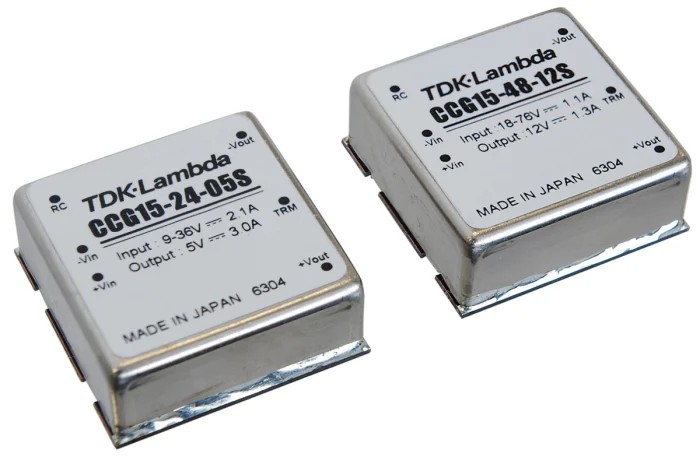

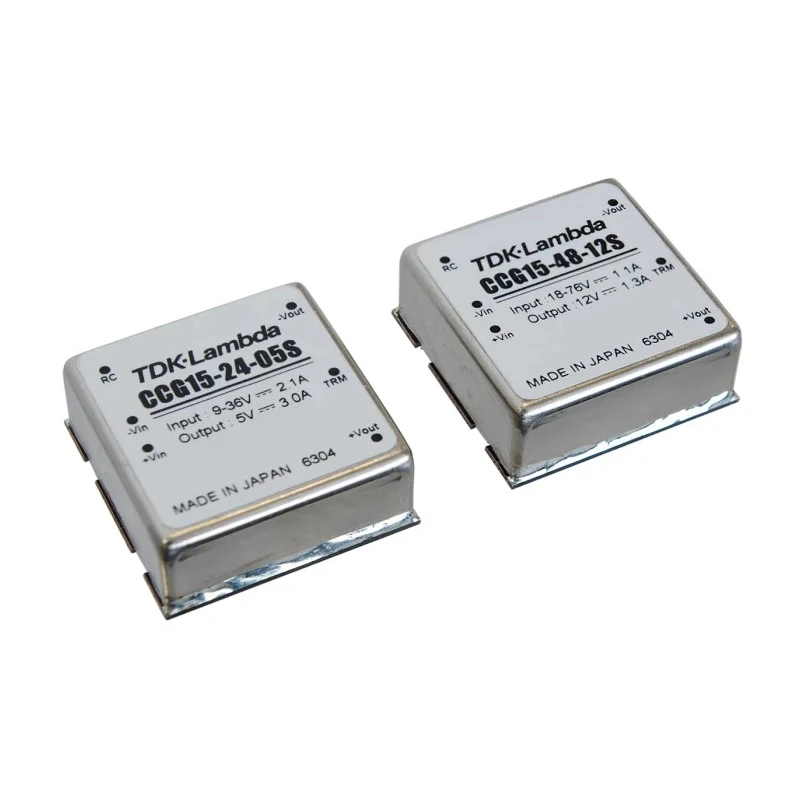

TDK-Lambda CCG15-48-12S is a high-performance isolated DC/DC converter designed for reliable power conversion in demanding applications. The device provides a stable 12V DC output capable of delivering 1.3A current with a peak output power of 15.6W. It operates efficiently up to 88% with a broad DC input voltage range from 18V to 76V supporting various industrial power sources.

The converter comes in a compact DIP through-hole package measuring 25.4mm in length, 9.9mm in width and depth, and weighs approximately 20 grams, allowing easy PCB integration. Its metal case features six-sided shielding which minimizes radiated noise and ensures robust protection against shocks and vibrations typically encountered in industrial environments. The operating temperature range from -40°C to +85°C enables use in extreme temperature conditions.

This power module includes important features such as remote on/off control and adjustable output voltage range up to 13.2V, enhancing system flexibility. The unit provides 500V DC isolation voltage ensuring safety and reliability in sensitive electronic systems. The maximum number of outputs is one, and it supports a ripple and noise specification of 95mV peak-to-peak.

Typical applications for the TDK-Lambda CCG15 series include factory automation, test and measurement equipment, broadcast equipment, communication devices, and general industrial control systems. The product complies with CE, EN 60950-1, and UL/CSA 60950-1 safety standards, making it reliable for professional use.

The converter features six-sided metal shielding for enhanced noise reduction and durability. Its wide input voltage range supports various industrial and commercial power supplies. Compact through-hole DIP package simplifies mounting and integration on circuit boards.

High efficiency of 88% reduces power losses and thermal stress. Operating temperature range of -40°C to 85°C allows usage in diverse environmental conditions. Remote on/off and output voltage adjustment provide operational flexibility.

Isolation voltage rating of 500V ensures electrical safety. Suitable for industrial, laboratory, broadcast, telecommunication, and process control applications. Explore the wide range of DC/DC Converters at EnvMart to find the optimal power solution for your equipment and enable efficient and reliable power management.
