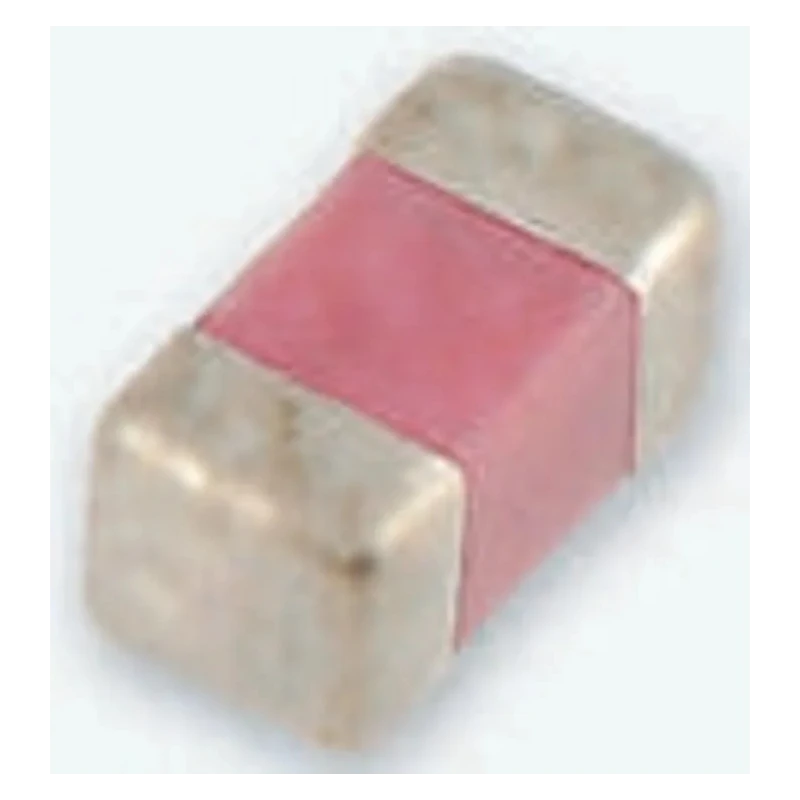

Yageo 100 nF 50 V dc Multilayer Ceramic Capacitor 0603 Case, Surface Mount CC0603ZRY5V9BB104

Yageo CC0603ZRY5V9BB104 is a 100 nF multilayer ceramic capacitor built with a stacked construction and Y5V dielectric material. It comes in the industry-standard 0603 case size with a compact rectangular block design intended for surface mounting.

This capacitor is engineered to operate at 50 V dc voltage and withstands temperatures from -25°C minimum operating temperature up to a maximum of 85°C. It exhibits a tolerance range of -20 to 80 percent, providing enough capacitance flexibility for diverse electronic circuit requirements.

Designed per IEC 60384 standards, this component assures high reliability and quality consistent with industry requirements. The suppression class II rating denotes its use in certain noise suppression and filtering applications.

The dimensions are 1.6 mm in length, 0.8 mm width, and 0.8 mm height, making it ideal for space-constrained printed circuit boards. The termination uses surface mount technology (SMT) compatible finishes facilitating automated PCB assembly.

Packaging is provided on a Paper/PE Tape Reel, allowing efficient feeding for high-volume manufacturing processes commonly found in electronics and communication device production.

Typical applications include television receivers, tuners, and camera equipment where reliable ceramic capacitors with such specifications are required for noise filtering, coupling, and decoupling tasks.

This capacitor fulfills the demands of industrial electronics manufacturing, laboratory instrumentation, consumer devices, and many other commercial electrical applications. This capacitor has a capacitance of 100 nF suitable for various electronic applications.

It operates at a maximum voltage of 50 V dc ensuring safe operation in standard circuits. The tolerance ranges from -20 to 80 percent for flexible capacitance variance. The component is surface mount type with dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height.

It complies with IEC 60384-1 and IEC 60384-21/22 standards for quality and reliability. Maximum operating temperature is rated at 85°C, suitable for industrial and commercial use. Packaging is on Paper/PE Tape Reel to facilitate automated assembly lines.

The mounting type is surface mount, common in compact electronic device manufacturing. Explore more Multilayer Ceramic Capacitors and related electronic components for your industrial and commercial requirements at EnvMart.
