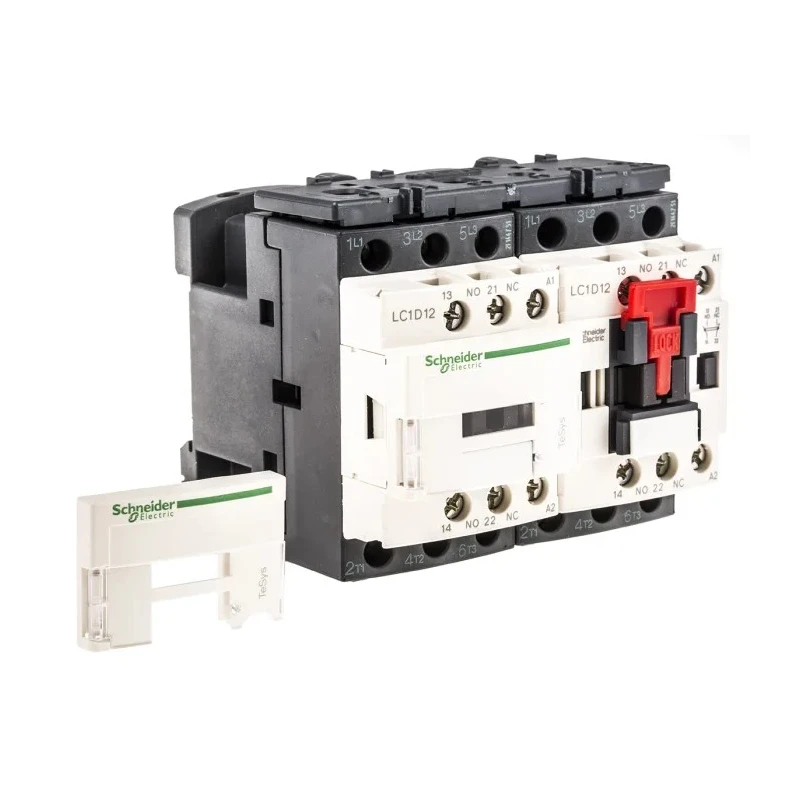

Schneider Electric TeSys D Contactor, 110V AC Coil, 3-Pole, 12 A, 5.5 kW, 690V AC LC2D12F7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 77mm |
| Model | LC2D12F7 |
| Depth | 86mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- Designed for motor control and resistive load applications.
- Supports a rated operational voltage up to 690V AC for broad compatibility.
- Equipped with auxiliary contacts providing 1 NO/1 NC configuration for added circuit flexibility.
- Compact dimensions with 77mm length, 90mm width, and 86mm depth ensure ease of installation.
- Built for DIN rail mounting with screw terminal type for secure and versatile wiring.
- Operational temperature range from -40°C to 60°C suits various industrial environments.
- Electrical durability rated for 2 million mechanical cycles for long service life.
- Complies with CCC, CSA, EAC, IEC, RoHS, and UL standards ensuring quality and safety.
Product Description
Schneider Electric LC2D12F7 TeSys D reversing AC contactor is engineered to deliver reliable performance in automation and motor control applications. It operates on a 110V AC coil voltage with a contact current rating of 12A, capable of managing power up to 5.5 kW at 690V AC, making it suitable for various industrial uses.
The contactor features a 3-pole design with 3 normally open contacts and includes 4 auxiliary contacts (1 NO/1 NC) enhancing functional control in switching circuits. Its robust screw terminal design supports cable sizes from 1 to 4 mm², facilitating secure electrical connections.
Created for DIN rail mounting, this Contactor offers mechanical resilience to shock and vibration, with operational temperatures ranging from -40°C to 60°C. The compact build, measuring 77 mm in length, 90 mm in width, and 86 mm in depth, allows for efficient space utilization in control panels.
Compliant with international standards such as CCC, CSA, EAC, IEC, RoHS, and UL, it ensures safety and sustained operational integrity. The device boasts an electrical durability of two million cycles under nominal load, making it ideal for continuous industrial motor control operations.
Applications include motor control in manufacturing automation, resistive load switching, and reversing operations demanding dependable switching performance in fluctuating temperature environments.
Designed for motor control and resistive load applications. Supports a rated operational voltage up to 690V AC for broad compatibility. Equipped with auxiliary contacts providing 1 NO/1 NC configuration for added circuit flexibility.
Compact dimensions with 77mm length, 90mm width, and 86mm depth ensure ease of installation. Built for DIN rail mounting with screw terminal type for secure and versatile wiring. Operational temperature range from -40°C to 60°C suits various industrial environments.
Electrical durability rated for 2 million mechanical cycles for long service life. Complies with CCC, CSA, EAC, IEC, RoHS, and UL standards ensuring quality and safety. Designed for disassembly supporting environmental sustainability initiatives.
Explore the extensive range of Schneider Electric automation and control gear on EnvMart to enhance your industrial electrical systems with trusted components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor supports a maximum operating voltage of 690V AC.
It operates on a coil voltage of 110V AC.
This model has a contact current rating of 12A.
The power rating for this contactor is 5.5 kW.
The dimensions are 77 mm in length, 90 mm in width, and 86 mm in depth.
It features a 3-pole design with three normally open contacts.
The operational temperature range is from -40°C to 60°C.
It is designed for DIN rail mounting.
It includes four auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It complies with CCC, CSA, EAC, IEC, RoHS, and UL standards.
It is suitable for motor control, resistive load applications, and reversing operations.
It uses a screw terminal type, supporting cable sizes from 1 to 4 mm².
