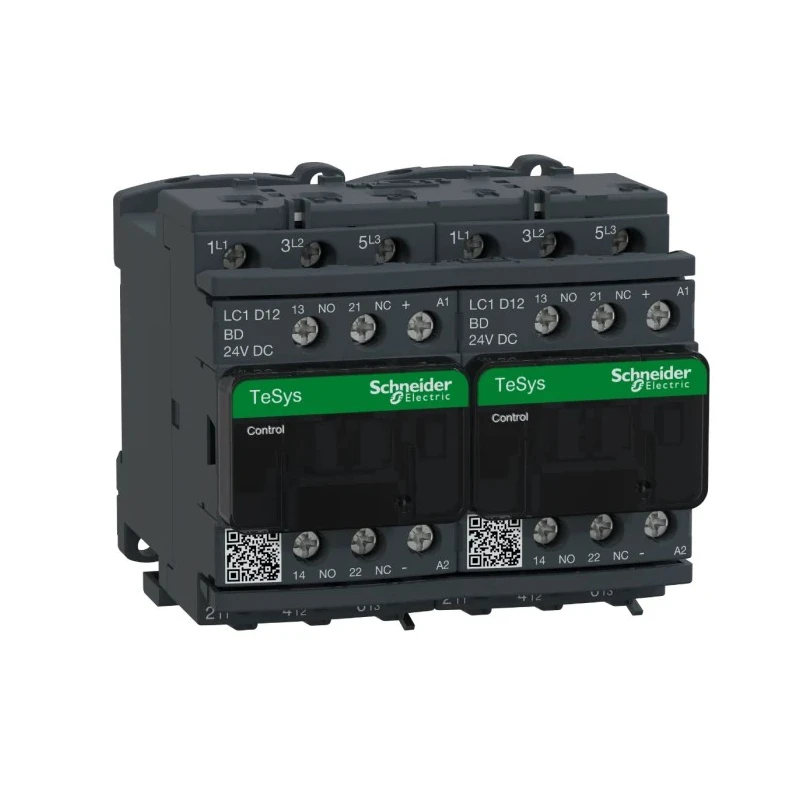

Schneider Electric Contactors LC2D12BD, 24V dc Coil, 3-Pole, 12A, 5.5 kW, 3 NO, 690V ac
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 77mm |
| Model | LC2D12BD |
| Depth | 95mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for motor control and resistive load applications.
- Features 3 normally open (NO) contacts and 2 auxiliary contacts (2 NO/2 NC).
- Mounts easily via DIN rail or screws with IP20 finger-safe screw terminals.
- Operates reliably in temperatures from -25°C to 50°C.
- Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
- Incorporates a pre-installed mechanical and electrical interlock for reversing operations.
- Suitable for industrial automation applications such as conveyors, pumps, compressors, and air conditioning systems.
- Compact dimensions of 77mm length, 90mm width, and 95mm depth.
Product Description
Schneider Electric LC2D12BD contactor is a robust, high-reliability 3-pole contactor designed for motor control and resistive load operations, featuring a 24V dc coil and rated at 12 amperes with a power rating of 5.5 kW at 690V ac. It supports industrial automation applications across HVAC, manufacturing, and water treatment sectors.
The LC2D series TeSys D contactors feature long mechanical and electrical life, built-in auxiliary contacts for enhanced switching capability, and a pre-installed reversing power busbar for simplified installation and operation. The device is equipped with IP20 finger-safe screw terminals marked for both North American and international standards, ensuring ease of wiring and safety compliance.
This contactor supports reversing motor control with a mechanical and electrical interlock that allows only one contactor to be energized at a time, preventing simultaneous activation to safeguard motor operations. Its design accommodates installation on DIN rails or panel mounting with screws, making it versatile for various industrial setups.
Operational ambient temperature ranges from -25°C to 50°C, enabling use in diverse environmental conditions. Adherence to international standards such as CCC, CSA, EAC, IEC, RoHS, and UL guarantees product reliability and compliance.
Designed for motor control, resistive load, and reversing applications. 3 normally open (NO) main contacts with two auxiliary contacts configured 2 NO/2 NC. Durable and safe screw terminals with IP20 finger-safe protection.
Compact form factor measuring 77mm length, 90mm width, and 95mm depth. Wide temperature operating range from -25°C to 50°C.
The Schneider Electric LC2D12BD Contactor is ideal for demanding automation and control systems including conveyors, lifts, escalators, compressors, pumps, mixers, and air conditioning equipment. Its compliance with global electrical standards and sustainable design makes it a reliable component in industrial control gear assemblies.
Explore more Schneider Electric controllers and automation products at EnvMart for advanced industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC2D12BD contactor has a power rating of 5.5 kW at 690V ac.
This model operates with a coil voltage of 24V dc.
The contactor features 3 poles.
The operational current rating is 12A.
The dimensions are 77mm in length, 90mm in width, and 95mm in depth.
It is designed for motor control, resistive load, and reversing applications.
The contactor operates reliably in temperatures ranging from -25°C to 50°C.
It can be mounted easily via DIN rail or screws.
It has 2 auxiliary contacts configured as 2 NO/2 NC.
This contactor complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
It is suitable for industrial automation applications such as conveyors, pumps, compressors, and air conditioning systems.
It features IP20 finger-safe screw terminals with markings for both North American and international standards.
