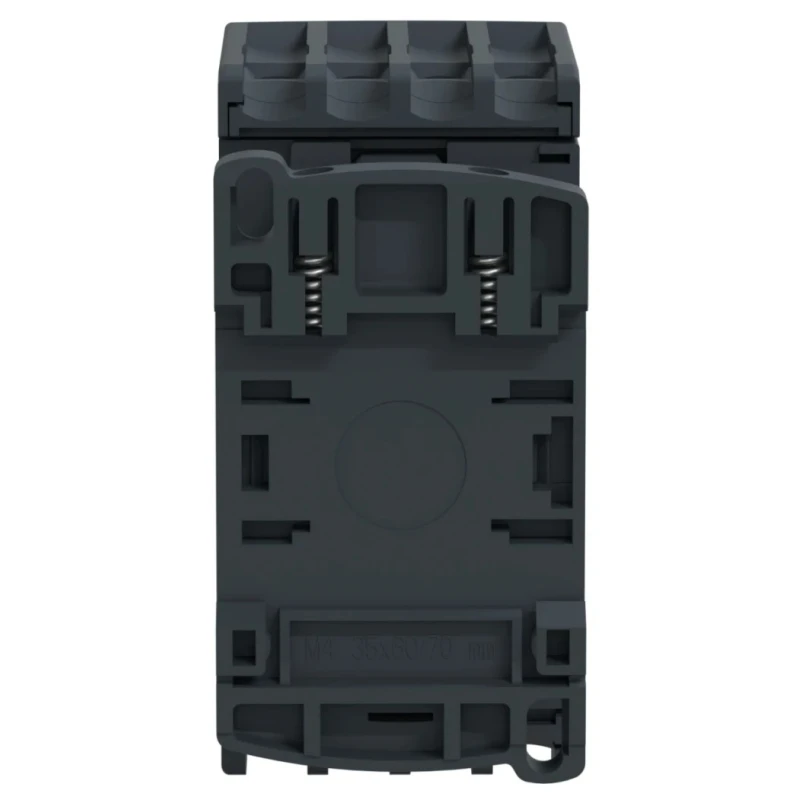

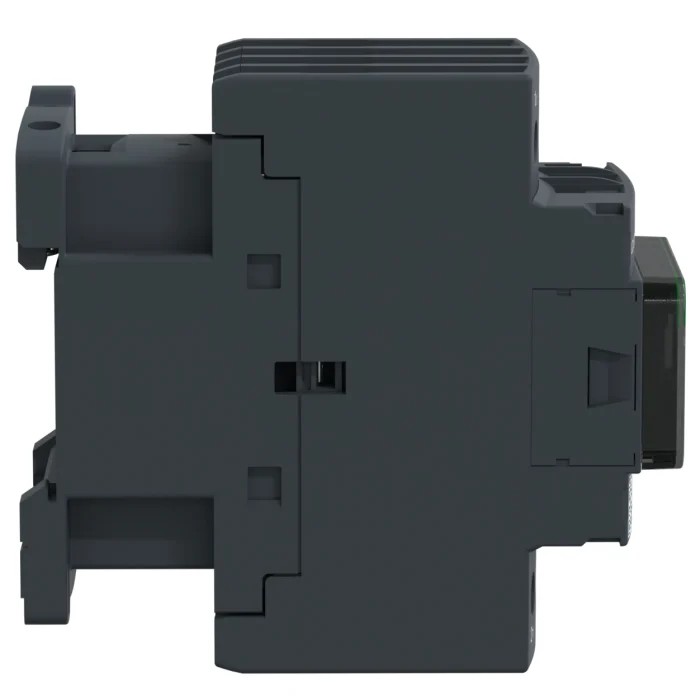

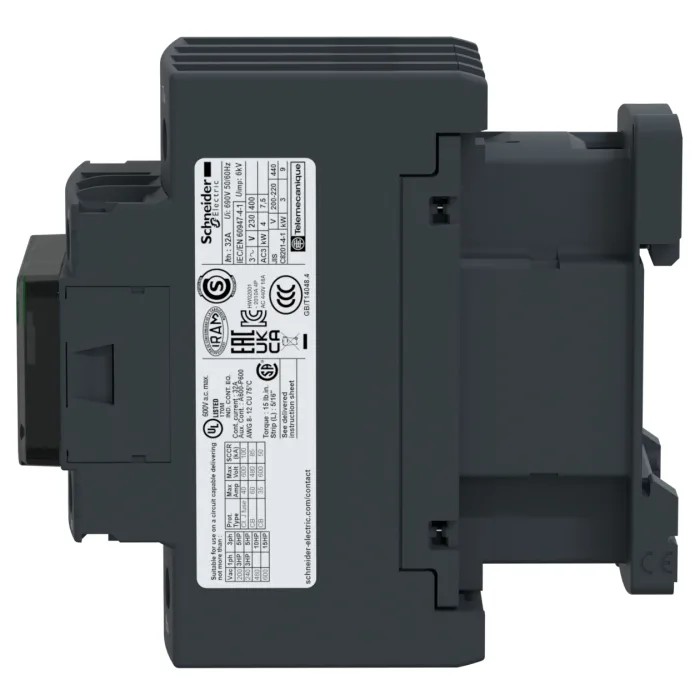

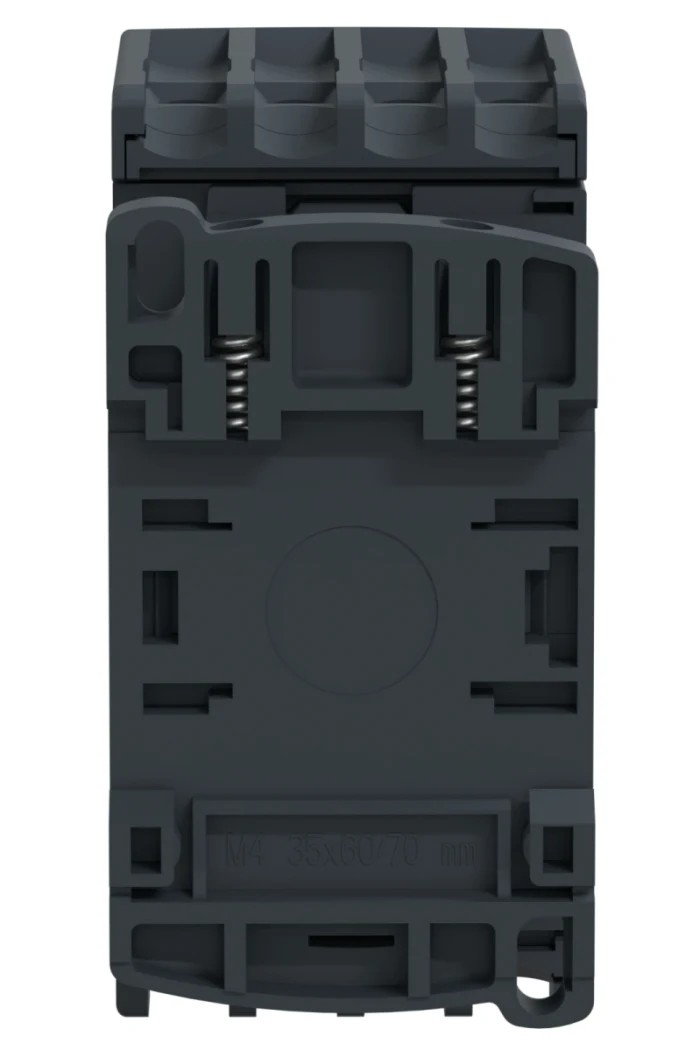

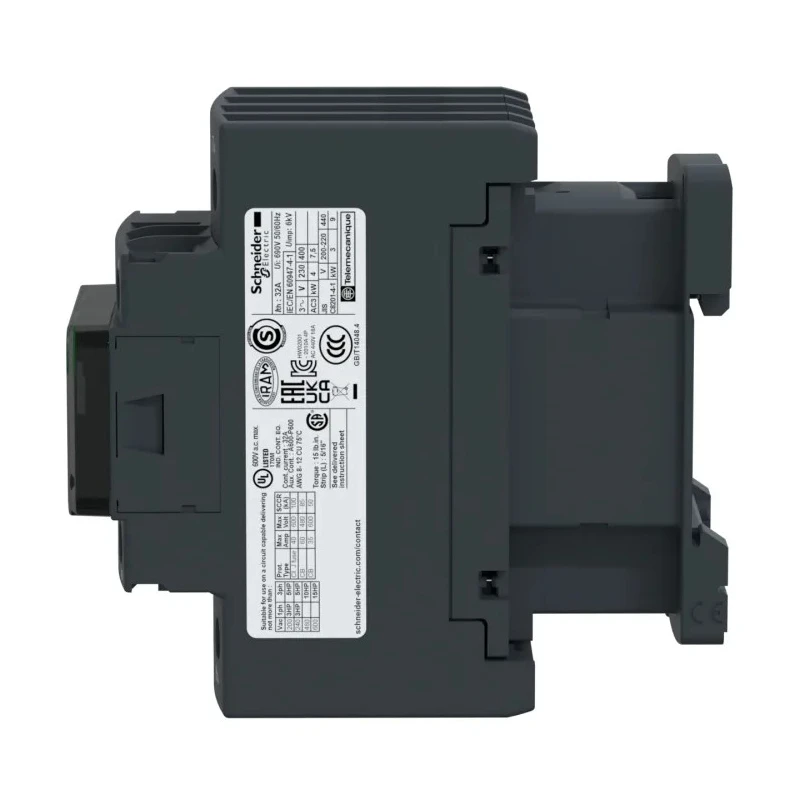

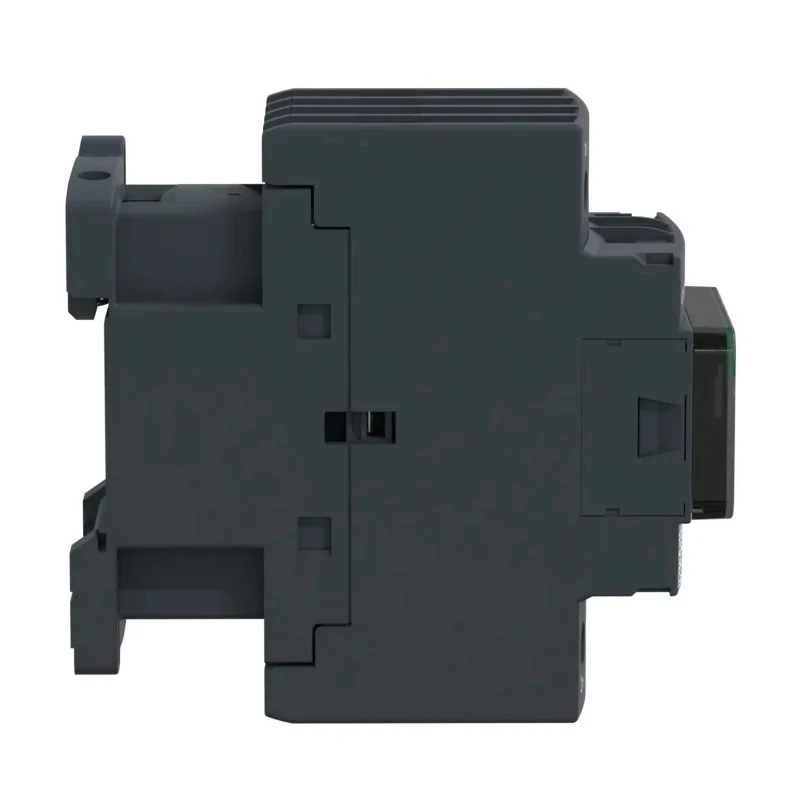

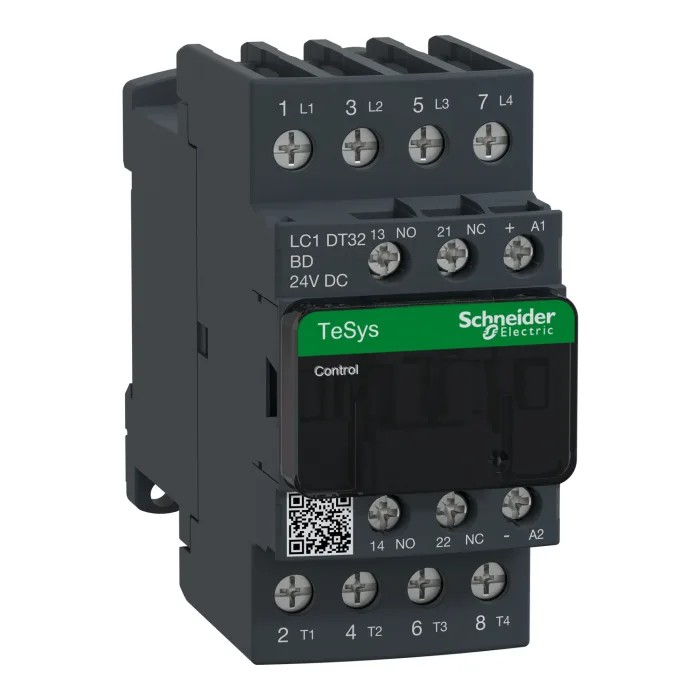

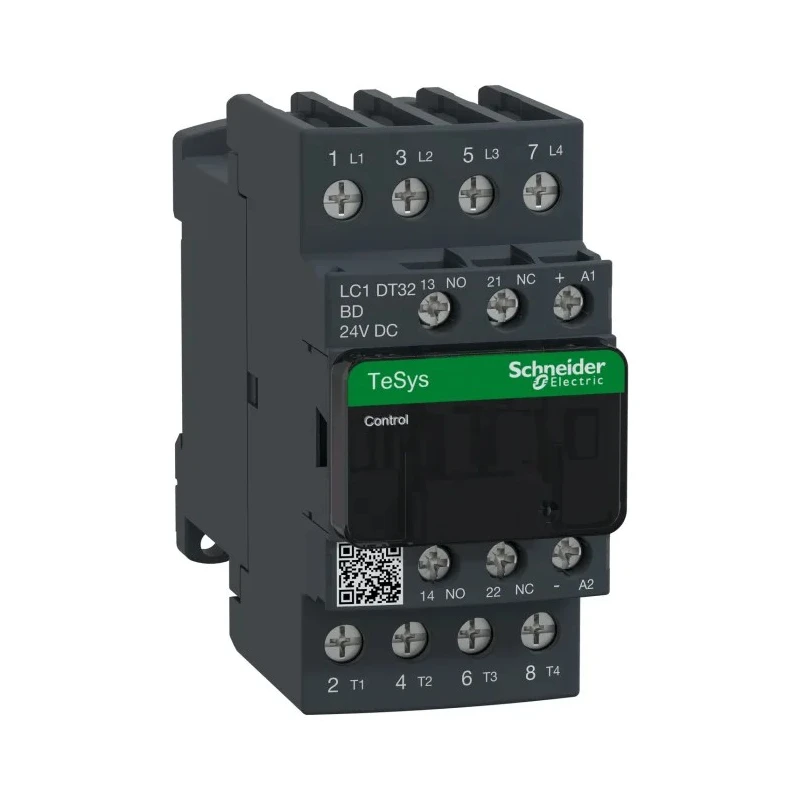

Schneider Electric LC1D Contactor 24V DC Coil 4-Pole 32A 5.4W 4 NO 690V AC LC1DT32BD
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Load Control, Resistive Load |
| Length | 91mm |
| Model | LC1DT32BD |
| Depth | 107mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 5.4W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | UL, CCC, CSA, EAC, IEC, RoHS |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- Features a 24V DC coil for low-voltage operations.
- Supports 4 poles with 4 normally open contacts for versatile switching.
- Rated for 32A contact current at up to 690V AC voltage.
- Equipped with 2 auxiliary contacts configured as 1 normally open and 1 normally closed.
- Mounts on DIN rail for easy installation in control panels.
- Operates over a wide temperature range from -40°C to +60°C.
- Uses screw terminals to ensure secure and straightforward wiring.
- Suitable for motor control, building management, and resistive load applications.
Product Description
Schneider Electric LC1DT32BD Contactor is designed for efficient and reliable load control in industrial and automation systems. This contactor operates with a 24V DC coil, providing low-voltage control capability with robust performance. Featuring a 4-pole design and a contact rating of 32A, it is suitable for switching applications up to 690V AC.
The compact dimensions of 91mm length, 45mm width, and 107mm depth allow for convenient DIN rail mounting in electrical panels. Screw terminals facilitate secure and easy wiring, enhancing installation efficiency.
The device includes 2 auxiliary contacts, configured as 1 normally open and 1 normally closed, supporting flexible control circuit configurations. It performs reliably across a broad temperature range from -40°C to +60°C, catering to diverse environmental conditions.
Applications include motor control in automation, switching of high-voltage circuits, load management in building systems, and use in electrical panel construction. The contactor complies with UL, CCC, CSA, EAC, IEC, and RoHS standards, ensuring safety and regulatory adherence.
Features a 24V DC coil for low-voltage operations. Four poles with normally open contact configuration. High contact current rating of 32A and contact voltage of 690V AC. Two auxiliary contacts for enhanced control flexibility.
DIN rail mounting for compact and efficient installation. Suitable for resistive load control and industrial automation. Wide operating temperature from -40°C to +60°C. Screw terminal connections for secure wiring.
Schneider Electric's LC1DT32BD Contactor is an essential component for industrial control panels and automation solutions, providing reliable performance with safety certifications. Explore EnvMart’s selection of industrial automation components for enhanced operational efficiency and system reliability.
