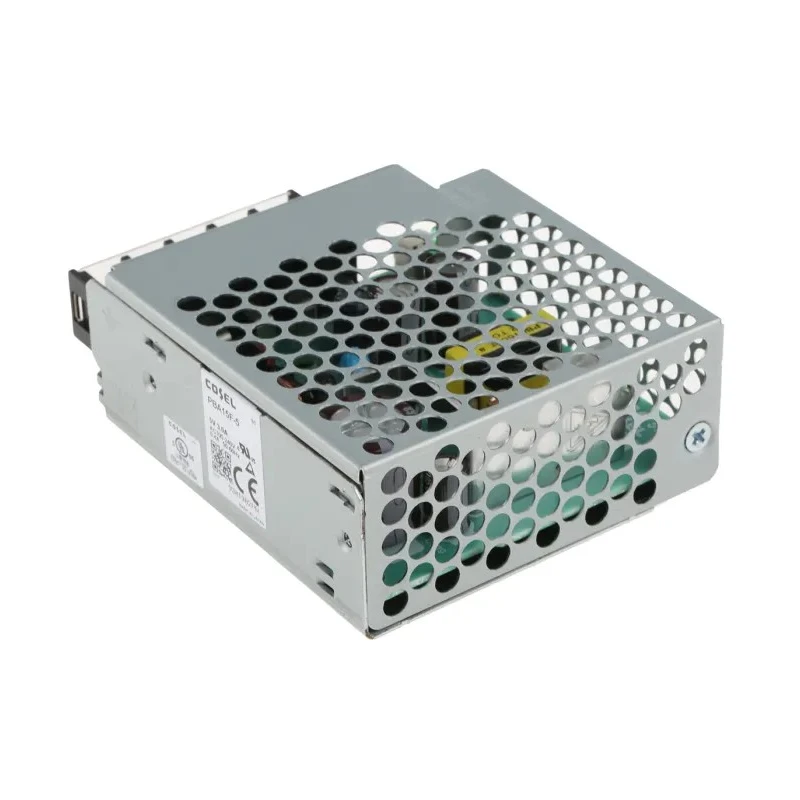

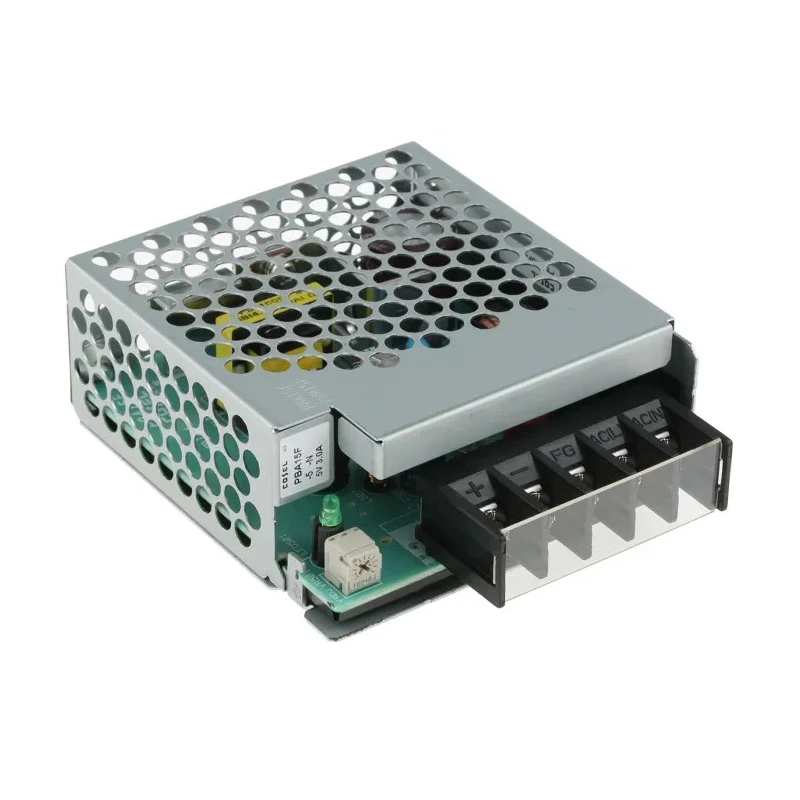

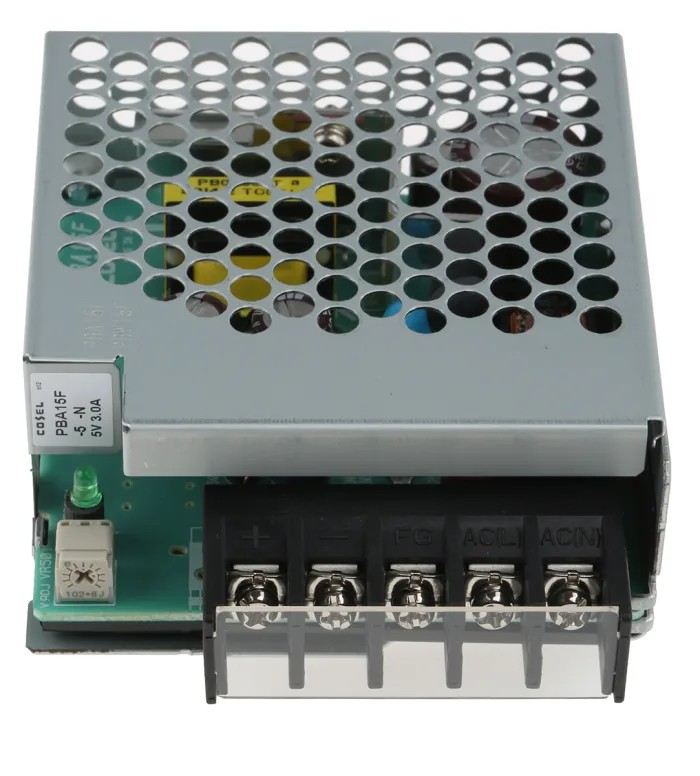

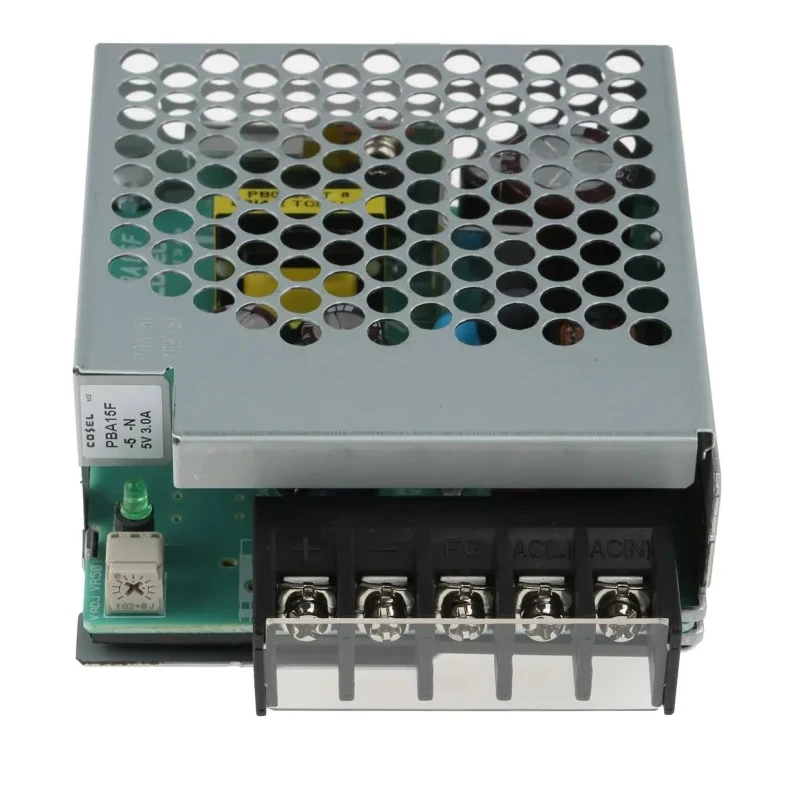

Cosel Switching Power Supply 5V dc, 15W, 3A Output, Chassis Mount, Japan PBA15F-5-N

Free Delivery in India | Lowest Global Shipping Charges

Cosel Switching Power Supply 5V dc, 15W, 3A Output, Chassis Mount, Japan PBA15F-5-N

Name: Cosel Switching Power Supply 5V dc, 15W, 3A Output, Chassis Mount, Japan PBA15F-5-N
Brand: Cosel
SKU: 197624



Category Switching Power Supplies Brand Cosel Condition New

Specifications

Country of Origin	Japan
Brand	Cosel
Power	15W
Efficiency	74%
Length	101.5mm
Model	PBA15F-5-N
Depth	78mm
Gross Weight	200g
Width	34.5mm
Mount Type	Chassis
Series	PBA15F
Maximum Operating Temperature	71°C
Minimum Operating Temperature	-10°C
Number of outputs	1
Maximum Input Voltage	370V dc
Standards/Approvals	UL, RoHS, CE
Maximum Output Voltage	5V dc
SMPS Output Current	3A
Minimum Input Voltage	110, 85V dc

Key Features

Compact and lightweight with dimensions of 101.5mm length, 34.5mm width, and 78mm depth.
Universal input voltage range from 85VAC to 264VAC or 120VDC to 370VDC.
Operating temperature range from -10°C to 71°C suitable for various environments.
Provides overcurrent and overvoltage protection for enhanced reliability.
Efficiency rating of 74 percent ensures effective power conversion.
Enclosed package type with ventilated cover for convection cooling.
Complies with UL, RoHS, CE standards and certifications for safety and quality.
Ideal for automated machinery and semiconductor equipment applications.

Product Description

Cosel PBA15F-5-N is a high-quality AC to DC embedded switch-mode power supply offering a single output of 5V dc at 15W power. This switch-mode power supply is designed for industrial and electronic applications requiring stable and reliable power delivery. It is chassis mountable and features a compact form factor that is 35% to 65% smaller in volume compared to conventional models of the same type.

The power supply accepts a wide universal input voltage range from 85VAC to 264VAC or 120VDC to 370VDC, making it highly versatile for global applications. It operates efficiently with a 74% efficiency rating and supports continuous operation between -10°C and 71°C. The device is convection cooled via its enclosed ventilated cover and includes built-in overcurrent and overvoltage protection to safeguard connected equipment.

This product complies with important certifications such as UL60950-1 (at AC input), C-UL (CSA60950-1), EN60950-1, and EN50178 and meets EMI/EMC requirements including FCC Part15 class B and VCCI-B with additional EMI/EMC filtering where necessary. The harmonic attenuator feature helps reduce electromagnetic interference according to IEC61000-3-2 standards.

Ideal for use in automated machinery, semiconductor equipment, and other industrial electronic systems, the Cosel PBA15F-5-N power supply offers a durable and reliable power source. Manufactured in Japan, it assures premium quality and performance consistency.

Compact and lightweight design for space-saving installations. Supports a wide input voltage range with universal compatibility. Built-in protection features enhance operational safety. Certified for compliance with international safety and EMI standards.

Convection cooled with ventilated enclosure for efficient heat dissipation. Suitable for industrial, automation, and semiconductor applications.
