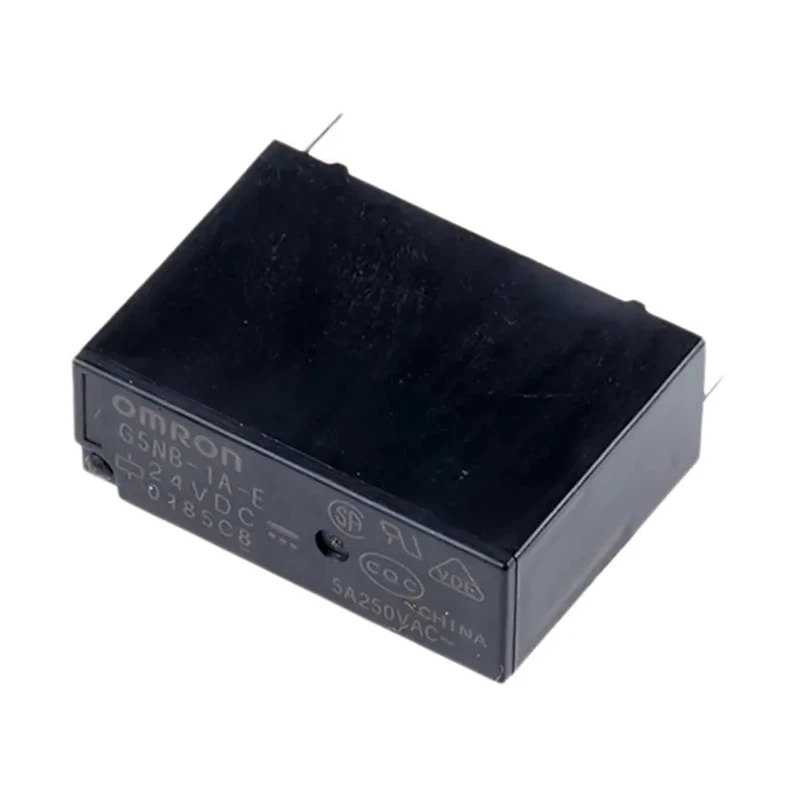

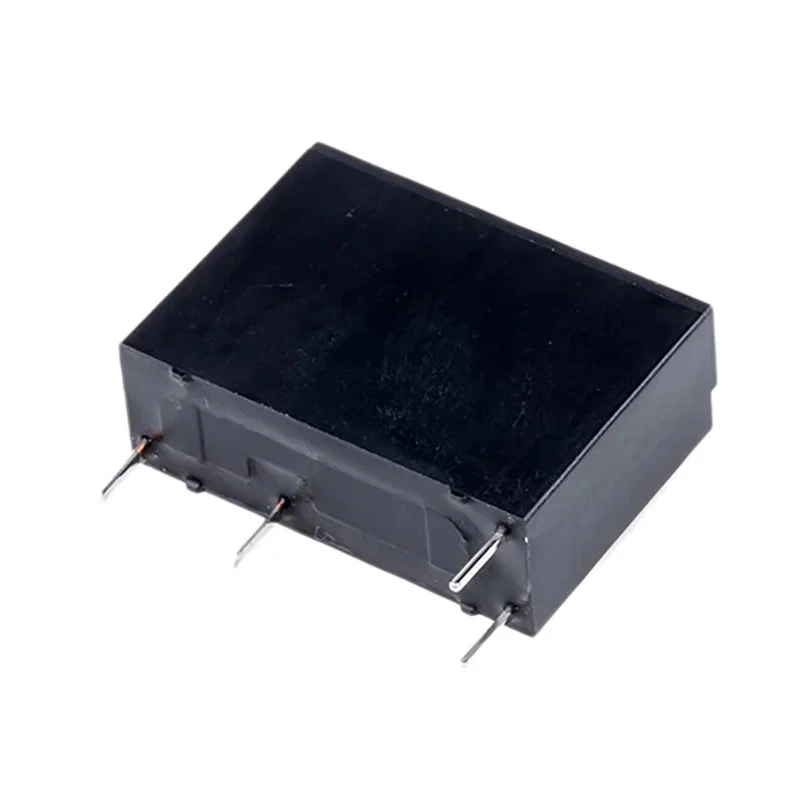

Omron PCB Power Relay 24V DC Coil 5A Switching Current 1 NO G5NB-1A-E DC24

Omron G5NB-1A-E DC24 is a high-performance PCB Power Relay featuring a 24V DC coil voltage and a switching current capability of 5A via a single normally open contact (1 NO). This relay is part of the G5NB series known for its compact slim design measuring 20.5mm in length, 15.3mm in height, and 7.2mm in width, making it ideal for PCB mount applications in constrained spaces.

The relay offers a robust isolation between coil and contacts, with a withstand voltage rating of 10kV (1.2 x 50μs), ensuring reliable operation even under high transient voltages. Its magnetic circuit is highly efficient, consuming only 200mW coil power, thereby optimizing energy usage.

The contact material comprises silver alloy, providing low contact resistance of 100mΩ which ensures stable electrical conduction and longevity of the relay in switching applications. The device is able to operate reliably within a temperature range from -40°C to +70°C, suitable for harsh environmental conditions.

The G5NB-1A-E complies with multiple stringent standards including IEC/EN 60079-15 for explosive atmospheres, IEC/EN 60335-1 for household appliances safety, EN61010 for electrical equipment safety, and recognized certifications such as UL, VDE, and CSA. This assures safety, quality, and regulatory compliance for various industrial and commercial uses.

Its mounting style is designed for PCB with PCB pin terminals, allowing easy integration into printed circuit boards. Additionally, it features excellent tracking resistance with a Comparative Tracking Index (CTI) greater than 250, which enhances its insulation and durability.

This power relay is suitable for applications in electrical automation, industrial control systems, HVAC equipment, and other domains requiring reliable switching operation. The product originates from China, adhering to Omron’s reputed quality standards.

Choose Omron’s G5NB-1A-E DC24 PCB Power Relay for compact size, efficient power consumption, high reliability, and industry-standard compliance for your PCB and industrial relay needs.

Explore EnvMart’s diverse electronics and electrical components to find compatible relays and other automation devices that complement your projects. Compact slim body measuring 20.5mm length, 15.3mm height, and 7.2mm width.

High withstand voltage rating of 10kV between coil and contacts. Efficiency optimized magnetic circuit with coil power consumption of 200mW. Operating temperature range from -40°C to +70°C. Silver alloy contact material with low contact resistance of 100mΩ for reliable conduction.

Complies with IEC/EN 60079-15, IEC/EN 60335-1, EN61010, UL, VDE, and CSA standards. Designed for PCB mounting with PCB pin terminals for secure installation. Tracking resistance rated at CTI greater than 250 for enhanced durability.

Suitable for use in industrial, electrical automation, and control equipment applications. Country of origin: China.
