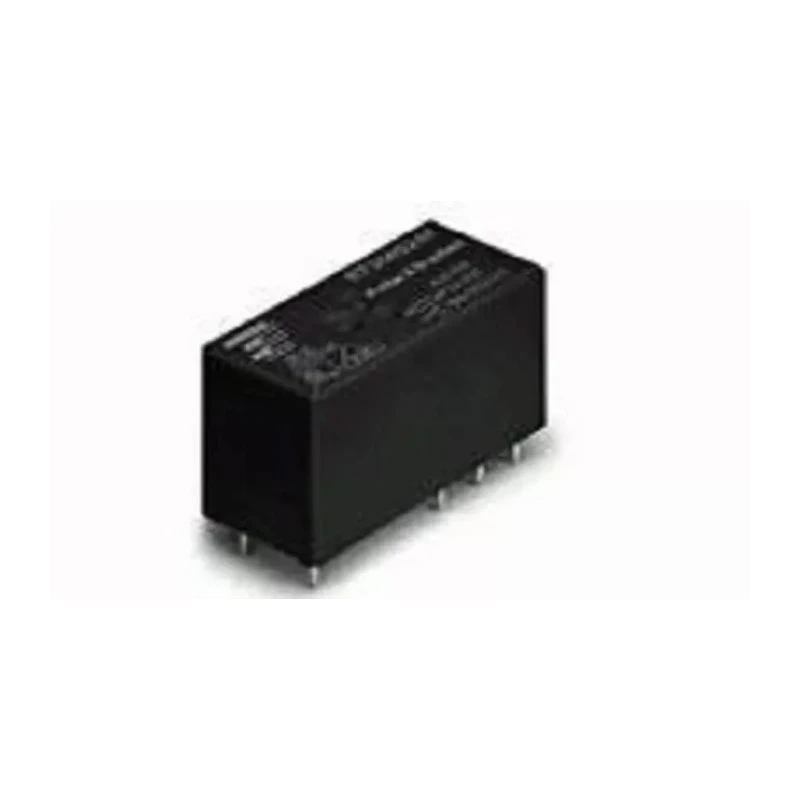

TE Connectivity PCB Monostable Relay, 5V DC Coil, 8A Switching Current, DPDT 4-1419108-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20mm |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS, UL |
| Coil Resistance | 100Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- Monostable relay designed for PCB mounting with solder terminals.
- Operates reliably between -40°C and 85°C temperature range.
- Switching capabilities include 30V DC and 250V AC voltages.
- Coil resistance of 100 ohms and coil power consumption of 400 mW.
- Compact dimensions of 20mm length, 15mm height, and 10mm width.
- Contact material composed of silver alloy ensuring durability and low resistance.
- Contact resistance rated at 50 milliohms for efficient conductivity.
- Compliant with RoHS and UL standards, assuring safety and quality.
Product Description
TE Connectivity 4-1419108-0 is a high-quality PCB Monostable Relay engineered for precise switching applications requiring a 5V DC coil voltage and 8A switching current. This relay features a DPDT (Double Pole Double Throw) contact configuration, making it suitable for a variety of control and signal switching tasks in industrial and electronic manufacturing environments.
Designed for PCB mounting with solder terminals, this relay offers compact dimensions of 20mm length, 15mm height, and 10mm width, facilitating integration into dense electronic assemblies. The coil resistance is specified at 100 ohms with a coil power consumption of 400 mW, optimizing energy efficiency during operation.
The relay operates reliably within a wide temperature range from -40°C to 85°C, ensuring stable performance under varying environmental conditions. Its switching capabilities include handling DC voltages up to 30V and AC voltages up to 250V, suitable for moderate power applications.
The contact material is a durable silver alloy, contributing to a low contact resistance of 50 milliohms and excellent electrical conductivity. This enhances the relay's longevity and reduces power losses. The product adheres to RoHS and UL standards, reflecting its commitment to environmental compliance and safety.
Monostable DPDT configuration for versatile switching. 5V DC coil voltage with 100Ω coil resistance. Compact PCB mount design with solder terminals. Operating temperature range from -40°C to 85°C. Switching current rated at 8A.
Silver alloy contacts with low resistance. Complies with RoHS and UL standards.
This relay is ideal for industrial automation, control systems, electronic devices, and other applications where compact, reliable, and efficient switching is required. TE Connectivity's robust design ensures dependable performance in demanding environments.
Explore similar power relay products and technical resources on EnvMart to find components tailored to your specific application needs.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 8A, making it suitable for moderate power applications.
This model operates with a coil voltage of 5V DC, which is essential for its activation.
The relay has compact dimensions of 20mm in length, 15mm in height, and 10mm in width, facilitating easy integration into electronic assemblies.
It features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching applications.
The relay operates reliably within a temperature range of -40°C to 85°C, ensuring stable performance under varying environmental conditions.
The contact material is a silver alloy, which contributes to low contact resistance and enhances electrical conductivity.
The contact resistance is rated at 50 milliohms, which promotes efficient conductivity and reduces power losses.
This relay can handle switching voltages of up to 30V DC and 250V AC, making it suitable for various applications.
The coil resistance is specified at 100 ohms, which affects the relay's energy consumption during operation.
The coil power consumption is 400 mW, optimizing energy efficiency during operation.
Yes, it complies with RoHS and UL standards, ensuring safety and environmental compliance.
This relay is designed for PCB mounting with solder terminals, allowing for secure installation in electronic circuits.
