Danfoss Inverter Drive 4 kW 3 Phase Variable Frequency Panel Mount FC280 Series

Free Delivery in India | Lowest Global Shipping Charges

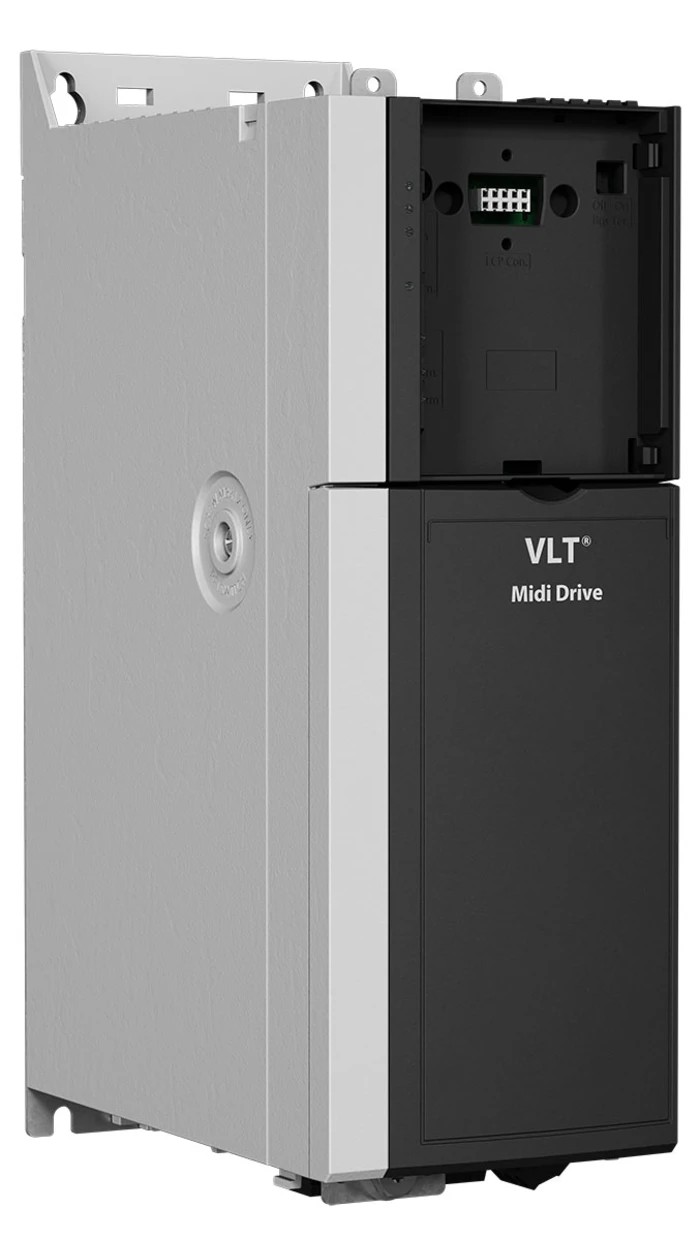

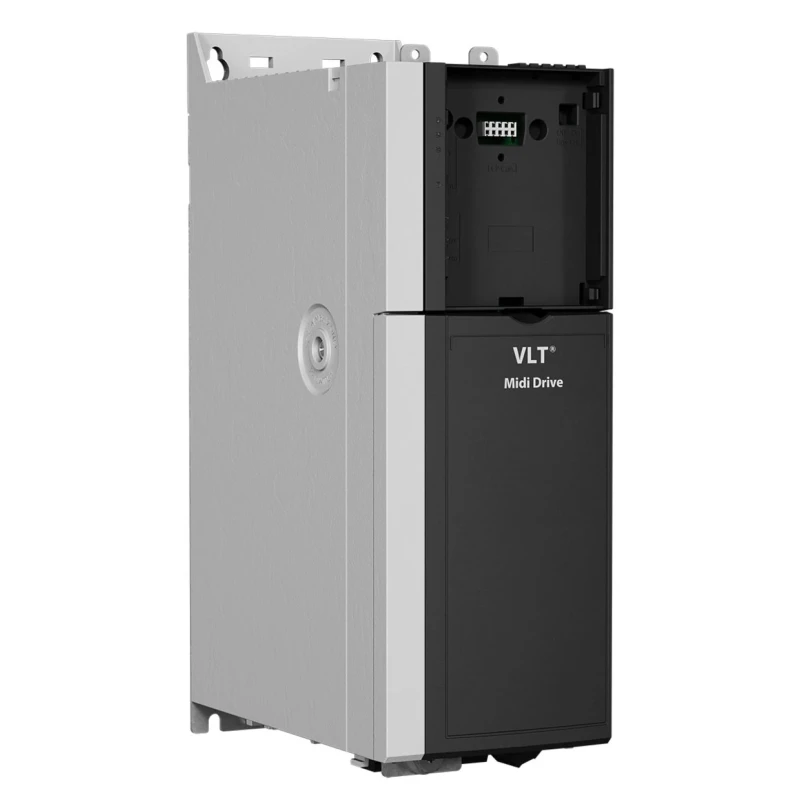

Danfoss Inverter Drive 4 kW 3 Phase Variable Frequency Panel Mount FC280 Series

Name: Danfoss Inverter Drive 4 kW 3 Phase Variable Frequency Panel Mount FC280 Series
Brand: Danfoss
SKU: 197314
Price: 2143.22 USD
Availability: InStock



Category Inverter Drives Brand Danfoss Condition New

Specifications

Country of Origin	Denmark
Brand	Danfoss
Model	FC280
IP Rating	IP20
Drive Type	Variable Frequency
Mount Type	Panel
Overall Length	90mm
Series	FC280
Overall Width	168mm
Power Rating	4kW
Maximum Operating Temperature	+55°C
Output Frequency	500Hz
Interfaces	USB port
Number of Phases	3
Maximum Output Current	8.3A
Standards/Approvals	CE, cUL Listed, EMC Compliant, RCM (C-Tick), TUV, UL Listed
Overall Depth	272.5mm
Minimum Supply Voltage	400V ac
Better World Claim	Saves Energy
Compatible Motor Type	Induction Motor

Key Features

Compact panel mount design with overall length 90mm, width 168mm, and depth 272.5mm.
Supports 400 V AC supply voltage with a maximum output current of 8.3 A.
Equipped with integrated USB port for easy PC connectivity.
Multiple fieldbus communication options including Profibus, Profinet, Ethernet/IP, CANopen, and Modbus RTU.
Features pluggable connectors, integrated DC choke, RFI filter, and dual-channel STO functional safety.
Compatible with induction motors and provides output frequency up to 500 Hz.
Operating temperature range up to +55°C with IP20 protection rating.
Meets multiple certifications including CE, cUL Listed, EMC Compliance, RCM, TUV, and UL Listed.

Product Description

Danfoss FC280 inverter drive with 4 kW power rating is designed for high performance variable frequency control of 3 phase induction motors. Featuring a compact panel mount form factor with 90mm length, 168mm width, and 272.5mm depth, it fits modern industrial automation setups requiring compact and flexible solutions.

The drive supports a 400 V AC supply with a maximum output current of 8.3 A and an output frequency range up to 500 Hz, enabling precise speed and torque control. It includes an integrated USB port for easy connection to PCs for configuration, diagnostics, and maintenance.

Fieldbus communication options such as Profibus, Profinet with dual port, Ethernet/IP with dual port, CANopen, and Modbus RTU are available depending on the model variant, ensuring compatibility with various control systems.

Additional features include pluggable connectors, integrated DC choke, RFI filter for electromagnetic interference reduction, and dual-channel STO functional safety to enhance operational safety in industrial environments.

The FC280 series complies with multiple international standards and certifications including CE marking, UL, cUL, EMC compliance, RCM (C-Tick), and TUV approvals, ensuring reliability and regulatory compliance.

Designed to save energy under the Better World initiative, the drive reduces power consumption and environmental impact while maintaining high operational efficiency. The product originates from Denmark, reflecting Danfoss' commitment to quality manufacturing.

Note that the inverter drive is delivered without a control panel; an LCD control panel is available separately in two versions for cost and space savings. This drive is ideal for industrial, manufacturing, HVAC, and automation applications requiring efficient motor control and energy management.

Compact panel mount design for easy installation. Wide fieldbus communication options enhance system integration. Integrated safety and filtering components improve reliability. Energy saving features support sustainable operations.

Certified to multiple international standards. Explore more Inverter Drives and motor control products at EnvMart to optimize your industrial operations.
