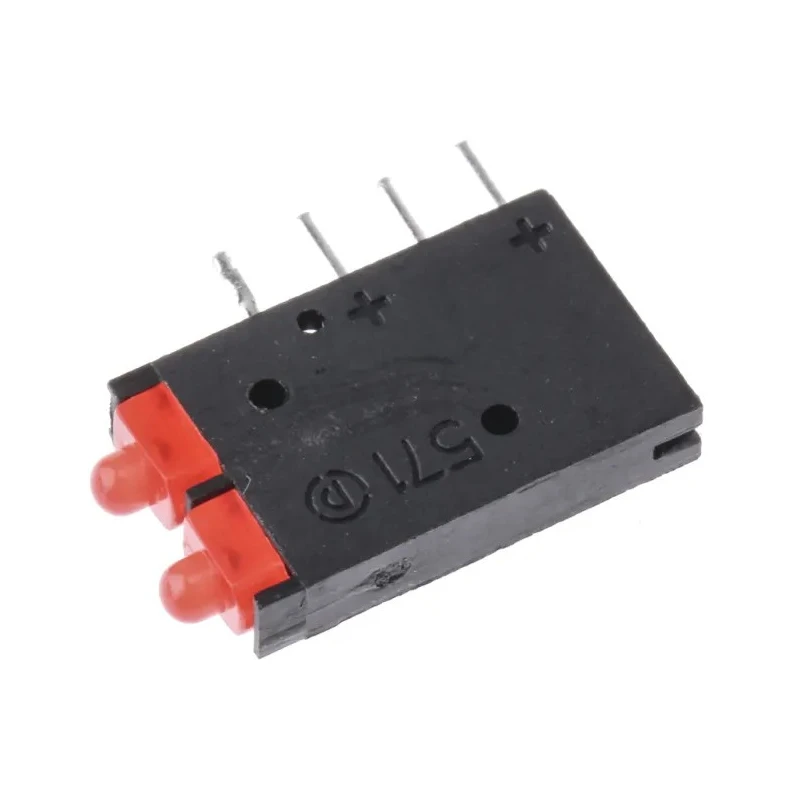

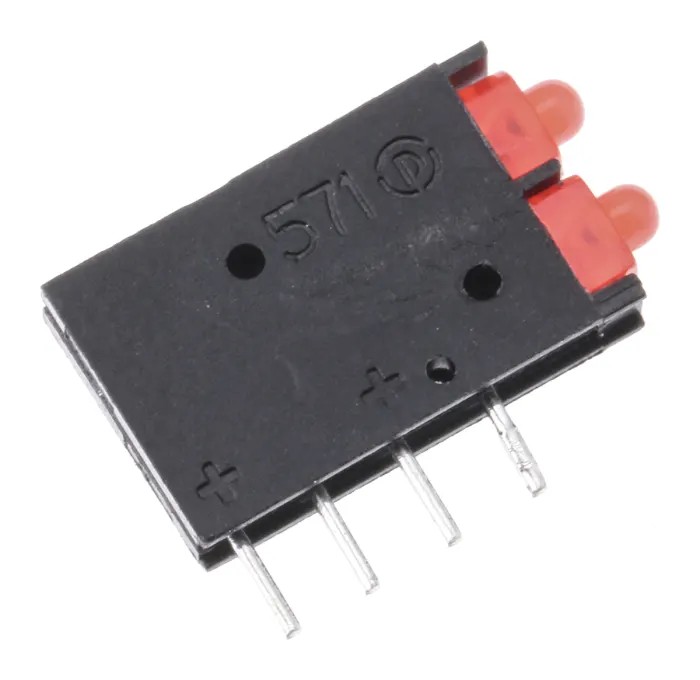

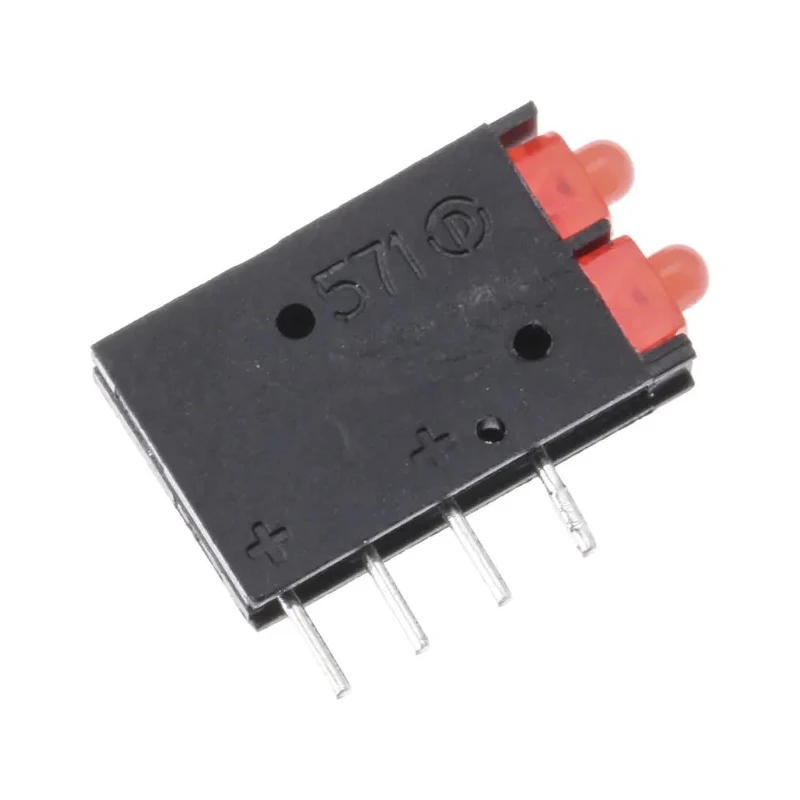

Dialight Red Right Angle PCB LED Indicator 5 mm (T-1 3/4), 2 LEDs, 2 V Single Colour 571-0111-100F

Free Delivery in India | Lowest Global Shipping Charges

Dialight Red Right Angle PCB LED Indicator 5 mm (T-1 3/4), 2 LEDs, 2 V Single Colour 571-0111-100F

Name: Dialight Red Right Angle PCB LED Indicator 5 mm (T-1 3/4), 2 LEDs, 2 V Single Colour 571-0111-100F
Brand: DIALIGHT
SKU: 197072
Price: 1.48 USD
Availability: InStock



Category PCB LED Indicator Brand DIALIGHT Condition New

Specifications

Country of Origin	India
Brand	Dialight
Length	15.24mm
Model	571-0111-100F
Mount Type	Through Hole
Number Of Leds	2
Maximum forward current	30mA
Viewing angle	38 °
Sub Type	Single Colour
Power Dissipation	80mW
Lens Colour	Red
Luminous Intensity	12.6mcd
Standards/Approvals	RoHS
LED Colour	Red
Number of Pins	4
Lens Finish	Diffused
Minimum Supply Voltage	2V
LED Material	GaP, GaAsP
Multicolour/Single Colour	Single Colour
LED Orientation	Right Angle
LED Size	5 mm (T-1 3/4)
Red DIN PCB mount LED,5710111100 10mABrand	Dialight

Key Features

The indicator features two 2 mm (T-3/4) LEDs mounted perpendicular to the PCB for space efficiency.
It has a maximum forward current of 30 mA ensuring optimal LED performance.
The LED orientation is right angle with a 38° viewing angle for precise indication.
Constructed with GaP and GaAsP LED materials with a diffused red lens finish for enhanced visibility.
The product complies with RoHS standards ensuring environmental safety.
The luminous intensity is 12.6 mcd with a power dissipation of 80 mW.
Designed for through-hole mounting with 4 pins for secure PCB integration.
Its length measures 15.24 mm making it compact for various electronic applications.

Product Description

Dialight 571-0111-100F Red Right Angle PCB LED Indicator 5 mm (T-1 3/4) is designed for precise and compact visual signaling in electronic circuits. It features two 2 mm (T-3/4) LEDs mounted perpendicular to the printed circuit board (PCB), allowing a space-saving design ideal for densely packed assemblies.

This indicator operates at a minimum supply voltage of 2 V with a maximum forward current of 30 mA, ensuring reliable illumination. The LED materials used include Gallium Phosphide (GaP) and Gallium Arsenide Phosphide (GaAsP), contributing to high luminous efficiency and durability.

The right angle orientation and 38-degree viewing angle provide clear visibility from varying angles. The diffused red lens finish enhances uniform light dispersion, suited for status displays and indicator panels in industrial, laboratory, manufacturing, and commercial electronic applications.

This PCB indicator's compact length of 15.24 mm along with a black plastic housing makes it a robust component compatible with through-hole mounting and 4-pin installation. Its low power dissipation of 80 mW supports energy-efficient operation.

The indicator complies with RoHS environmental standards, underscoring its safe use in manufacturing and electronic design. This component is ideal for use in control panels, instrumentation displays, and embedded systems requiring reliable LED indication.

Two 2 mm (T-3/4) LEDs mounted perpendicular to PCB for space efficiency. Maximum forward current of 30 mA ensures optimal brightness. Right angle orientation with 38° viewing angle for clear indication. GaP and GaAsP LED materials with diffused red lens finish for visibility.

Compliant with RoHS for environmental safety. Luminous intensity rated at 12.6 mcd with low power dissipation of 80 mW. Through-hole mount type with 4 pins for stable PCB integration. Compact length of 15.24 mm and durable black plastic housing.
