Littelfuse Thyristor SCR 800 V Repetitive Peak Reverse Voltage 16 A Rated Average On-State Current 2N6509G

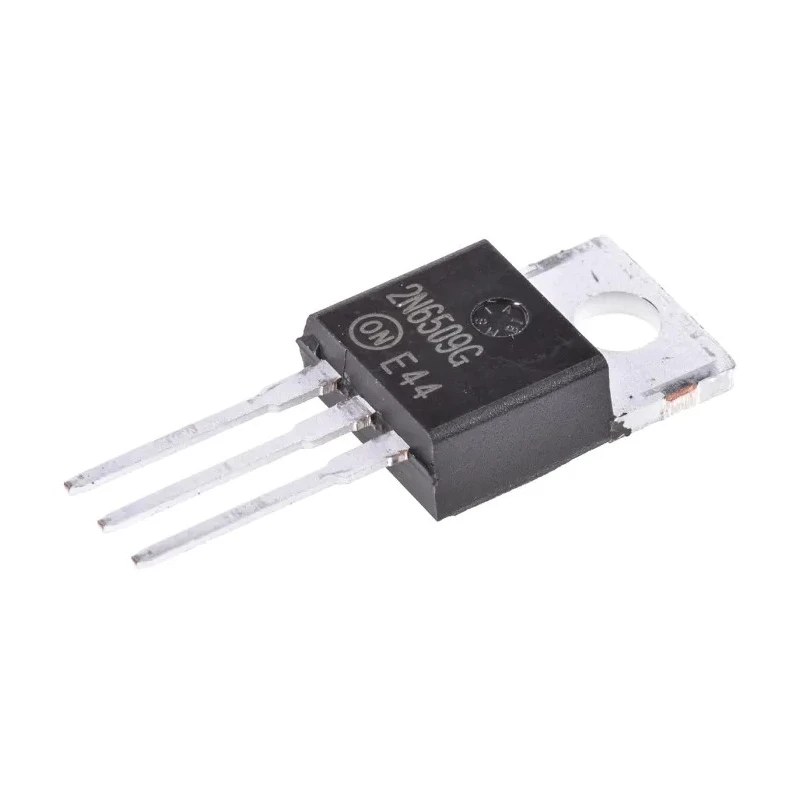

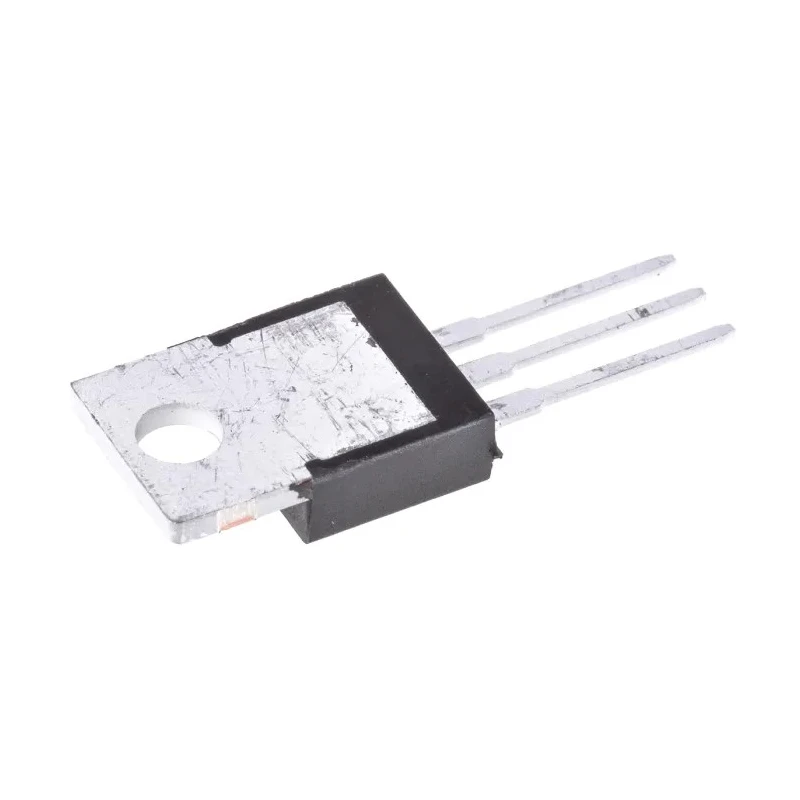

Littelfuse 2N6509G Thyristor is a discrete semiconductor device configured as a Silicon-Controlled Rectifier (SCR) with an 800 V repetitive peak reverse voltage and rated average on-state current of 16 A. Designed with a TO-220 package for through-hole mounting, this component ensures efficient switching and phase control applications in industrial electronic circuits.

The device features a surge current rating of 250 A, allowing it to withstand high inrush currents typical in power electronics applications. Its gate trigger parameters include a maximum current of 30 mA and a maximum trigger voltage of 1.5 V, ensuring precise turn-on control.

Designed for robust operation, the 2N6509G supports temperature ranges from -40°C minimum to 125°C maximum operating temperatures. It has a peak on-state voltage drop of only 1.8 V and a maximum holding current of 40 mA, contributing to its efficiency and reliability in maintaining conduction under load conditions.

The device contains 3 pins and is suitable for use in industrial, electronic component, power control, and semiconductor applications, including phase control thyristor circuits commonly found in power supplies, motor controls, and HVAC systems.

Maximum operating temperature of 125°C for reliable high-temperature performance. Designed without specific industry approvals or automotive standards, making it suited for general industrial use. Robust electrical characteristics enable high surge current tolerance up to 250 A.

Phase control capability ideal for adjustable power control applications. Compact TO-220 package allows easy integration into printed circuit boards and modules. Explore the wide range of Littelfuse semiconductor components at EnvMart for reliable and high-performance power electronic solutions.
