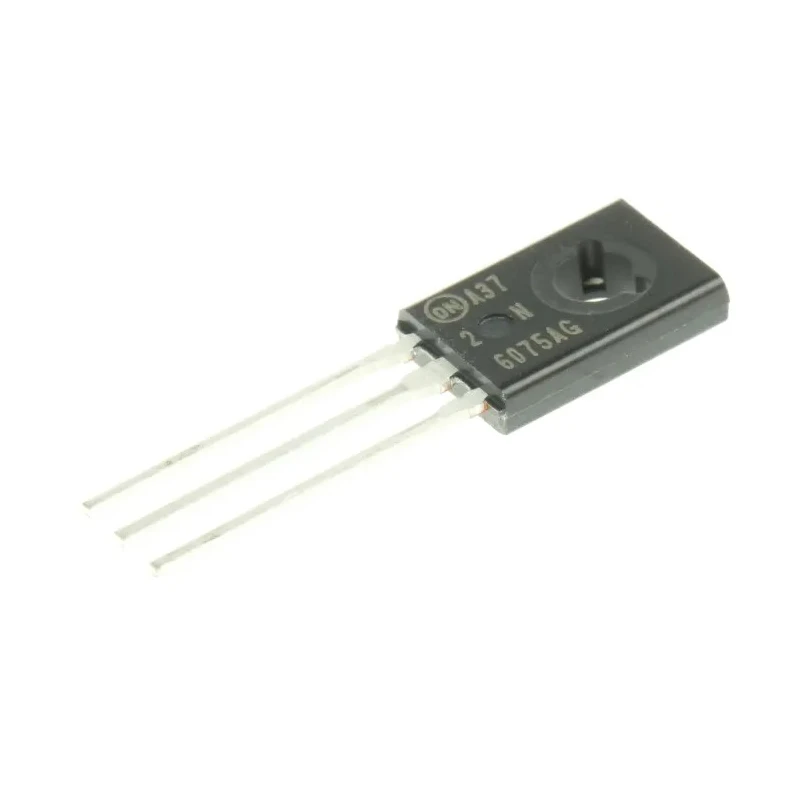

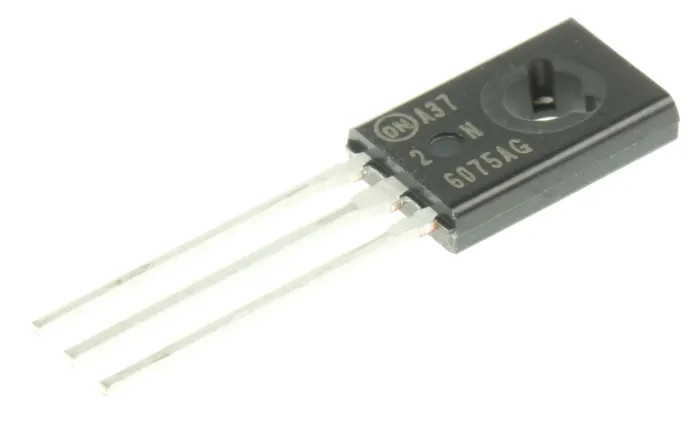

Littelfuse TRIAC Through Hole 3-Pin 600 V Gate Trigger 2.5 V 2N6075AG

Free Delivery in India | Lowest Global Shipping Charges

Littelfuse TRIAC Through Hole 3-Pin 600 V Gate Trigger 2.5 V 2N6075AG

Name: Littelfuse TRIAC Through Hole 3-Pin 600 V Gate Trigger 2.5 V 2N6075AG
Brand: LITTELFUSE
SKU: 196891
Price: 0.96 USD
Availability: InStock



Category TRIAC Brand LITTELFUSE Condition New

Specifications

Country of Origin	India
Brand	Littelfuse
Height	11.04mm
Length	7.74mm
Model	2N6075AG
Mount Type	Through Hole
Configuration	Single
Maximum Operating Temperature	110°C
Package Type	TO-225
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	3
Rated Average On-State Current Irms	4A
Repetitive Peak Reverse Voltage VDRM	600V
Surge Current Rating	30A
Maximum Gate Trigger Current Igt	10mA
Maximum Holding Current Ih	15mA
Maximum Gate Trigger Voltage Vgt	2.5V
Peak On-State Voltage	2V
Repetitive Peak Off-State Current	0.01mA

Key Features

The device is mounted using Through Hole TO-225 package style.
It supports a rated average on-state current of 4A.
Maximum gate trigger current is 10 mA, with a trigger voltage of 2.5 V.
Surge current rating is 30A and peak on-state voltage is 2V.
Operating temperature ranges from -40°C to 110°C, suitable for varied industrial environments.
The product adheres to RoHS standards, ensuring compliance with environmental directives.
The TRIAC is single configuration with 3 pins for straightforward circuit design.
Maximum holding current is 15mA, with repetitive peak reverse voltage of 600 V.

Product Description

Littelfuse 2N6075AG is a high-quality through hole TRIAC semiconductor component designed to control AC power in various industrial and electronic applications. Featuring a 3-pin TO-225 package, this TRIAC offers robust switching capabilities with a rated average on-state current of 4A and a surge current rating of 30A.

Its gate trigger voltage of 2.5 V and maximum gate trigger current of 10 mA enable reliable activation with minimal power input. The device supports repetitive peak reverse voltages up to 600 V, making it suitable for demanding electrical environments and load control.

The compact dimensions, with a height of 11.04 mm and length of 7.74 mm, allow ease of mounting on PCBs while maintaining space efficiency. The operating temperature range from -40°C to 110°C ensures reliable performance under diverse thermal conditions.

This TRIAC is RoHS compliant, supporting environmental safety standards. Its single configuration and 3-pin design provide straightforward implementation in AC switching circuits for industrial automation, home electronics, and power control.

The device is mounted in a through hole TO-225 package. Rated average on-state current is 4A for reliable current handling. Maximum gate trigger current is low at 10mA, facilitating efficient triggering. Supports repetitive peak reverse voltage of 600V for robust application.

Surge current capability up to 30A ensures circuit protection against spikes. Compact size with 11.04mm height and 7.74mm length for ease of integration. Operating temperature range from -40°C to 110°C for versatile environment use.

Complies with RoHS standards, facilitating eco-friendly electronics manufacturing. Peak on-state voltage of 2V minimizes power loss during operation. Maximum holding current is 15mA, stabilizing device operation.

Ideal for industrial, electronic component assemblies, and power control applications requiring a reliable TRIAC device. Explore EnvMart for more Littelfuse semiconductor products and TRIAC solutions.
