Siretta Quad Band GSM GPRS 3G Puck Omni-Directional Antenna 2.5m Cable SMA Male Connector TANGO27/2.5M/SMAM/S/S/17

Free Delivery in India | Lowest Global Shipping Charges

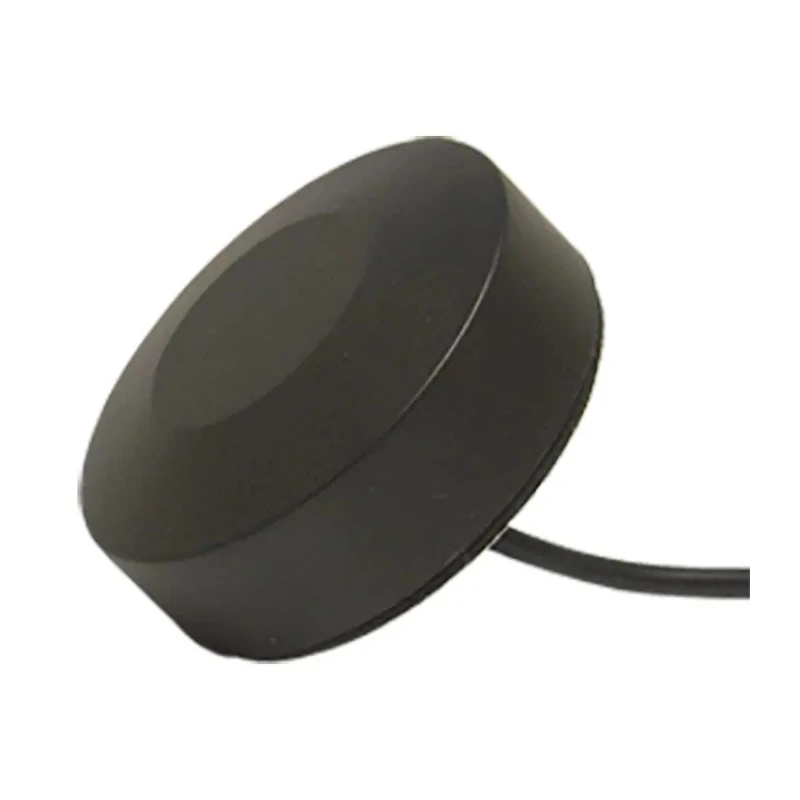

Siretta Quad Band GSM GPRS 3G Puck Omni-Directional Antenna 2.5m Cable SMA Male Connector TANGO27/2.5M/SMAM/S/S/17

Name: Siretta Quad Band GSM GPRS 3G Puck Omni-Directional Antenna 2.5m Cable SMA Male Connector TANGO27/2.5M/SMAM/S/S/17
Brand: Siretta
SKU: 196779



Category Passive Components Brand Siretta Condition New

Specifications

Country of Origin	India
Diameter	46 mm
Brand	Siretta
Operating Temperature	-30 to +65°C
Height	15 mm
Model	TANGO27/2.5M/SMAM/S/S/17
Connector Type	SMA
Series	Tango 27
Gain	2.16dBi
Lead Length	2.5m
Protection	IP67 rated
Impedance	50 Ω
Standards/Approvals	RoHS
Connector Gender	Male
Minimum Frequency	850MHz
Antenna Physical Form	Puck
Antenna Mount Type	Through Hole/Bolted
Directivity	Omni-Directional
Number of Bands	4
VSWR	≤ 2.1
Quad Band GSM/GPRS	850, 900, 1800, 1900 MHz
3G	2100 MHz
Power handling	35 W

Key Features

The puck-shaped antenna is IP67 rated for protection against extreme environments.
The antenna supports quad band frequencies including GSM 850, 900, 1800, 1900 MHz and 3G 2100 MHz.
It features a gain of 2.16 dBi and low VSWR of ≤ 2.1 for efficient signal transmission.
Constructed with durable ABS casing and rubber seal gasket for weather resistance.
Includes a 2.5-meter lead with SMA male connector for easy installation.
Operates reliably between -30 to +65 degrees Celsius.
The antenna’s diameter is 46 mm and height is 15 mm, suitable for multiple mounting surfaces.
It has a power handling capacity of 35 W and 50 ohm impedance.

Product Description

Siretta TANGO27/2.5M/SMAM/S/S/17 is a quad band GSM/GPRS/3G omni-directional puck antenna designed for reliable mobile communication. It operates across frequencies 850, 900, 1800, 1900 MHz for GSM/GPRS and 2100 MHz for 3G networks. This compact antenna features a puck physical form with a diameter of 46 mm and height of 15 mm, making it suitable for mounting on diverse surfaces.

The antenna has an IP67 protection rating ensuring durability and resistance to adverse weather conditions. It is housed within a robust ABS casing with a rubber seal gasket that shields the internal components effectively. Its mounting is facilitated through a screw thread and adhesive base providing secure installation options.

Equipped with a 2.5-meter RG174 coaxial cable terminating in a male SMA connector, it allows straightforward connection to devices. The antenna’s gain is 2.16 dBi, offering enhanced signal reception and transmission quality with a VSWR of less than or equal to 2.1.

The device withstands temperatures from -30 to +65 degrees Celsius and supports a power handling capability of 35 W operating at an impedance of 50 ohms. This makes it suitable for industrial, commercial and telecommunications applications requiring robust wireless connectivity in challenging environments.

The puck shape and compact size allow for easy integration in limited space installations. The durable housing and IP67 rating ensure consistent performance outdoors and indoors. The 2.5-meter cable with SMA connector offers flexible placement relative to devices.

Supports quad band frequencies enabling broad network compatibility. Reliable operation over a wide temperature range. Easy mounting via through hole/bolted or adhesive base. Ideal for GSM, GPRS, 3G mobile communications across various sectors.

Overall, the Siretta TANGO27/2.5M/SMAM/S/S/17 puck omni-directional antenna is a highly versatile and dependable solution for enhancing mobile wireless signals. Its rugged design and performance specifications meet the demands of industrial, telecommunications, and commercial applications.
