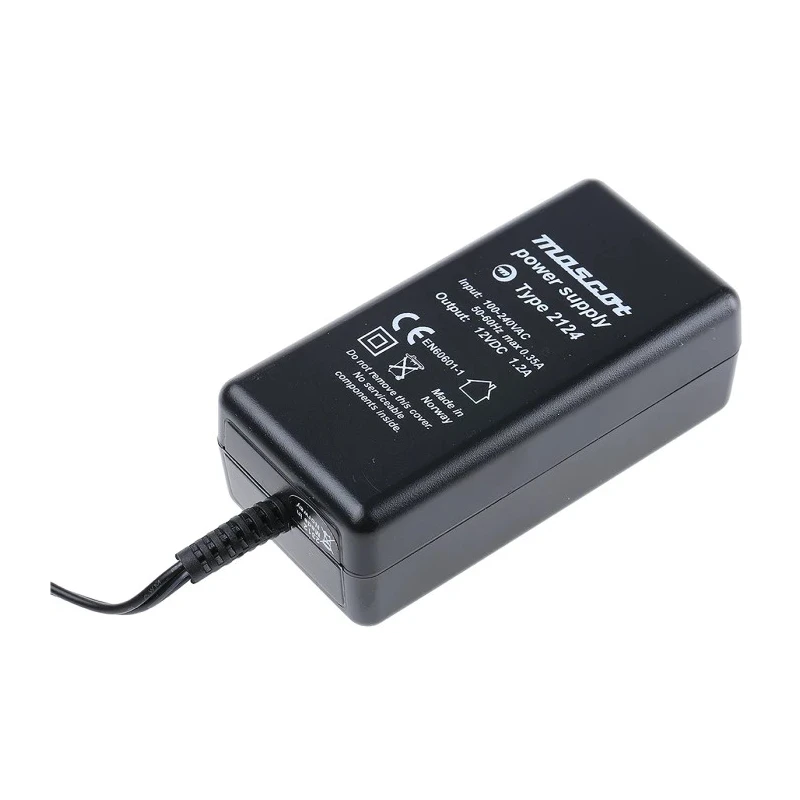

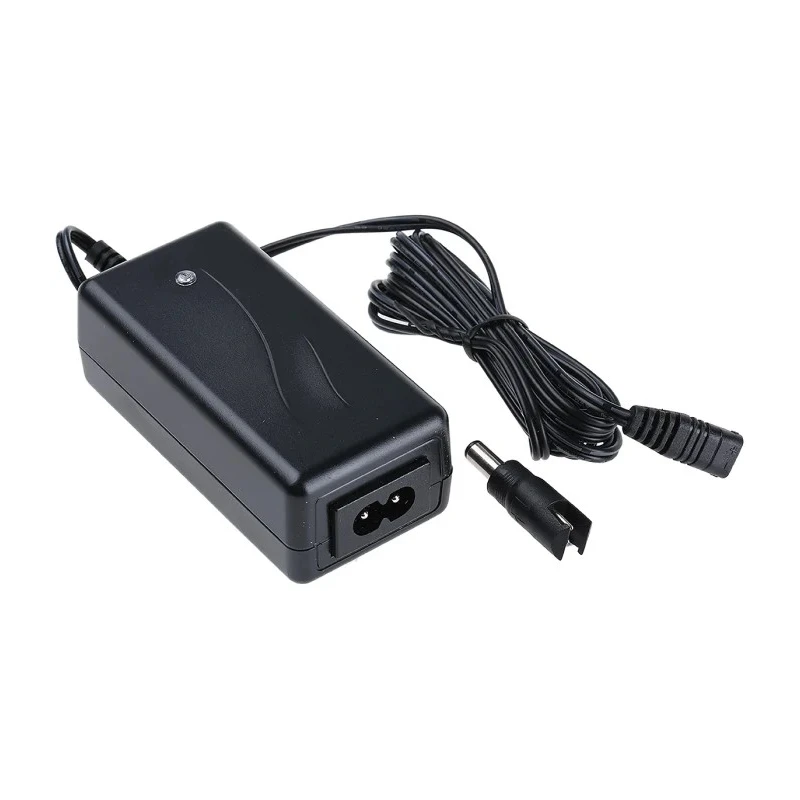

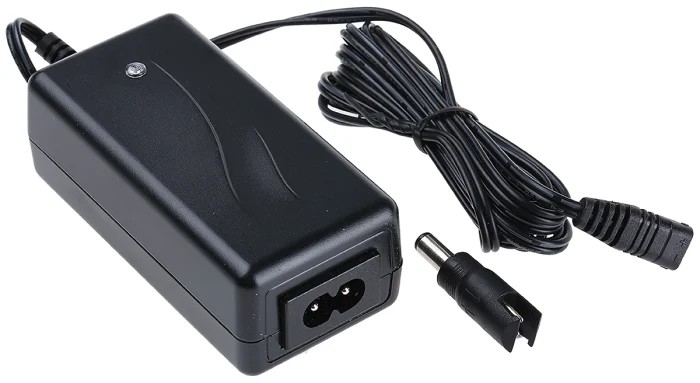

Mascot 15W 12V DC AC/DC Adapter with 2.1 x 5.5 x 12 mm and 2.5 x 5.5 x 12 mm Female Coaxial Plug Snap Lock, Model 2124000043

Mascot 2124000043 AC/DC Adapter is a switch mode desktop power supply designed for applications requiring 12V DC regulated power with 15W output. The power supply features a 2-pin IEC320 input connector and provides a single output using female coaxial plugs with snap lock locking mechanism for reliable connections. It offers two interchangeable output connector options: 2.1 x 5.5 x 12 mm and 2.5 x 5.5 x 12 mm female coaxial plugs.

The adapter features a cable length of approximately 1.8 meters equipped with polarity inverter function to accommodate various device configurations. It supports a wide input voltage range of 100V AC to 240V AC and draws an adapter current of 1.2A. The fully regulated output ensures load regulation within ±1%, maintaining consistent power delivery for sensitive electronics.

The unit operates with an efficiency of 83% and includes protections against over-voltage and short circuits, ensuring safe operation in industrial, laboratory, or medical environments. It meets the EN 60601-1-2 medical safety standard and related approvals such as UL 2601-1, making it suitable for medical-grade equipment power supply needs.

With operating temperatures between -20°C and 40°C, this compact adapter (dimensions 90 x 45 x 32 mm) is suitable for a variety of electrical and electronic applications including laboratory instruments, industrial control devices, and consumer electronics requiring stable 12V DC power.

Features two female coaxial plugs with snap lock for secure connection. Includes 2.1 x 5.5 x 12 mm and 2.5 x 5.5 x 12 mm output connector types. Cable length approximately 1.8 meters with polarity inverter function. IEC 320 2-pin input connector with 100-240V AC input voltage range.

Fully regulated output with ±1% load regulation ensuring stability. Over-voltage and short circuit protection for safe operation. Medical safety approvals (EN 60601-1-2, UL 2601-1) for external use. Compact design suitable for desktop and industrial applications.

Efficiency rating of 83% reduces power loss during operation. Operating temperature range -20°C to 40°C for use in varied environments.

This Mascot AC/DC Adapter is ideal for powering a wide range of equipment in industrial, laboratory, medical, and commercial settings where reliable and medically compliant 12V DC power is required. Explore more AC/DC power supply solutions from Mascot on EnvMart for professional applications.
