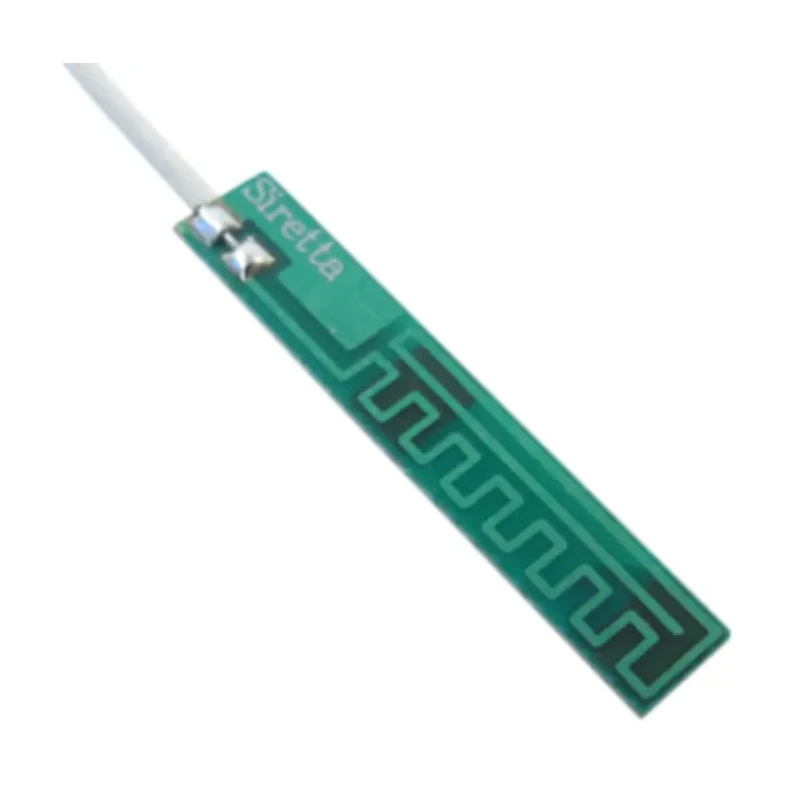

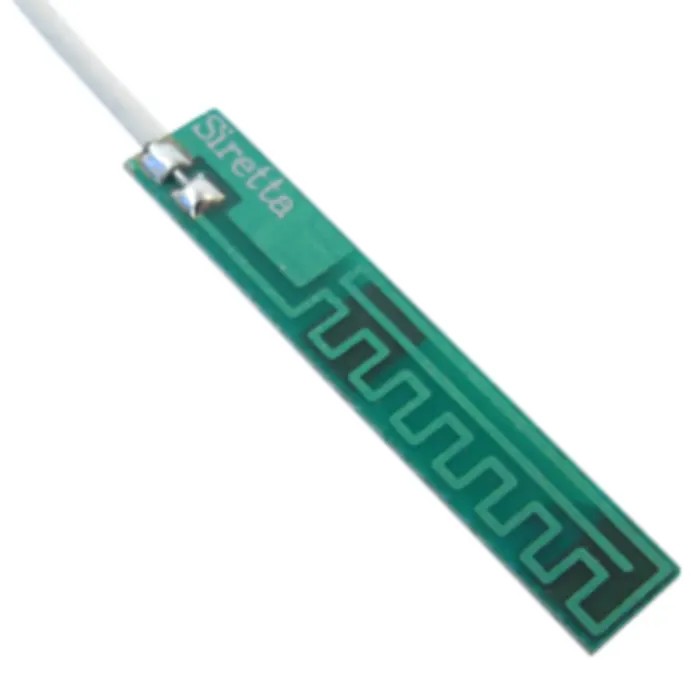

Siretta PCB Multi-Band Antenna with IPEX Connector, 824 MHz to 2.17 GHz ECHO1A/0.2M/IPEX/S/S/11

Siretta ECHO1A/0.2M/IPEX/S/S/11 is a high-performance PCB multi-band antenna designed for GSM, GPRS, 3G, and ISM applications operating between 824 MHz and 2.17 GHz. Its compact footprint of 35 mm length, 6 mm width, and 0.6 mm height makes it ideal for space-constrained electronic devices requiring reliable wireless connectivity.

The antenna features an omni-directional radiation pattern with linear polarization, providing stable gain of 3.66 dBi across four supported bands. This antenna is internally mounted via a PCB and connects through a 0.2 meter long cable terminating in an IPEX connector, facilitating easy integration into embedded systems.

Supporting quad-band GSM frequencies of 850, 900, 1800, and 1900 MHz, as well as 3G UMTS 2100 MHz and ISM frequencies of 868 MHz and 915 MHz, the Echo 1A antenna covers a broad range of wireless standards. It provides an impedance of 50 ohms and operates reliably over a temperature range from -40°C to +85°C, ensuring robust performance in diverse environments.

Constructed with PCB internal design and compliant with RoHS standards, this antenna balances compactness with technical sophistication. Its 1/4 wave dipole radiating element ensures effective signal transmission within the specified frequency bands.

This product is manufactured in Taiwan, Province Of China, affirming quality and consistency for industrial and commercial applications including telecommunications, IoT devices, and embedded wireless systems.

Operates over multiple frequency bands from 824 MHz up to 2.17 GHz. Compact PCB antenna design with dimensions 35 mm x 6 mm x 0.6 mm. Omni-directional linear polarized antenna with 3.66 dBi gain. Equipped with a 0.2 meter lead cable and IPEX connector for internal mounting.

Compatible with GSM bands 850, 900, 1800, 1900 MHz and 3G 2100 MHz. Suitable for ISM band frequencies at 868 MHz and 915 MHz. High impedance of 50 ohms ensures efficient signal transmission. Designed for use in environments with operating temperatures from -40°C to +85°C.

RoHS compliant and manufactured in Taiwan, Province Of China. Explore more Multi-Band Antennas and advanced electronic components suitable for a wide range of industrial and laboratory applications at EnvMart.
