| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQW15AN |
| Depth | 0.5mm |
| Packaging | Paper Tape |
| Series | LQW15AN |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN |
| Core Material | Non-Magnetic Ceramic |
| Inductance | 0.033μH |
| Standards/Approvals | RoHS |
| Package/Case | 1005 |
| Maximum DC Current | 260mA |
| Pin Count | 2 |
| Maximum DC Resistance | 630mΩ |
| Inductance Tolerance | ±2 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 3.2GHz |
| Minimum Quality Factor | 25 |
| Inductor Construction | Wirewound |

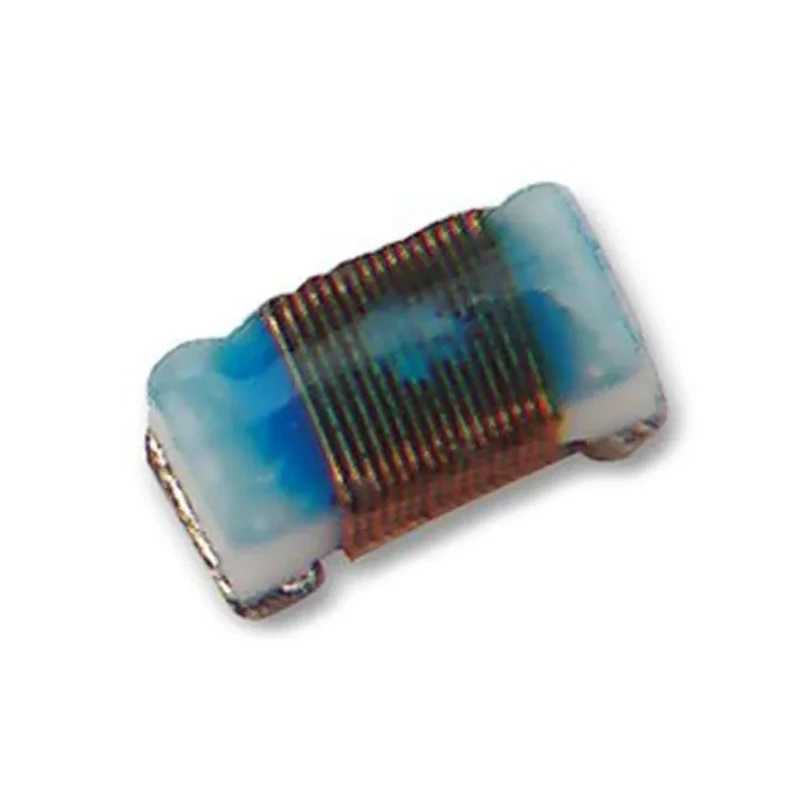

Murata LQW15AN wirewound surface mount inductor offers a precise inductance of 0.033μH with a tight tolerance of ±2%, supporting a maximum DC current of 260mA. This component is housed in a compact 1005 (1.0mm × 0.5mm × 0.5mm) package utilizing a non-magnetic ceramic core, enhancing performance in sensitive high-frequency applications.
Its solder termination style enables reliable surface mount assembly, with a maximum operating temperature rating of 125°C and a minimum of -55°C, making it suitable for demanding electronic environments. The inductor features a low maximum DC resistance of 630mΩ and a high self-resonant frequency of 3.2GHz, targeting VHF and UHF applications including Bluetooth, GSM, and WLAN devices.
The LQW15AN series inductors by Murata are RoHS compliant and molded for enhanced durability. The product is delivered on paper tape packaging facilitating efficient automated machine insertion in manufacturing.
This surface mount inductor is widely used in electronic components assemblies within industrial, telecommunications, and consumer electronics industries. Compact 1005 case dimensions ensure space-saving on PCB designs. Non-magnetic ceramic core reduces magnetic interference for signal integrity.
High-frequency resonance characteristics optimize telecommunication equipment performance. Tight inductance tolerance of ±2% for precision circuit designs. Suitable for automated surface mount technology (SMT) assembly lines.
Compliant with RoHS environmental standards. Wide operating temperature range supports diverse application environments. Designed specifically for wireless communication electronic circuits. Explore more Surface Mount Inductors and related electronic components in the Electronics & Electricals category at EnvMart.
