| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQG15HN |
| Depth | 0.5mm |
| Packaging | Paper Tape |
| Series | LQG15HN |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Non-Magnetic Ceramic |
| Inductance | 0.033μH |
| Package/Case | 1005 |
| Maximum DC Current | 200mA |
| Pin Count | 2 |
| Maximum DC Resistance | 670mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 1500MHz |
| Minimum Quality Factor | 8 |
| Inductor Construction | Multilayer |

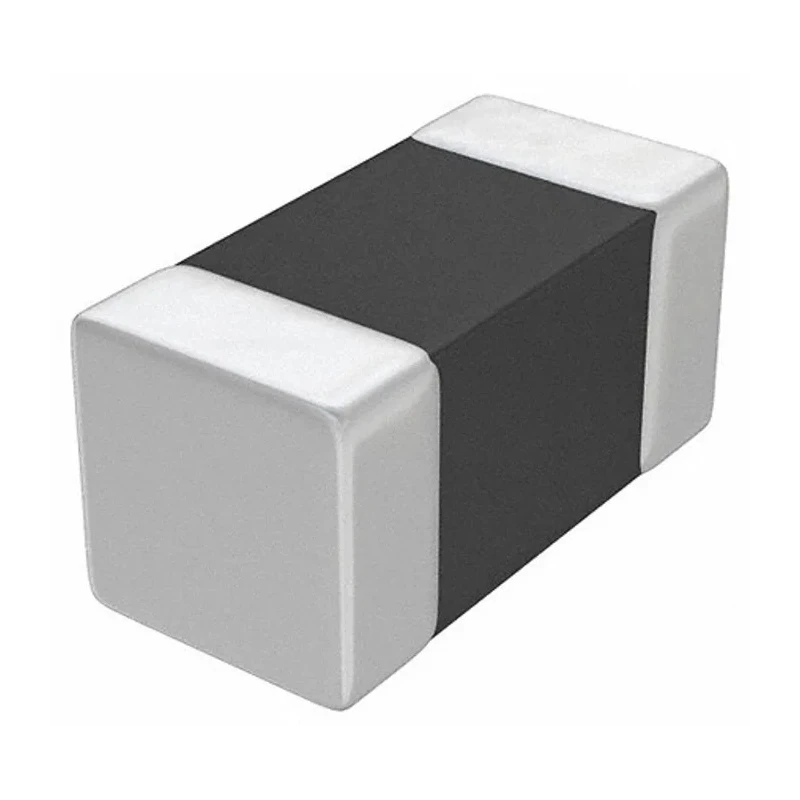

Murata LQG15HN wirewound surface mount inductor is engineered with a non-magnetic ceramic core and multilayer construction, offering stable inductance of 0.033µH in a compact 1005 package size.
Its maximum DC current rating of 200mA and maximum DC resistance of 670mΩ enable efficient current handling with low losses. The inductor operates reliably across -55°C to 125°C temperatures, making it suitable for demanding applications.
The solder termination style facilitates straightforward PCB mounting, and the component dimensions of 1mm length, 0.5mm height, and 0.5mm depth make it ideal for space-constrained electronic devices.
Featuring a maximum self-resonant frequency of 1500MHz and a minimum quality factor of 8, this inductor performs excellently in high-frequency circuits such as RF circuit matching, WLAN networks, chokes, and mobile communication equipment resonance.
Its multilayer monolithic structure provides excellent balance of rated current, size, and inductance tolerance, ensuring stability at high frequencies and high reliability. Applications span across industrial electronics, telecommunications, consumer electronics, and other high-frequency circuit designs.
This surface mount inductor features a multilayer construction for balanced performance. Maximum DC current rating is 200mA. Inductance tolerance is ±5% ensuring precise electrical characteristics. Solder termination style supports ease of mounting on PCBs.
Compact dimensions of 1mm length, 0.5mm height and 0.5mm depth. Maximum DC resistance is 670mΩ aiding in power efficiency. Designed to operate from -55°C to 125°C temperature range. Maximum self-resonant frequency is 1500MHz suitable for high-frequency applications.
Minimum quality factor of 8 ensures effective inductance quality. Non-magnetic ceramic core enhances high frequency stability. This Murata LQG15HN surface mount inductor is a reliable choice for engineers prioritizing performance, size, and frequency stability.
Explore more Surface Mount Inductors and related products at EnvMart for your industrial and commercial electronics needs.
