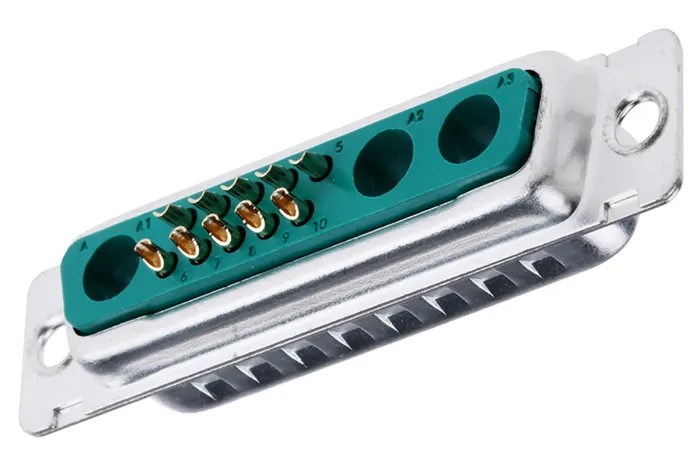

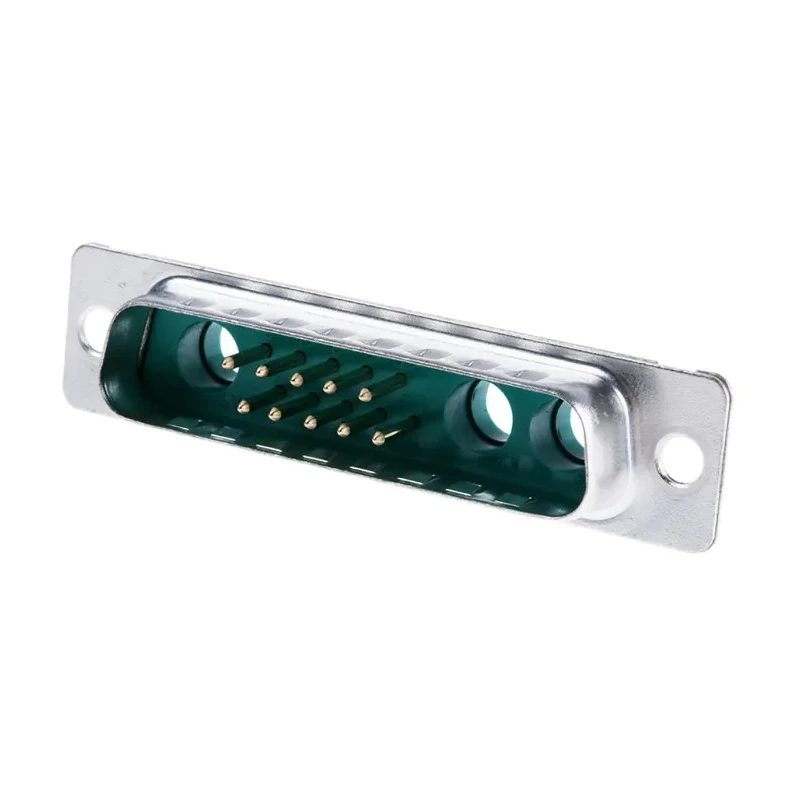

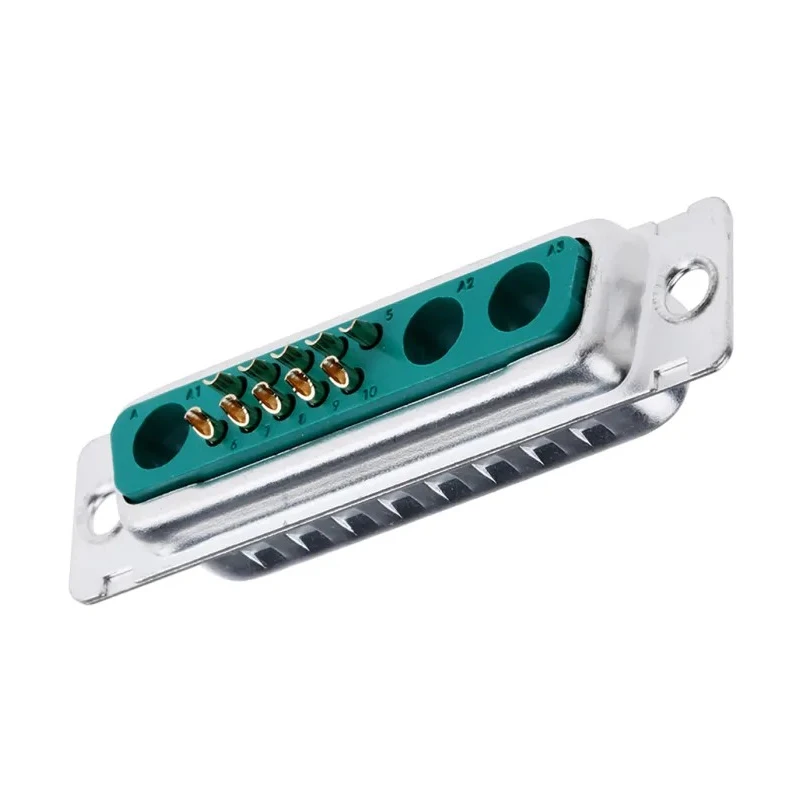

Amphenol Communications Solutions DW 13 Way Straight Panel Mount D-Sub Connector Male DB13W3PA00LF

Amphenol Communications Solutions DB13W3PA00LF is a 13 Way Straight Panel Mount D-Sub Connector Male designed for mixed signal and power connections in demanding industrial and telecom markets. The connector features a robust steel housing with gold over nickel plating on contacts to ensure excellent conductivity and corrosion resistance.

This panel mount connector has straight orientation and solder termination, making it ideal for secure cable connections on panels. Operating voltage is rated at 300V with a current capacity of 7.5A, suitable for various industrial and commercial electrical interfaces. The operating temperature range from -55°C to 125°C allows use in extreme environmental conditions.

The DW series connectors support mixed contacts specifically for combining signal and power requirements in a single interface. The model DB13W3PA00LF uses a D-Sub shell size B and male connector gender to provide compatibility with corresponding female connectors. These connectors have wide use in military equipment, industrial machinery, commercial electronics, and computer hardware connections.

The gold over nickel contact plating provides enhanced durability and consistent electrical performance. The steel housing ensures mechanical strength and protection against physical damage. Solder termination ensures secure and permanent cable attachment to the connector contacts.

This connector is not supplied with accessories and requires separate ordering of contacts rated for higher current if needed. It is compliant with no specific standards or approvals but designed with industrial quality in mind.

Features 13 contacts for signal connectivity with a current rating of 7.5A. Panel mount orientation with straight connector design for secure installation. Constructed with a steel housing and gold over nickel contact plating for durability.

Compatible with operating voltages up to 300V and temperature ranges from -55°C to 125°C. Termination type is solder, suitable for reliable and robust soldering applications. Male gender connector type with D-Sub shell size B providing mixed signal and power connections.

DW series is specially designed for mixed power and signal contacts in harsh environments. Suitable for military, industrial, commercial, and computer interfacing applications. Contact plating and material ensure corrosion resistance and long-lasting performance.
