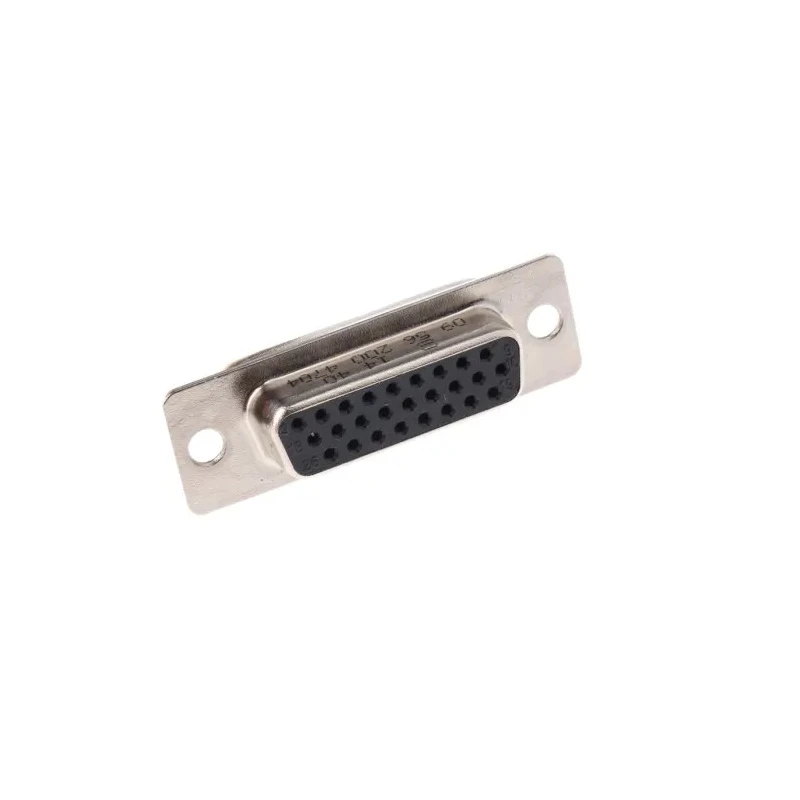

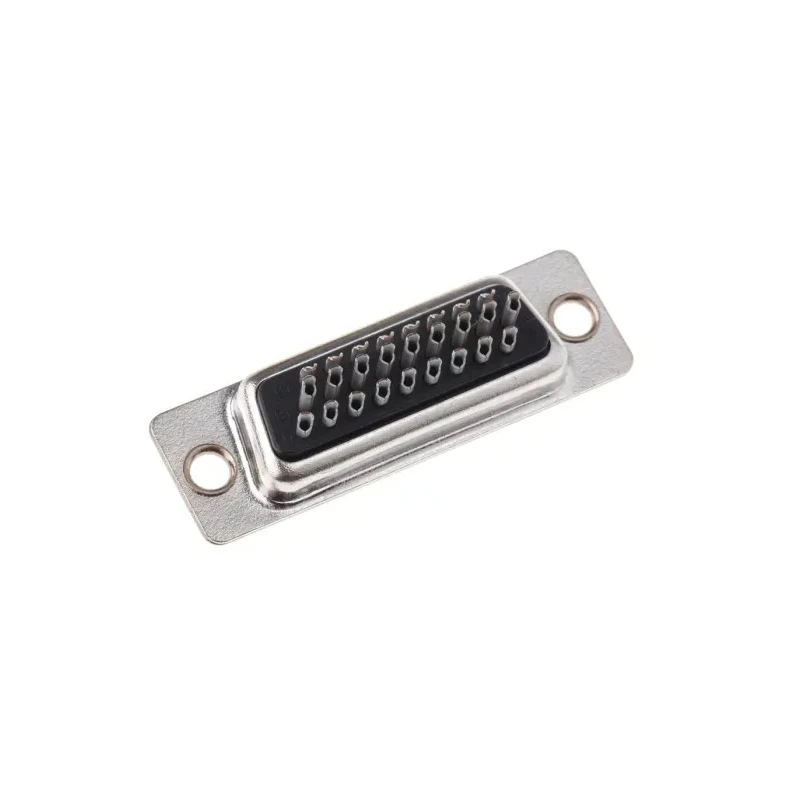

HARTING D-Sub 26 Way Straight 2.29 mm Pitch Cable D-Sub Connector 09562004704
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.29mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | A |
| HARTING D-Sub 26 Way Straight 2.29 mm Pitch Cable D-Sub ConnectorBrand | HARTING |
Key Features
- Provides 26 female contacts with gold-plated copper alloy for reliable signal transmission.
- Houses a steel casing ensuring mechanical protection and durability.
- Rated for 1000V and 2A current capacity supporting demanding electronic circuits.
- Operates within temperature range from -55°C to 105°C, suitable for harsh environments.
- Features solder termination for secure cable mounting with straight orientation.
- Complies with DIN 41 652 part 2 and guarantees minimum 50 mating cycles performance.
- Compact 2.29 mm pitch spacing suitable for high-density connector assemblies.
- Designed and manufactured in China, meeting industry standards.
Product Description
HARTING 09562004704 D-Sub Connector 26 Way Straight 2.29 mm Pitch is a high-density cable-mounted connector optimized for industrial, electronic, and manufacturing applications requiring durable and reliable connectivity solutions.
This connector features 26 female contacts made from copper alloy with gold plating, ensuring excellent conductivity and resistance to corrosion. The steel housing adds robust mechanical protection against physical stress and environmental factors.
Its electrical specifications include a voltage rating of 1000V and current rating of 2A, making it suitable for various low power applications in automation, control systems, and electronic devices.
Designed for a solder termination type and straight cable orientation, this connector allows for efficient assembly and reliable cable connections. It meets performance level 3 standards under DIN 41 652 part 2, guaranteeing durability with a minimum of 50 mating cycles tested without gas emission.
The pitch of 2.29 mm between contacts supports high-density configurations often required in modern electronic equipment and control panels. 26 female contacts with gold plating for superior electrical performance. Robust steel housing resistant to mechanical and environmental challenges.
Rated for 1000V and 2A, suitable for low voltage electronic applications. Solder termination enables secure cable mounting and easy assembly. Compliance with DIN standards ensures reliable industrial usage. Operating temperature range from -55°C to 105°C for versatile environment compatibility.
Compact 2.29 mm pitch for high-density wiring and connector setups. Manufactured in China following rigorous quality standards.
This connector is ideal for industries such as electronics manufacturing, automation systems, machinery assembly, and telecommunications infrastructure. Its design supports enhanced production efficiency and reliable operation under demanding conditions.
Explore more products in the D-Sub Connector category at EnvMart for a wide selection of industrial-grade electronic connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector is rated for a voltage of 1000V, making it suitable for various low power applications.
It features 26 female contacts, which are made from copper alloy with gold plating for improved conductivity.
The current capacity of this connector is rated at 2A, suitable for low voltage electronic applications.
The pitch size of the contacts is 2.29 mm, allowing for high-density connector assemblies.
This connector uses solder termination, which enables secure cable mounting and efficient assembly.
The housing is made of steel, while the contacts are made from copper alloy with gold plating for enhanced electrical performance.
It operates within a temperature range of -55°C to 105°C, making it suitable for harsh environments.
This connector is designed to guarantee a minimum of 50 mating cycles, ensuring durability in industrial applications.
It complies with DIN 41 652 part 2, ensuring reliable performance in industrial usage.
This model features a straight orientation, which is typical for cable-mounted connectors.
This connector is manufactured in China, adhering to rigorous quality standards.
It is ideal for applications in electronics manufacturing, automation systems, machinery assembly, and telecommunications infrastructure.
